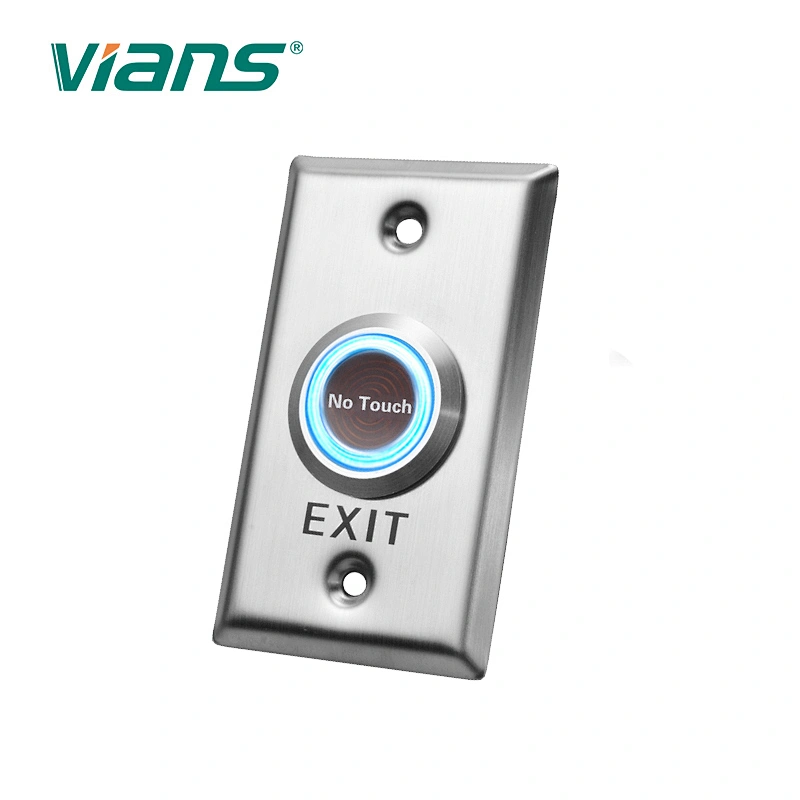

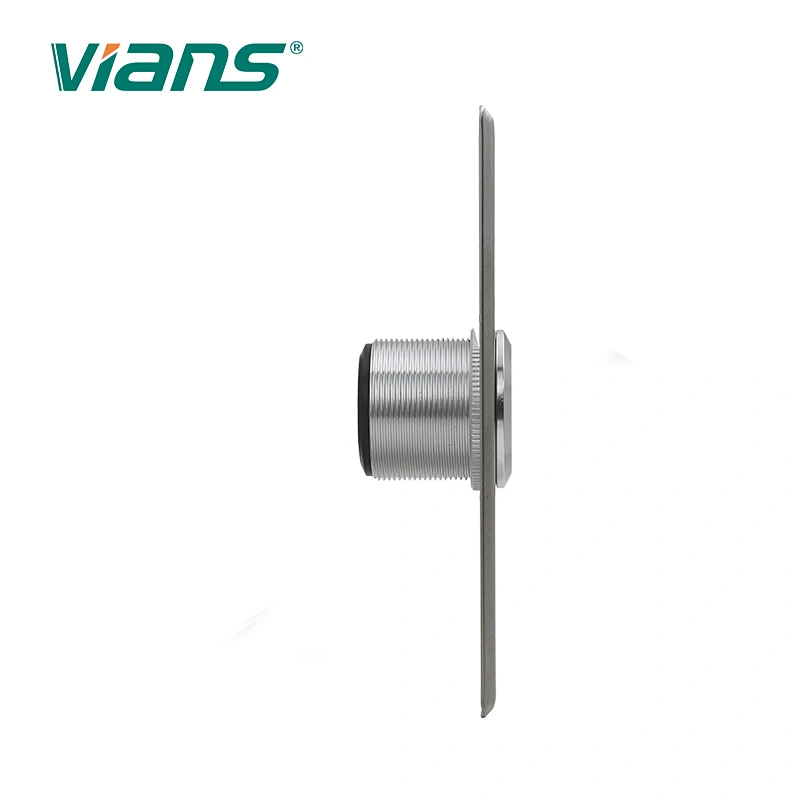

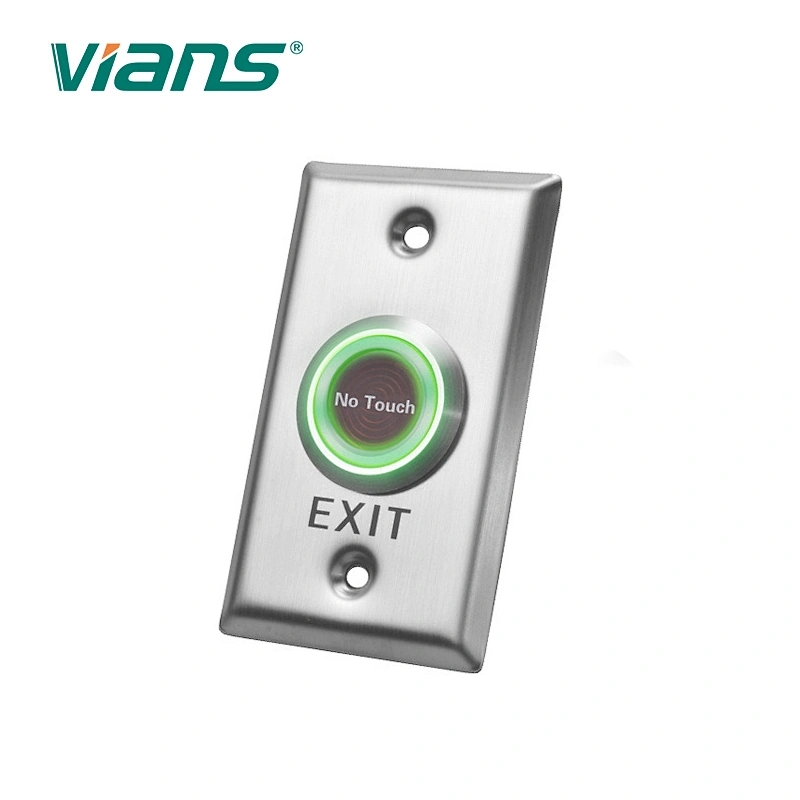

LED Indicated Touchless Infrared Sensor Switch Exit Push No Touch Button

LED Indicated Touchless Infrared Sensor Switch Exit Push No Touch Button

Model NO.: TK-942
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:VIANS
Model Number:TK-942
Max. Current:3A
Max. Voltage:12VDC
Mechanical Life:1000000, 500000 tested
Product Name:Infrared Exit Button
Material:Stainless Steel
Electrical performance:3A@12VDC
Plate Thickness:0.8mm
Input Voltage:DC12V
Output Contact:NONCCOM
Working Temperature::10℃-55℃ (14-131F)

LED Indicated Touchless Infrared Sensor Switch Exit Push No Touch Button

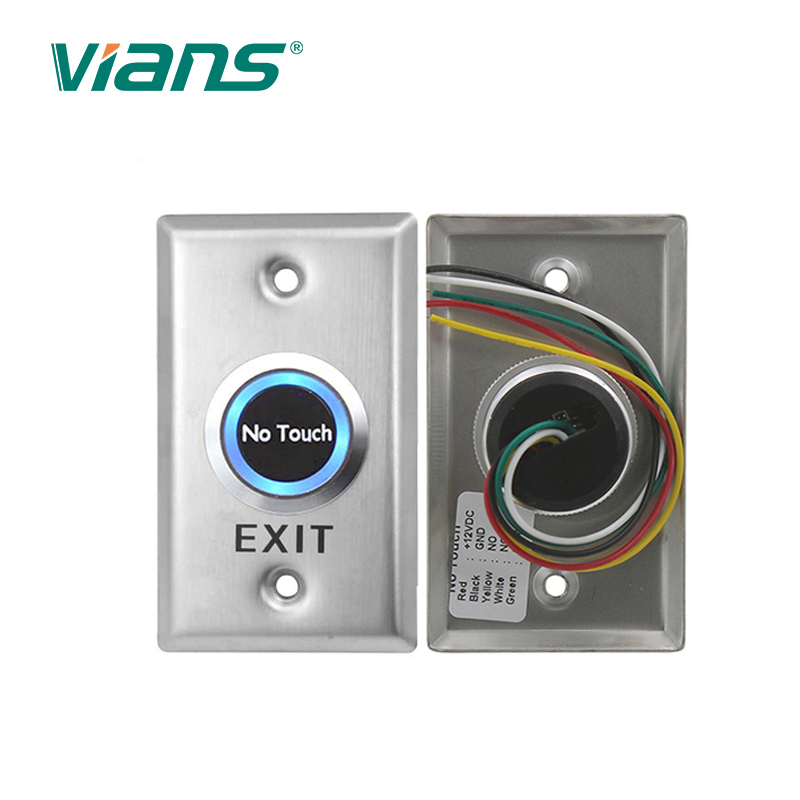

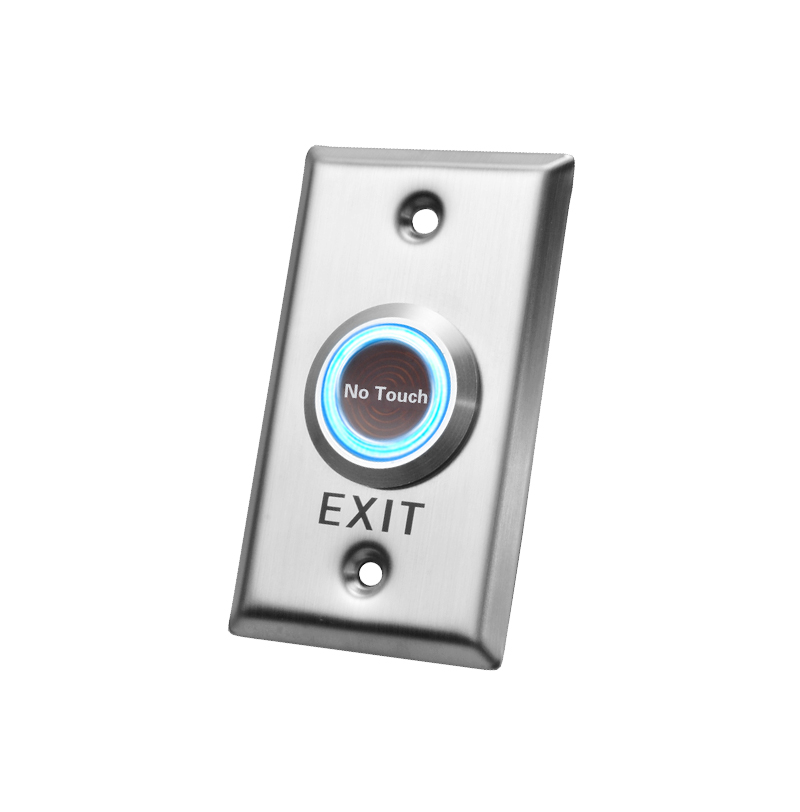

IR Sensor No Touch Touchless exit button is casted by 304 stainless steel. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality.

Technical Parameters:

◆Material: Stainless Steel

◆Plate Thickness: 0.8mm

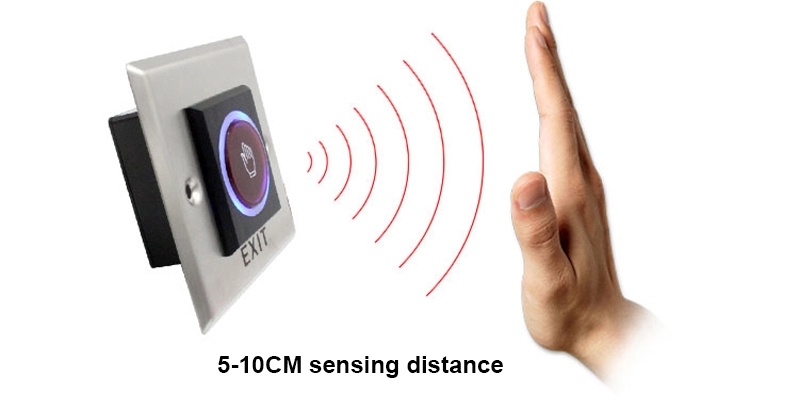

◆Working Distance: 5-10cm

◆Input Voltage: DC12V

◆Electrical performance: 3A@12VDC

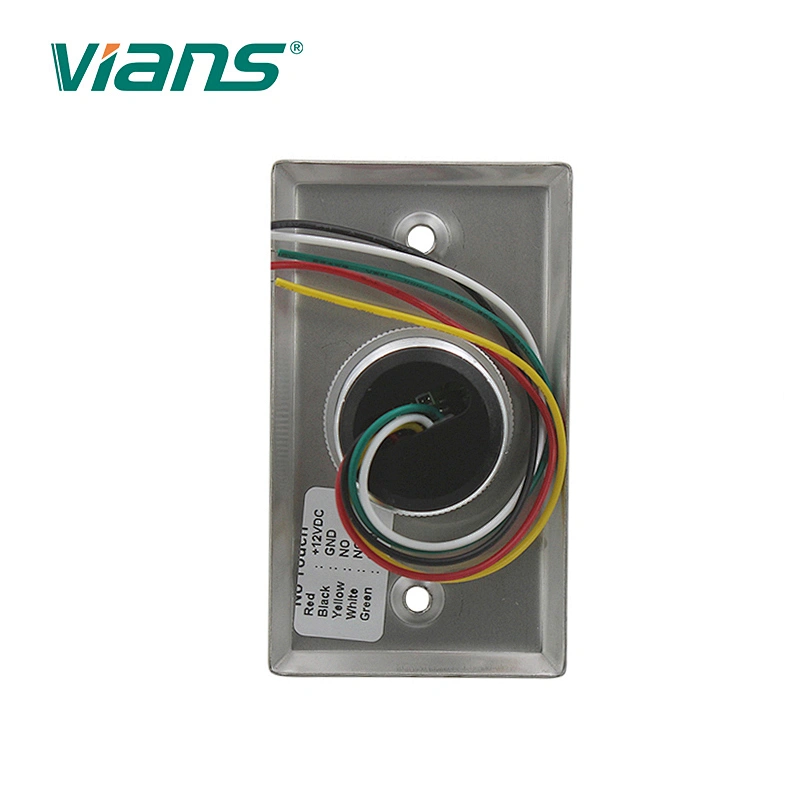

◆Output Contact: NONCCOM

◆Mechanical Life: 500000 tested

◆Suitable for Door: Hollow Door
◆LED Indicator

◆White LED indicator: Power OFF

◆Blue LED indicator: Power ON(standby)

◆Red LED indicator: Power ON(sensation)
◆Working Temperature: -10℃-55℃ （14-131F）

◆Working Humidity: 0-95% ◆Weight: 0.1-0.15kg

◆Packing: 1pc per box, 100pcs per carton

Product Description

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	VIANS
Model Number	TK-946
Warranty	3years
Type	Exit button
Certification	CE,ROHS,FCC
Customized	yes
Sensing Range	5-10CM
Whether the smart	no
Product Name	Infrared Exit Button
Material	Stainless Steel
Working Distance	5-10cm
Electrical performance	3A@12VDC
Mechanical Life	500000 tested
Plate Thickness	0.8mm
Input Voltage	DC12V
Output Contact	NONCCOM
Working Temperature:	10℃-55℃ (14-131F)

Packing & Delivery

50PCS/CARTON

Company Profile

Shenzhen VIANS Technology Co., Ltd. is specialized in R&D and production of access control Products, including SMART cylinder,Smart Handle lock and Electirc locks Automatic door opener, other access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our workers are well trained and can provide very professional work.QC staffs make piece-by-piece checks for all products, our electric locks passed UL certification. our quality can be ensured to meet international Standards. We are proud of our high quality products and first-rate services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for smart AIOT home and access control products in security sector! Vians will be always devoted to offer good quality and new design products, and brings moreconvenient, more secure complete electric locks to the project application to create much morevalue to our customers. We are commit to produce convenient installation, safety and reliableproducts, this is our product conceptions and also commitment to our customers

FAQ

1. who are we?
We are based in Guangdong, China, start from 2020,sell to Domestic Market(52.00%),Mid East(20.00%),South America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Africa(3.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Smart cylinder,Electric locks,Access Control,Automatid door operator,RFID readers

4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
