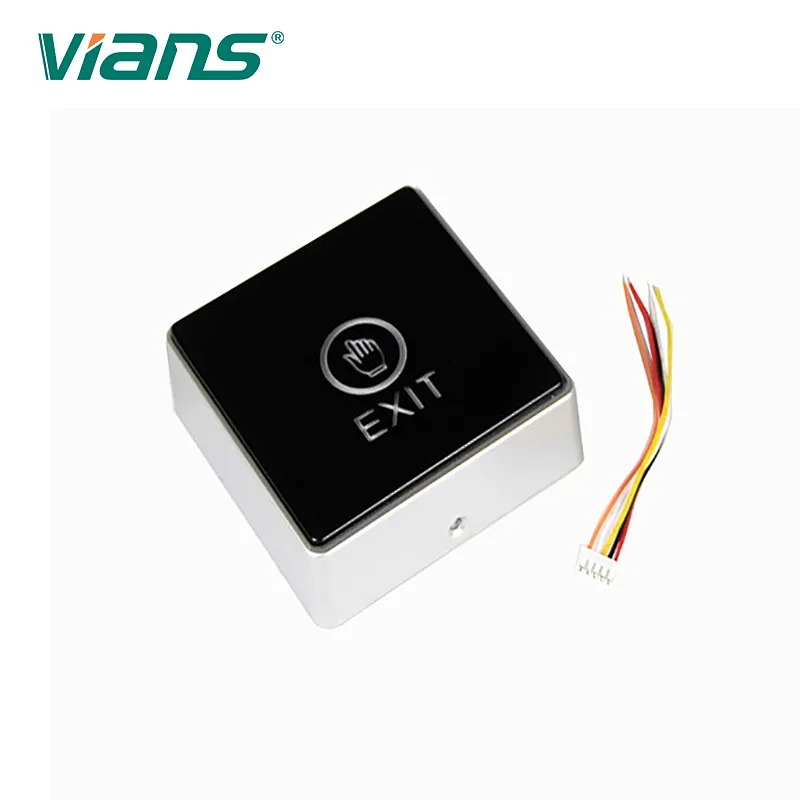

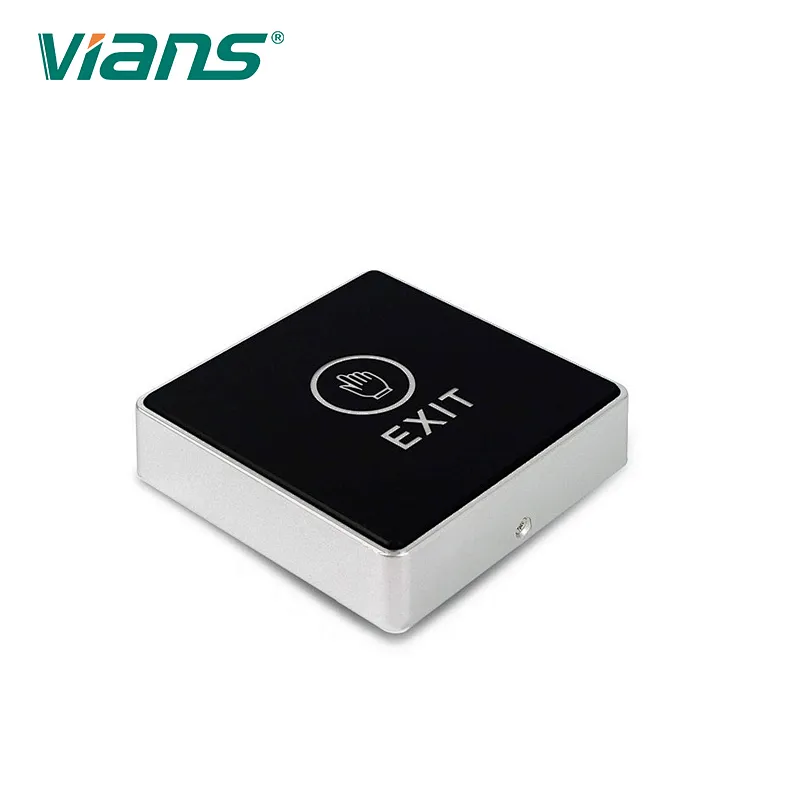

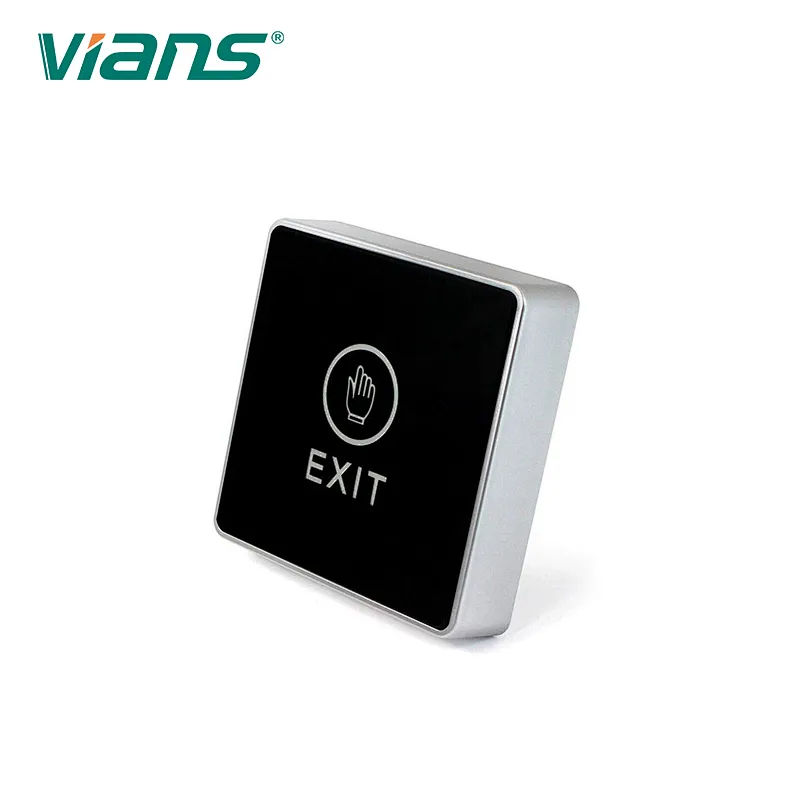

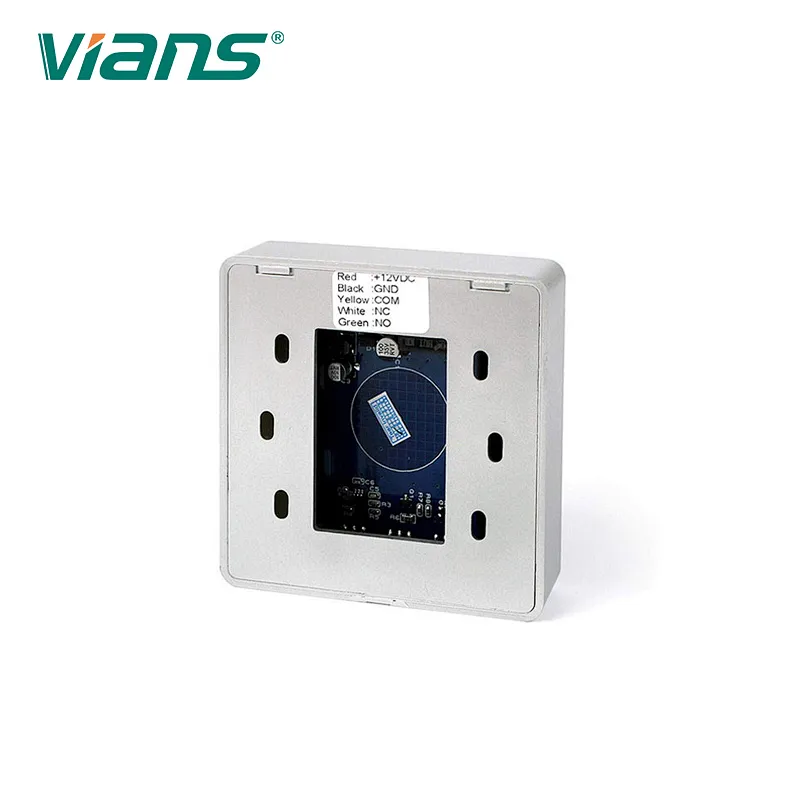

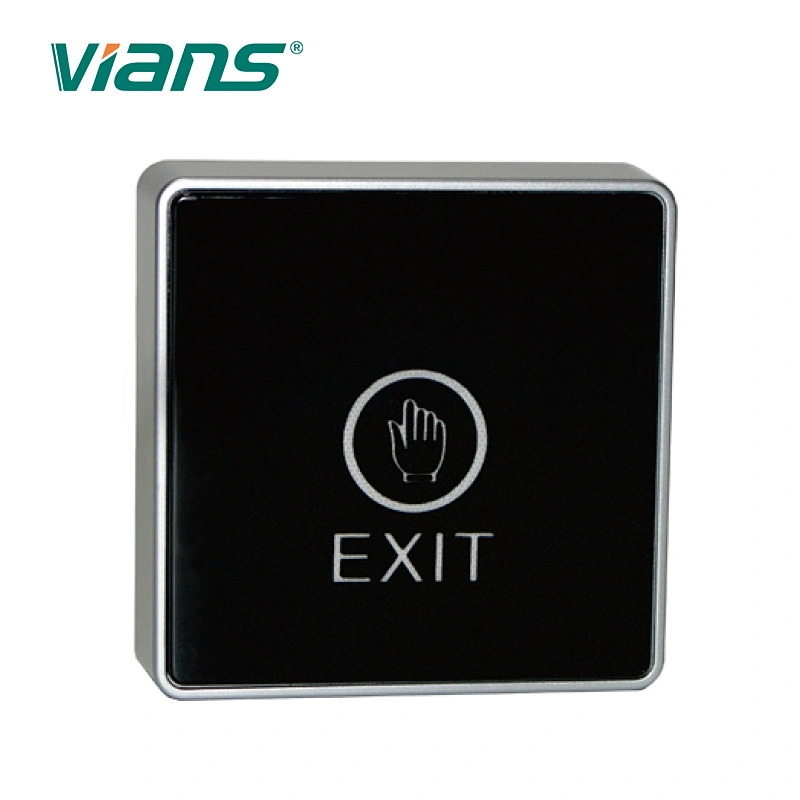

Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button

Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button

Model NO.
TK-913
Minimum order quantity
1 piece
Quantity:
  • Certification:CE/ROHS
  • Whether the smart:Yes
  • Place of Origin:Guangdong, China
  • Brand Name:Vians
  • Model Number:TK-913
  • Protection Level:IP54 IK09
  • Max. Current:3A
  • Max. Voltage:DC36V
  • LED:Yes
  • Product name:Touch Screen Door Exit Button
  • Dimensions:86*86*20mm
  • Material:ABS+Plexiglass Panel
  • Electrical performance:3A@36VDC
  • Special Features:Touch Screen
  • Operating temp:-10~+55 Degree
  • Input Voltage:DC12V
  • Suitable Humidity:0-95% (relative humidity)
  • Output Contact:NONCCOM
  • Signal light:BLUE&GREEN
Products Description
TK-913 12V Touch Switch is an touch sensor switch button with waterproof & dustproof design & LED indicators.It is easy to instal with NO/NC/COM Output.The12V Touch Switch is the Best Choice for Access Control Systems.
Specification
Model Number
TK-913
Product Name
Touch Screen Door Exit Button
Material
ABS Plastic Case
Product size
86Lx86Wx20H (mm)
Supply voltage
12VDC or 24VDC
Contact output
NO / NC / COM
Maximum current:
3A / 125-250VAC
Endurance test:
100,000 times
LED indication:
blue (standby), green (trigger
Packing parameters:
100 pcs / 51 * 46 * 29CM
Recommend Products
About Vians
Our Advantages
Packing & Delivery
FAQ

Send Message

* clear input
* clear input
* clear input
* clear input
* clear input
*
* clear input
*

Related Products

Stainless Steel Door Access Control Exit Push Button
Stainless Steel Door Access Control Exit Push Button
Model NO. TK-910
VIANS Fire Alarm Switch Door Release With Cover Home Office apartment building Emergency Push Exit Button
VIANS Fire Alarm Switch Door Release With Cover Home Office apartment building Emergency Push Exit Button
Model NO. TK-923
Waterproof Stainless Steel Material Metal or Plastic Back Box Access Control Exit Button
Waterproof Stainless Steel Material Metal or Plastic Back Box Access Control Exit Button
Model NO. VI-911

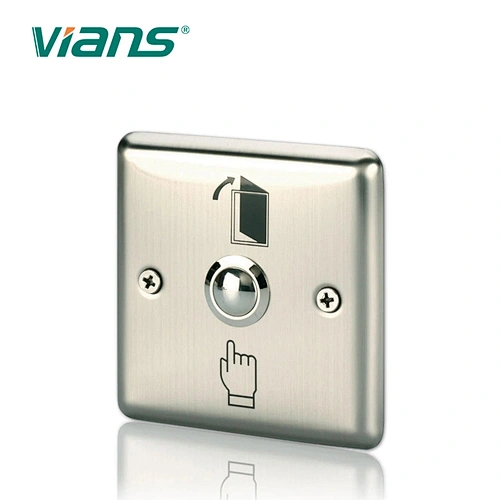

Blue Night Luminous Stainless Steel 36VDC Push Button Switch
