- Place of Origin:China
- Brand Name:TK
- Model Number:TK-809ST
- Certification:CE/ROHS/FCC/MA

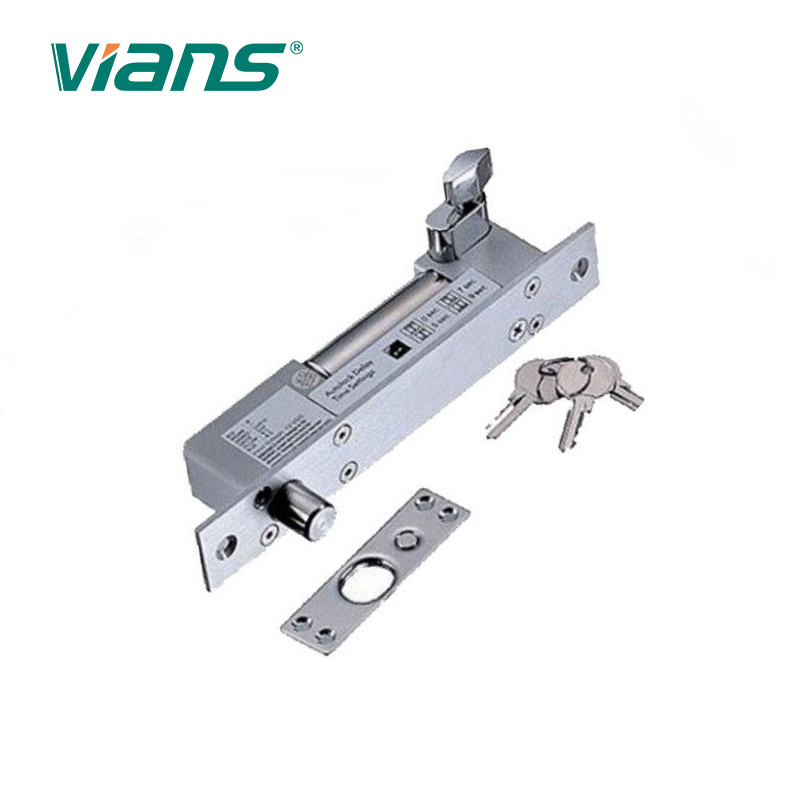

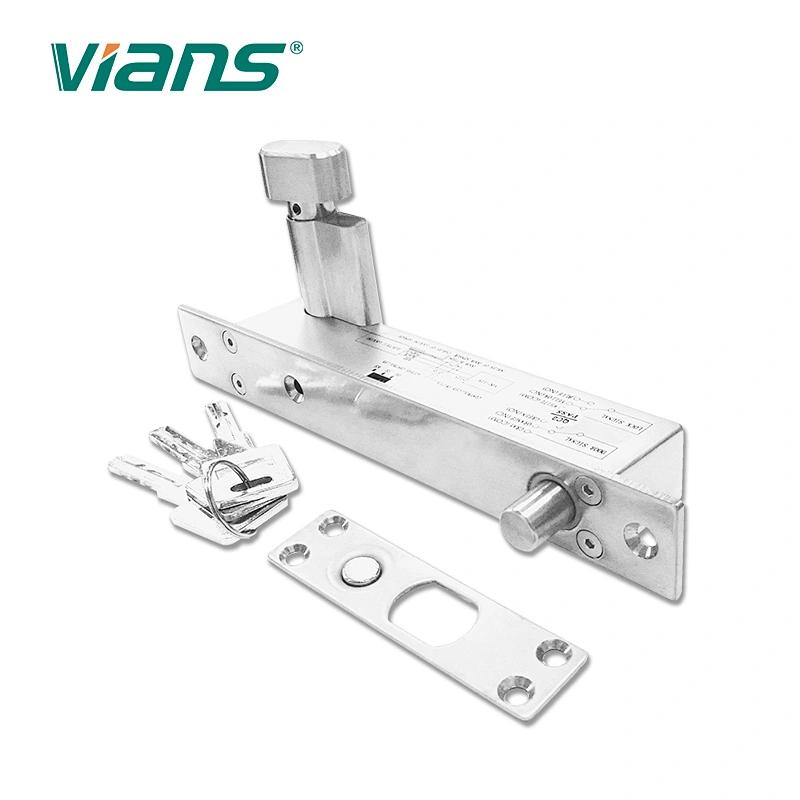

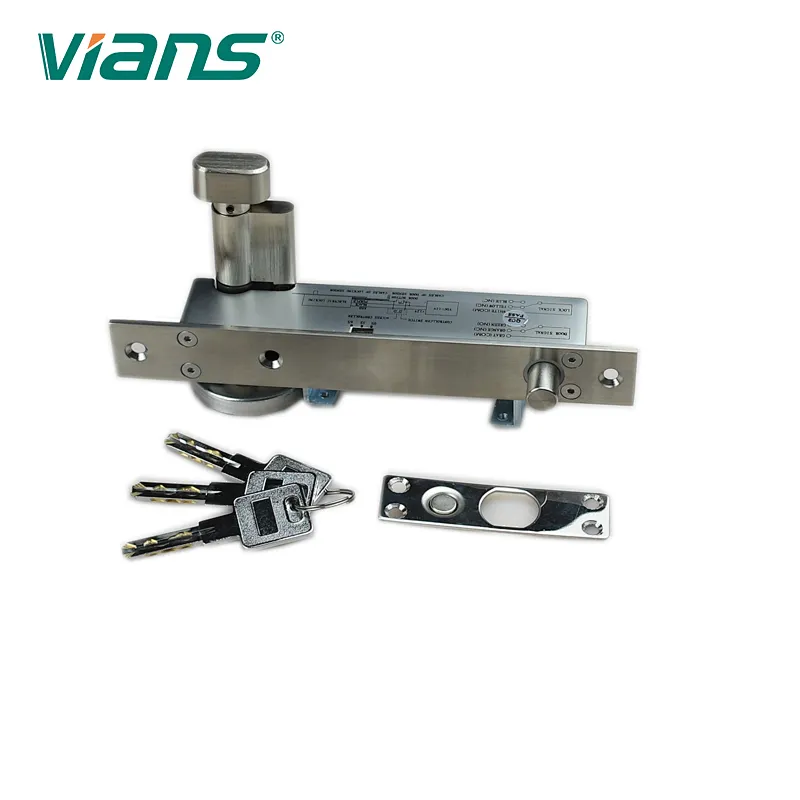

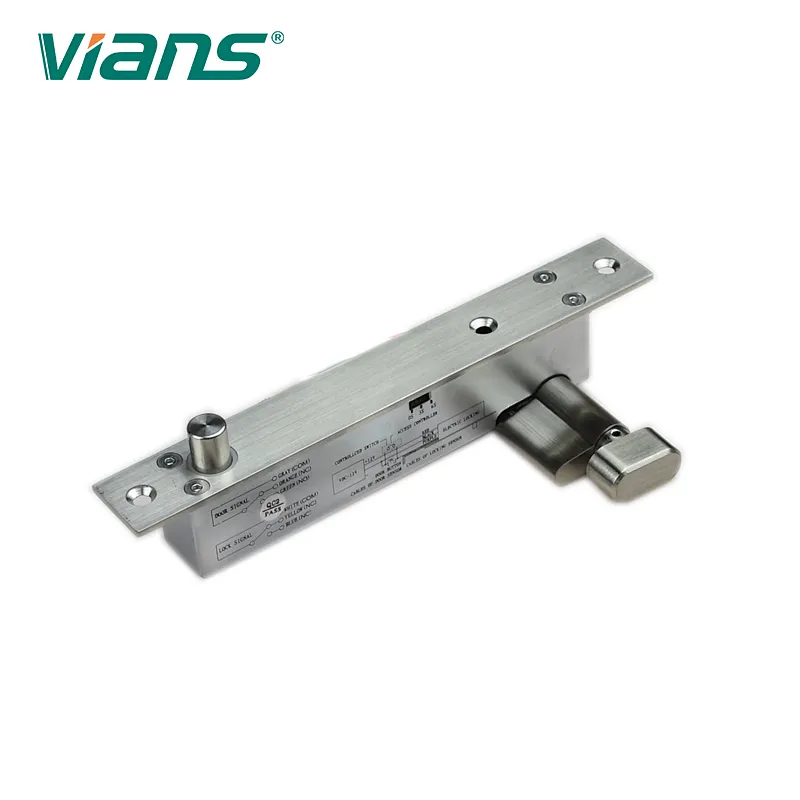

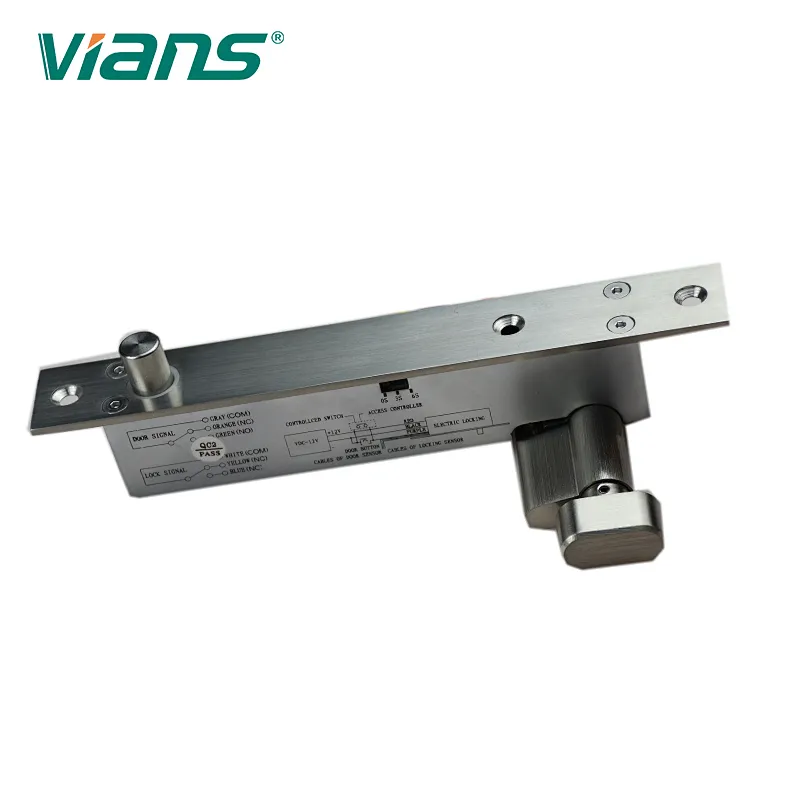

- Product Name:Access Control Electric Bolt Locks
- Lock Size:206Lx28Wx35H(mm)
- Strike:90Lx25Wx2H(mm)
- Input Voltage:DC12V±10%
- Signal feedback:Yes
- Working Current:110mA

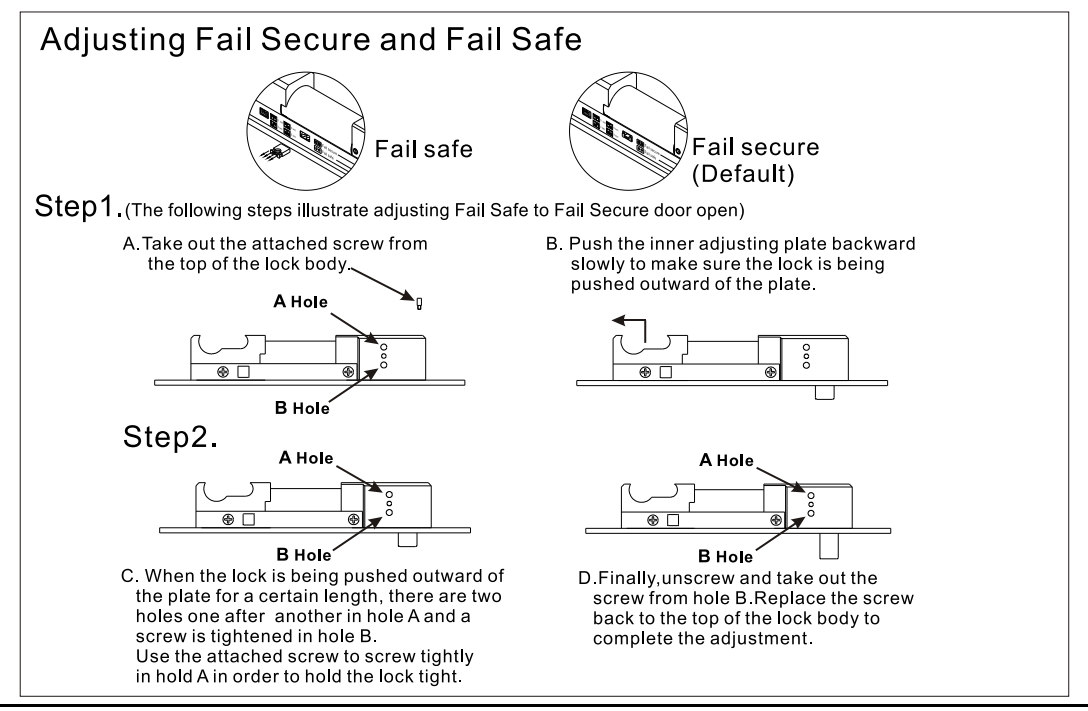

- Security Type:Fail secure or Fail safe
- Door Type Applicable:Wooden door , Glass door ,Metal door , Fireproof door
- Time Delay:0, 3, 6, 9 seconds
- Warranty:1 year
Product Advantage
1. Low Temperature, safe & Durable.
2. Low Power, Environmental Protection.
3. Special photoelectricity control,three steps current application.
4. Long Life with 500000 cycles.
5. MOV Provides Reverse Current Protection.
6. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7. Double protection for loading current.
8. Photoelectricity Control,Low Temperature,
2. Low Power, Environmental Protection.
3. Special photoelectricity control,three steps current application.
4. Long Life with 500000 cycles.
5. MOV Provides Reverse Current Protection.
6. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7. Double protection for loading current.
8. Photoelectricity Control,Low Temperature,
Product Description
Specification
Model Number | TK-809ST |
Certification | CE,ROHS,FCC |
Product Name | Access Control Locks |
Lock Size | 206Lx28Wx35H(mm) |
Strike | 90Lx25Wx2H(mm) |
Input Voltage | DC12V±10% |
Start Current | 950mA |
Working Current | 110mA |
Security Type | Power off to open |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | 0, 3, 6, 9 seconds |
Warranty | 1 year |
Recommend Products
Company Profile
Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Domestic Market(52.00%),Mid East(20.00%),South America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Africa(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smart cylinder,Electric locks,Access Control,Automatid door operator,RFID readers
4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
