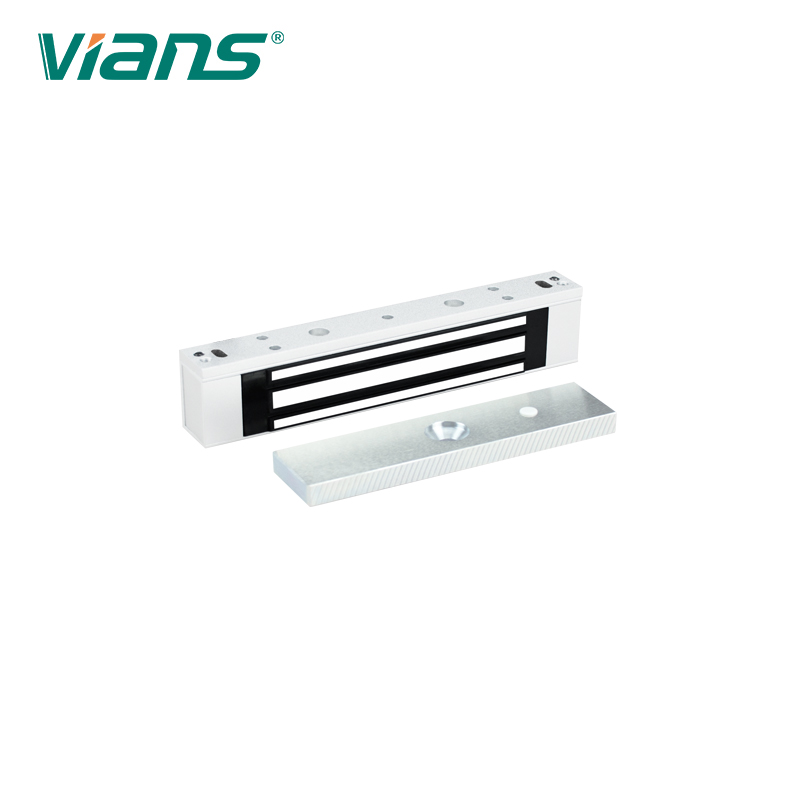

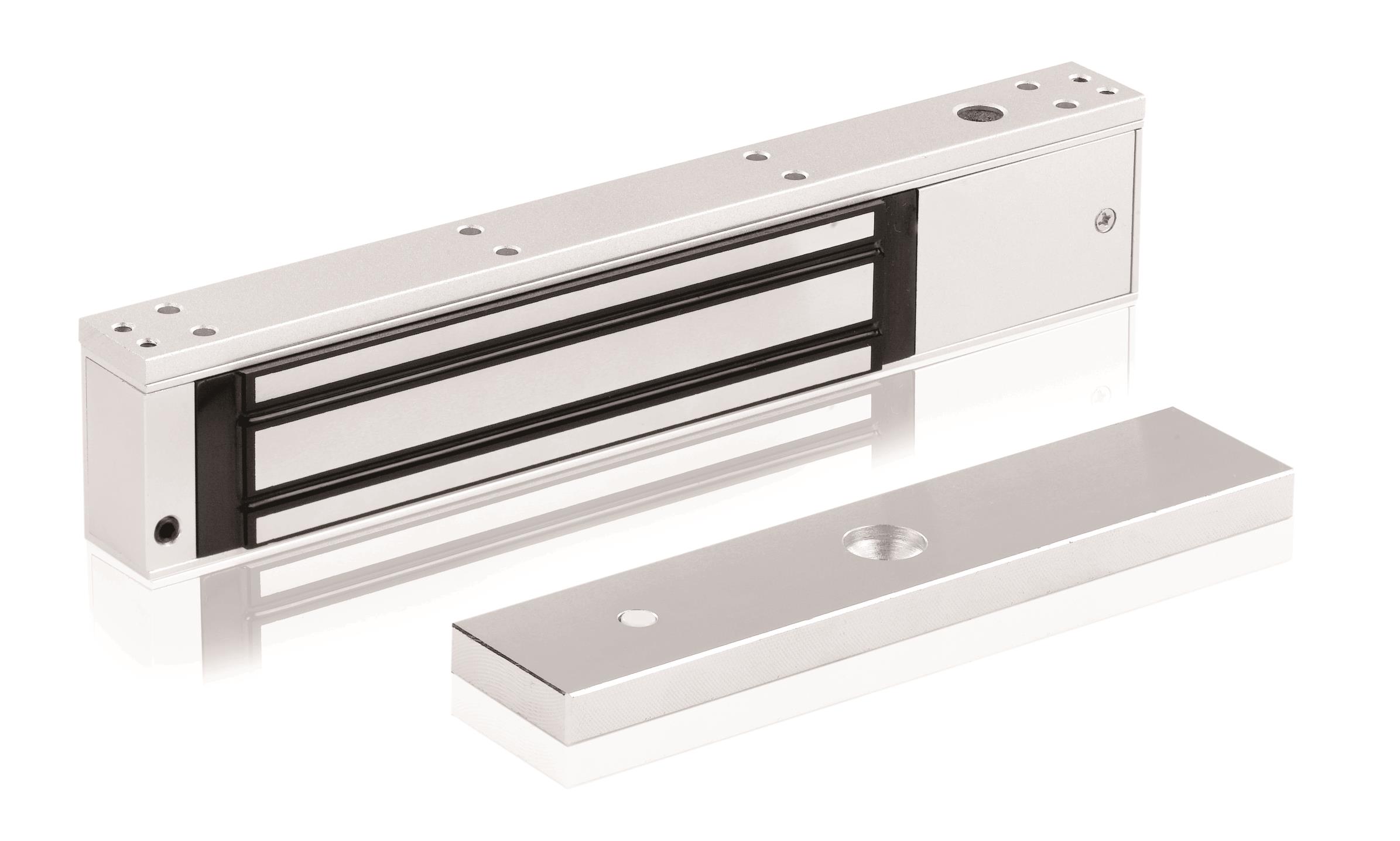

- Place of Origin:GUA
- Brand Name:VIANS
- Certification:CE/FCC/ROHS

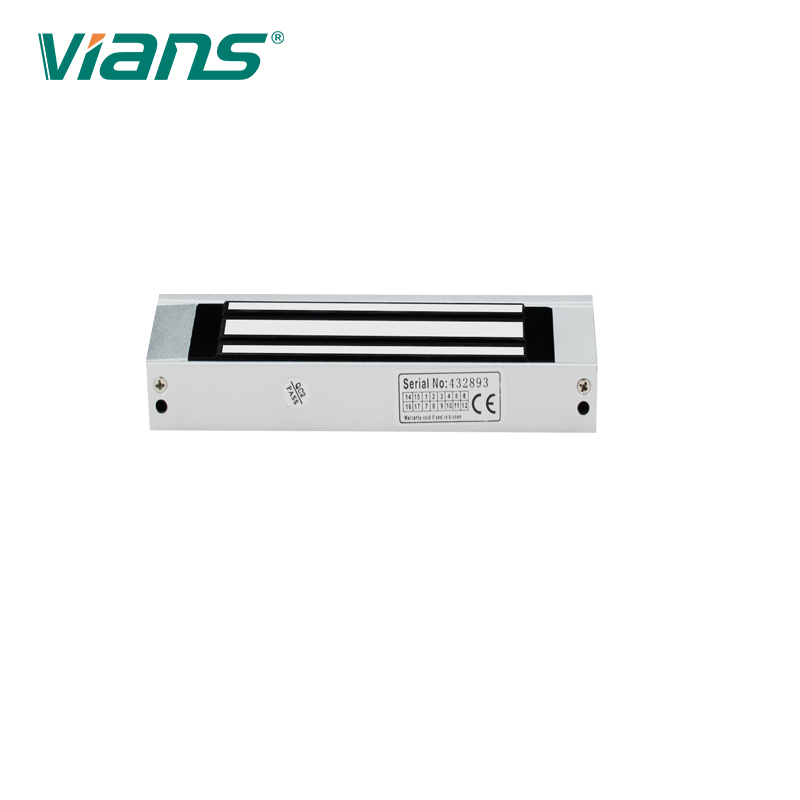

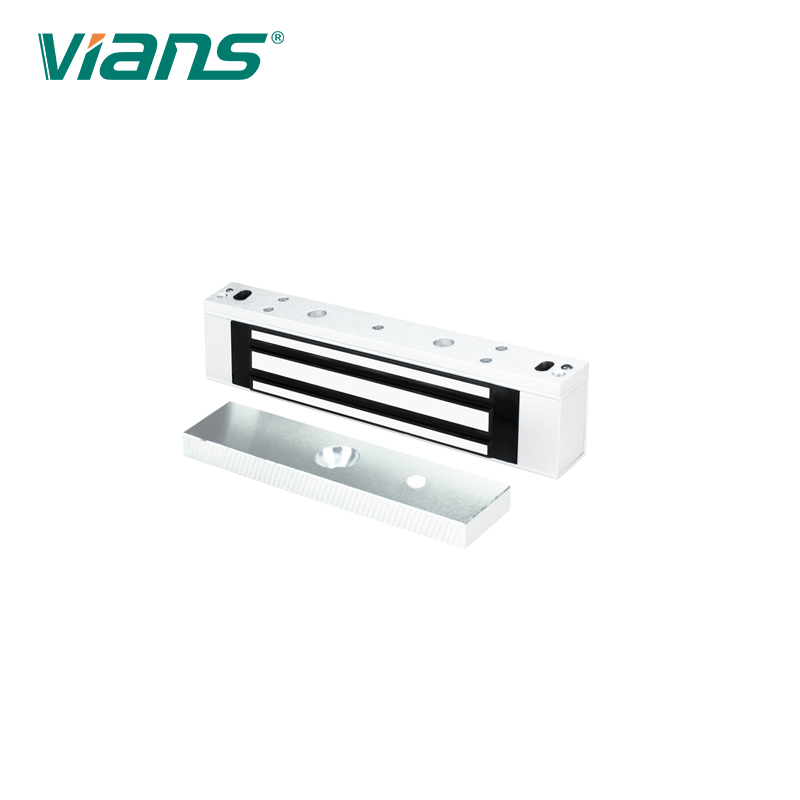

- Product Name:Electric Magnetic Door
- Lock Size:170L*42W*21H(mm)
- Armature Plate:130L*33W*9H(mm)
- Input Voltage:DC12V or 24V
- Working Current:300mA/150mA
- Door Type:Wooden door/ Glass door/Metal door/Fireproof door
- Operating Temp:-10~+55(14-131F)
- Humidity:0~90%(non-condensing)
- Lock Finish:Aluminum alloy
- Weight:1.2kg
Product Description

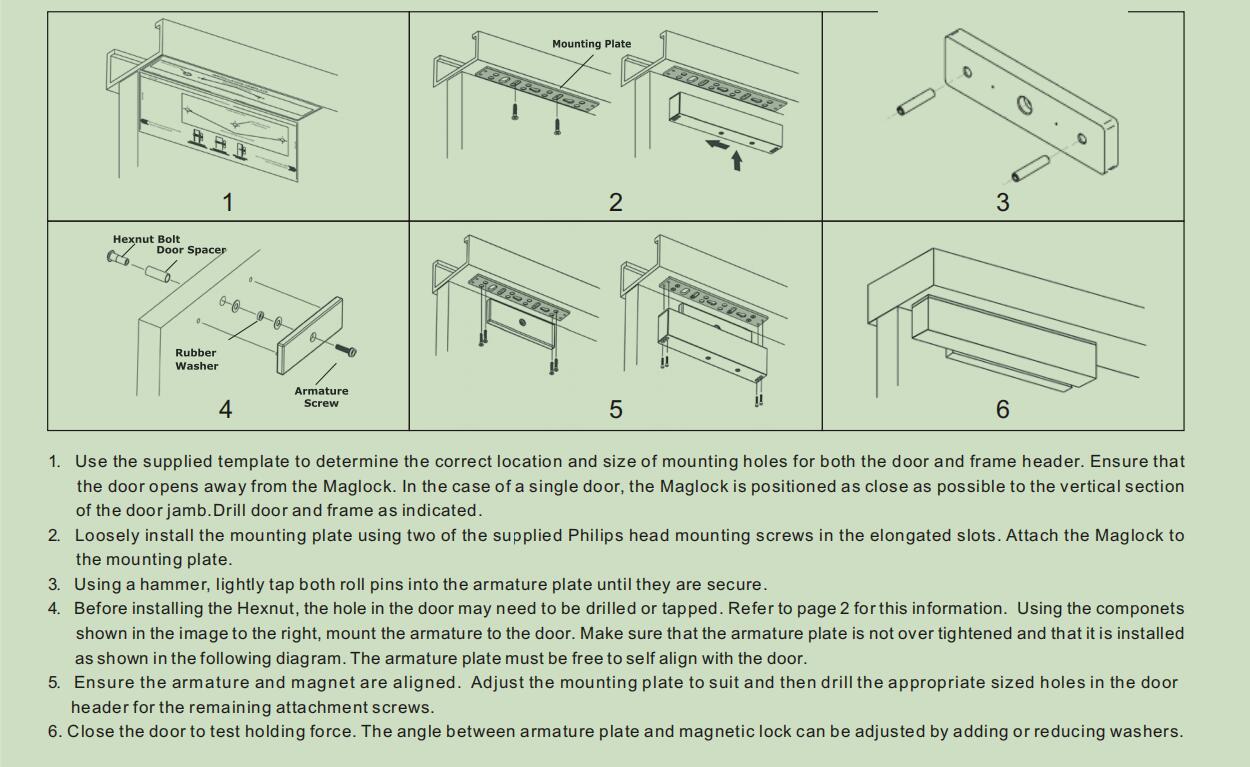

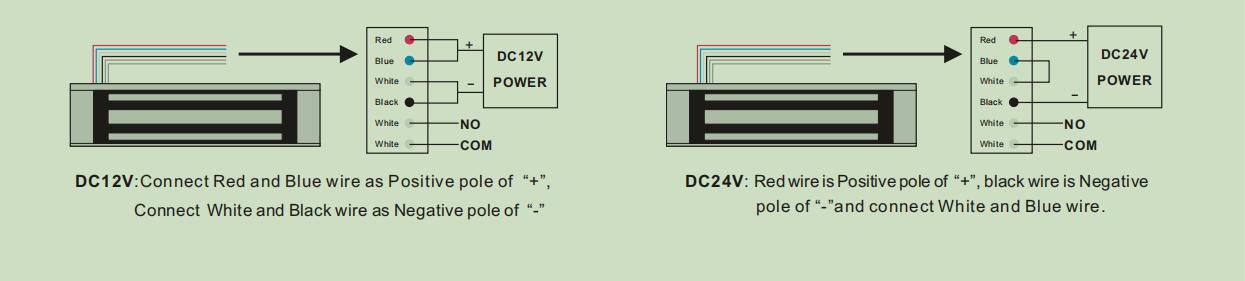

Note:1. Using powerful power supply, output voltage should be DC12V±10%,cable ＞0.75mm. 2. Don' hurt the galvanization layer during the installation.3. Ensure the mounting plate well attach to the lock body. 4. The rubber ring must be added between armature plate and door leaf, don't fasten the screw tightly, keep the rubber ring elastic.5. Don't welded the mounting plate to the door, or will effect the lock. 6. Clean the slushing oil with cloth, don't use alkaline or pungent cleaner.
Specification
item | value |
Place of Origin | GUA |
Brand Name | VIANS |
Model Number | TK-180AS |
Certification | CE/FCC/ROHS |
Product Name | Electric Magnetic Door |
Lock Size | 170L*42W*21H(mm) |
Armature Plate | 130L*33W*9H(mm) |
Input Voltage | DC12V or 24V |
Working Current | 300mA/150mA |
Door Type | Wooden door/ Glass door/Metal door/Fireproof door |
Operating Temp | -10~+55(14-131F) |
Humidity | 0~90%(non-condensing) |
Lock Finish | Aluminum alloy |
Weight | 1.2kg |
Packing & Delivery
20PCS/CARTON
