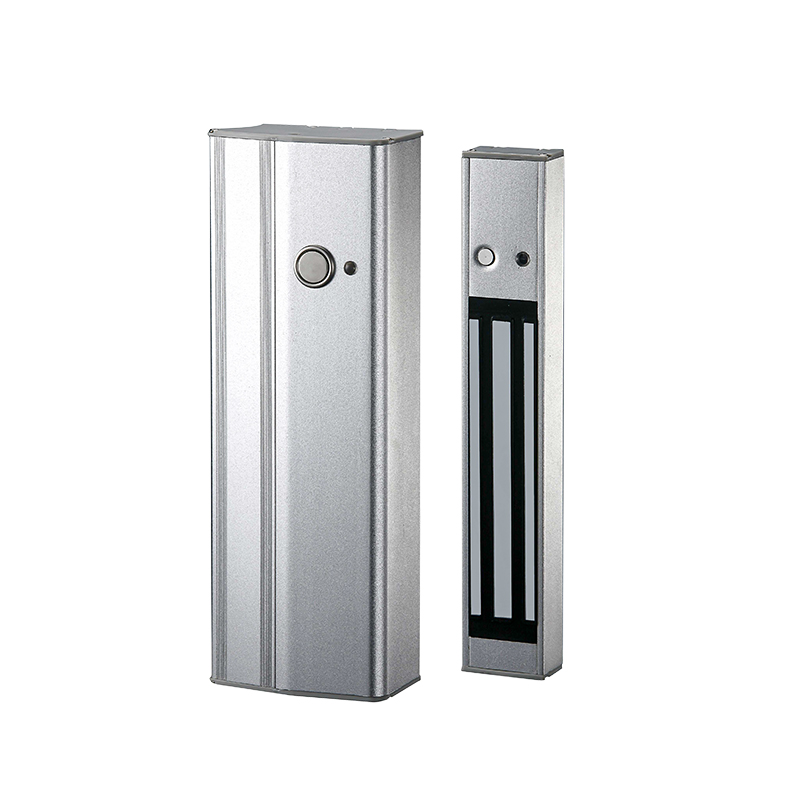

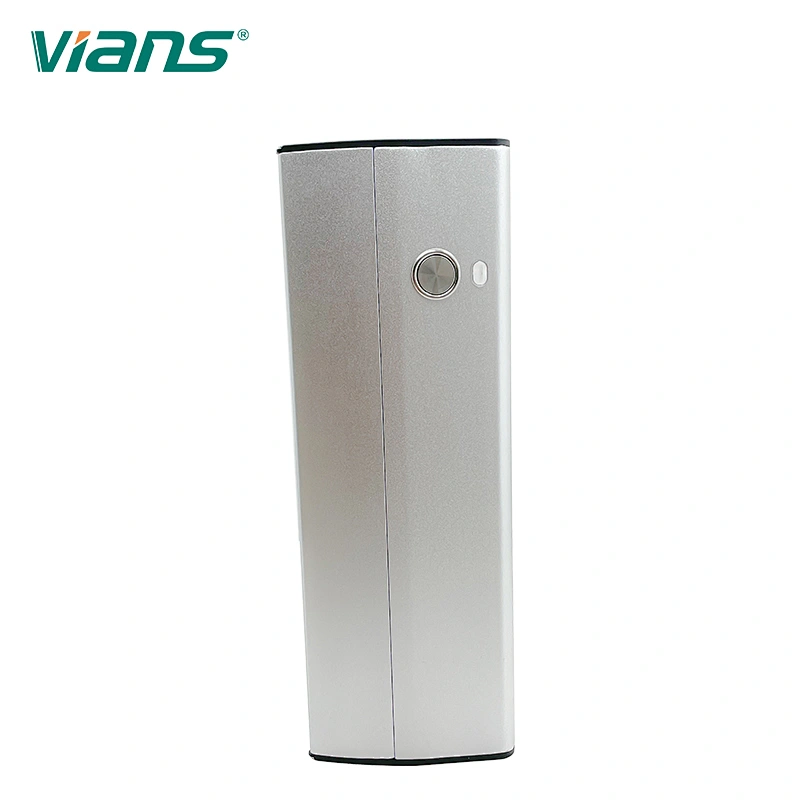

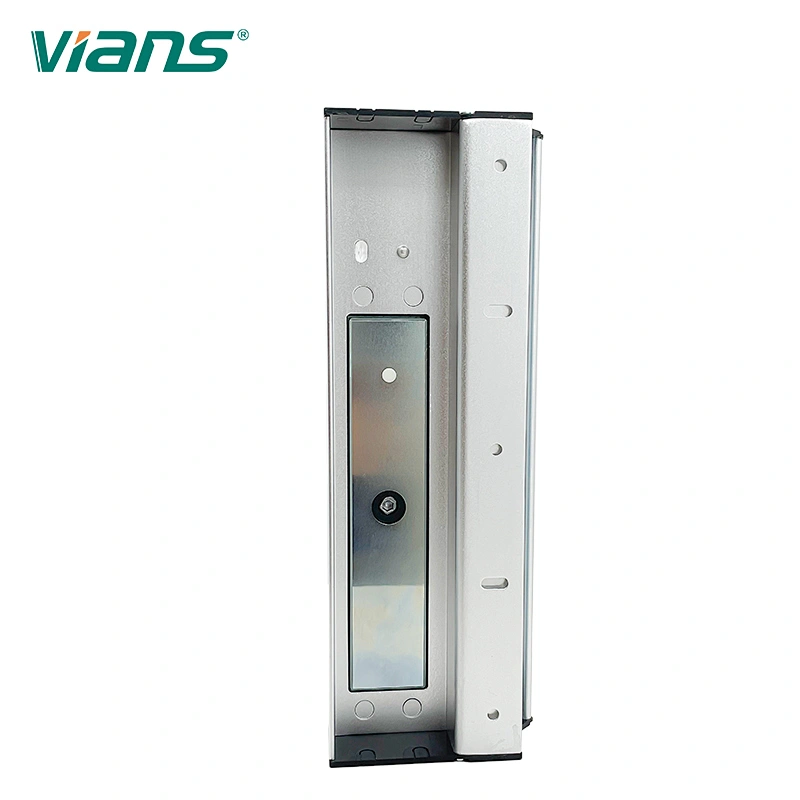

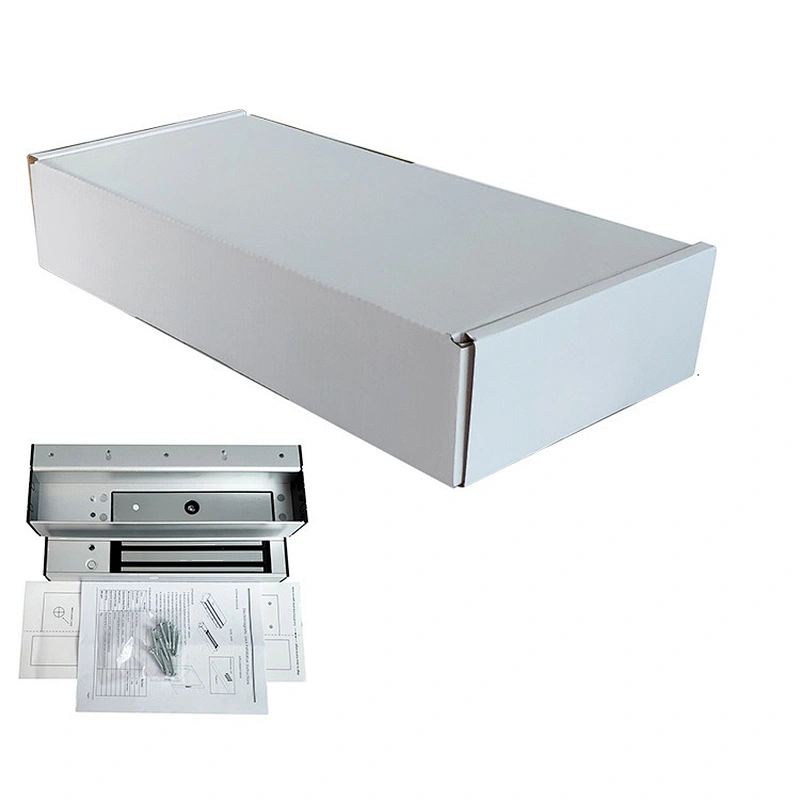

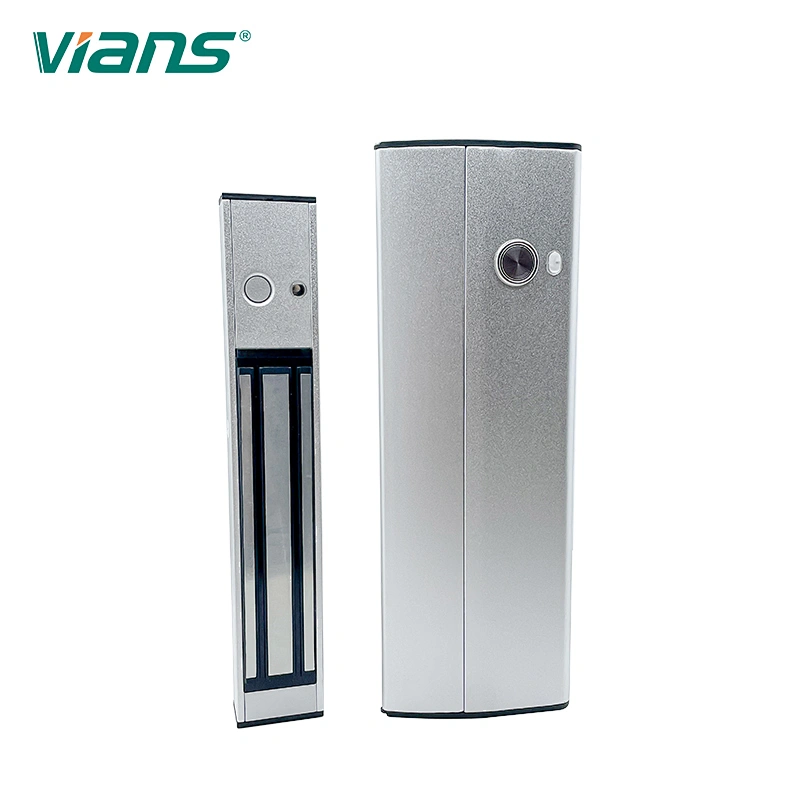

VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock
VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock

VIANS 600lbs Door Handle Electromagnetic Lock Power Indicator Light With Exit Push Button Lock handle 280KGS EM lock

Model NO.
TK-280ASB
Price:
$ 59.00-61.00 / piece
Minimum order quantity
1 piece
Quantity:
  • Place of Origin:GUA
  • Brand Name:VIANS
  • Model Number:TK-280ASB
  • Product Name:280KG Handle Magnetic Locks With Button

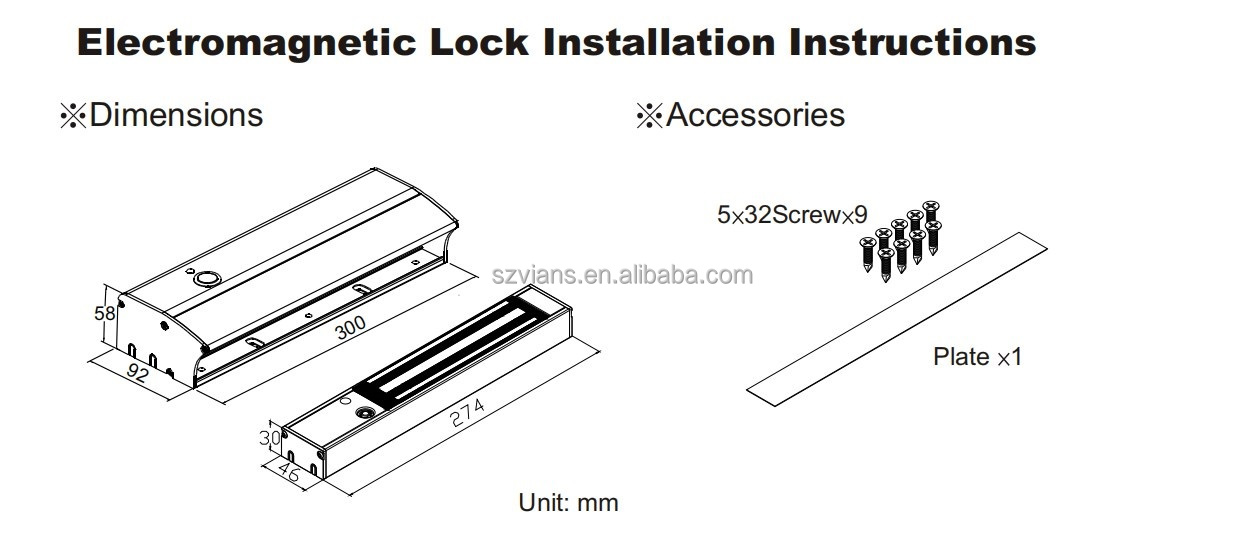

  • Lock Size:274L*46W*30H(mm)
  • Armature Plate Dimension:300L*92W*58H(mm)
  • Holding Force:280kg(600Lbs)
  • Power Supply:DC12V or DC24V
  • Working Current:450mA / 12VDC 235mA / 24VDC
  • Application Door:Out-swing door and In-swing door

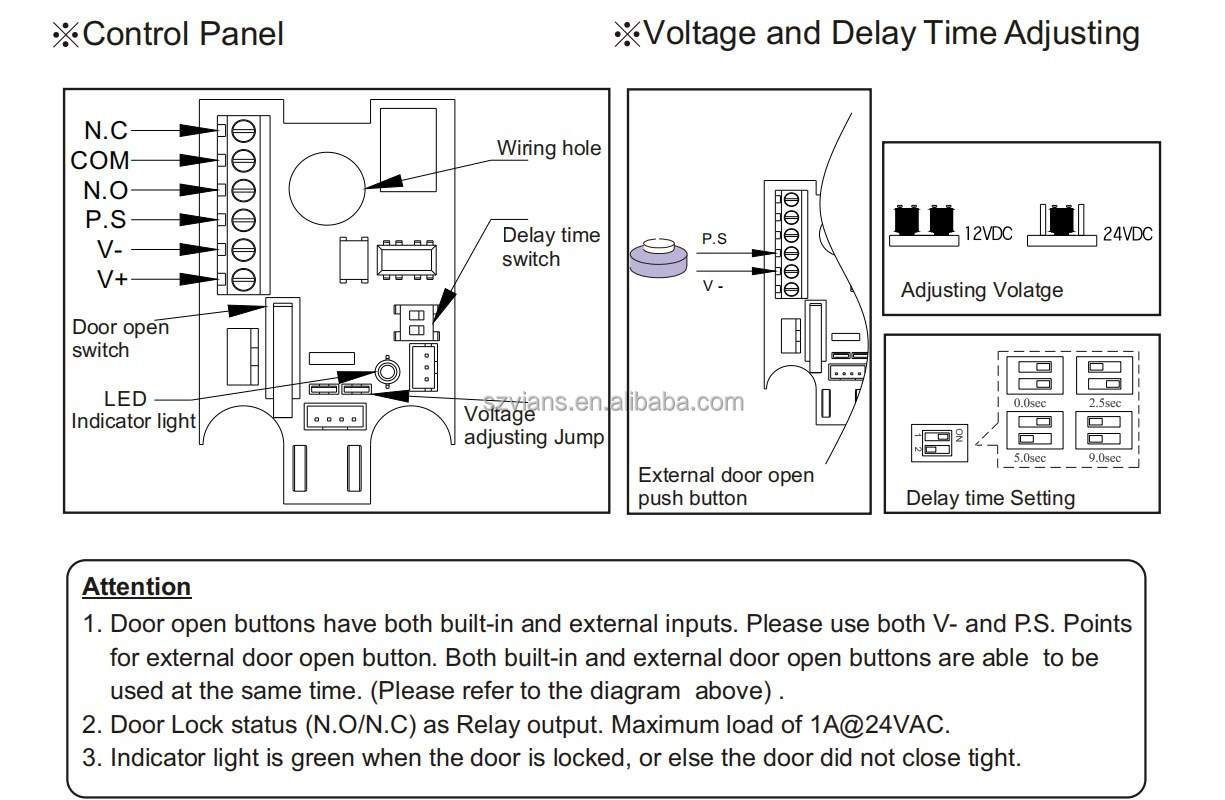

  • Operation Delay Time:0 sec., 2.5sec., 5sec., 9sec.
  • Monitor Output:N.O / N.C

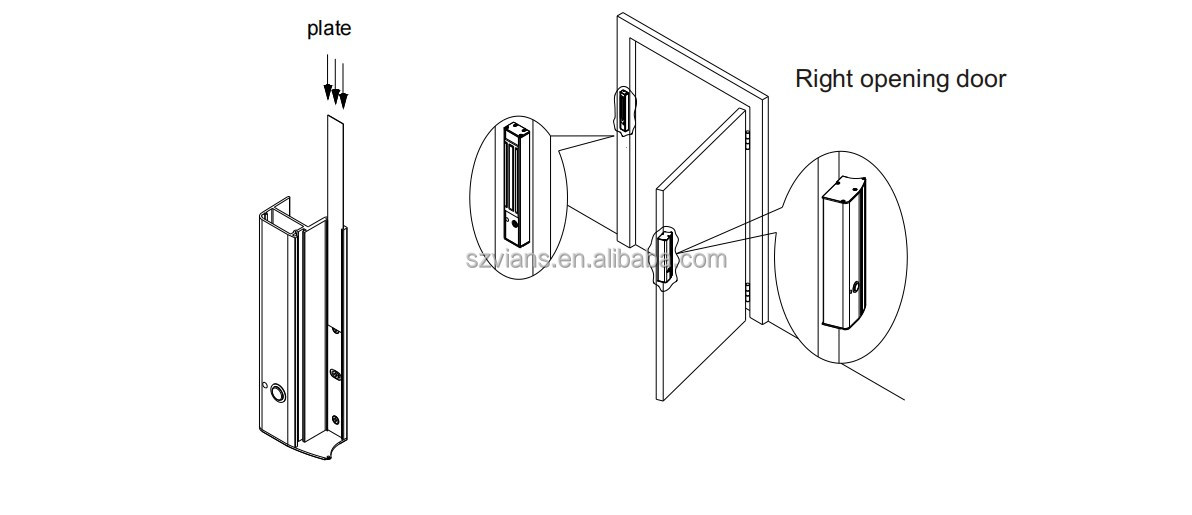

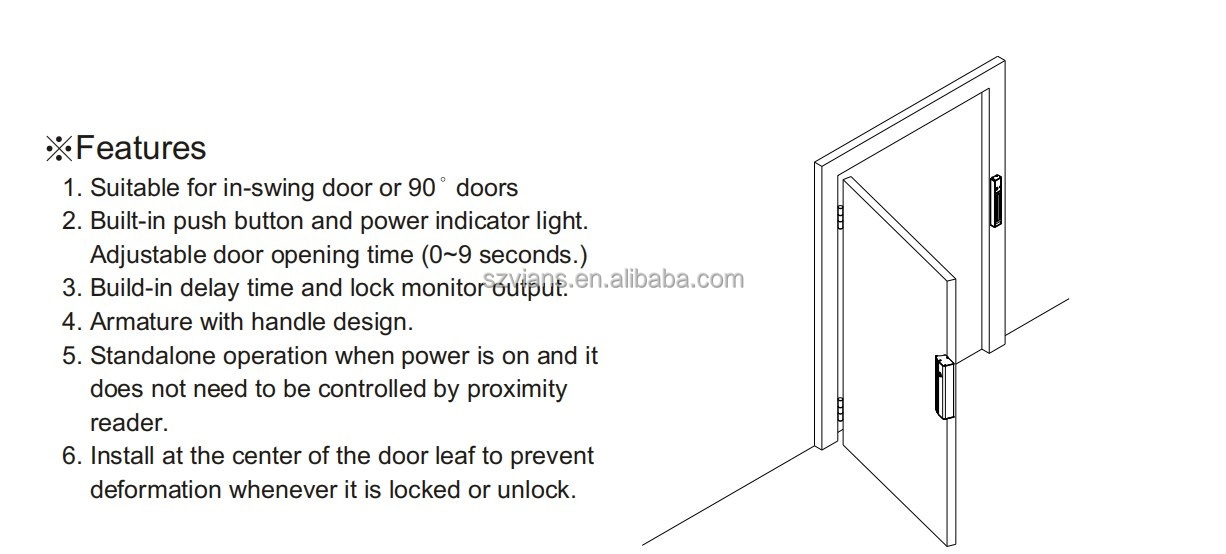

  • Suitable for:in-swing door or 90 doors

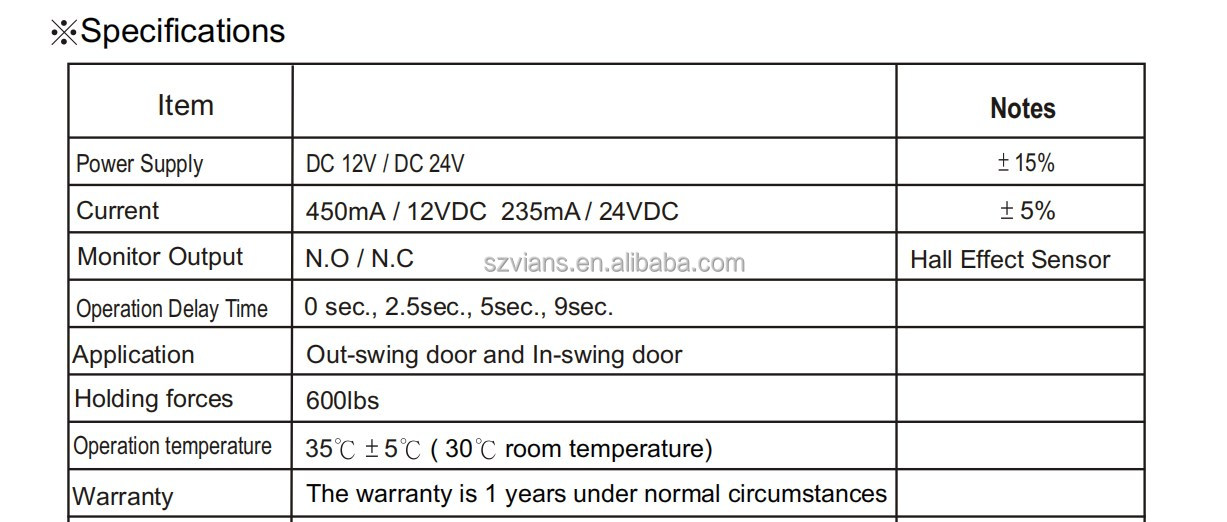

Specification


item
value
Place of Origin
GUA
Brand Name
VIANS
Model Number
TK-280ASB
Certification
CE/FCC/ROHS
Product Name
280KG Handle Magnetic Locks With Button
Lock Size
274L*46W*30H(mm)
Armature Plate Dimension
300L*92W*58H(mm)
Holding Force
280kg(600Lbs)
Power Supply
DC 12V / DC 24V
Working Current
450mA / 12VDC 235mA / 24VDC
Operation Delay Time
0 sec., 2.5sec., 5sec., 9sec.
Application
Out-swing door and In-swing door
Monitor Output
N.O / N.C
Suitable
in-swing door or 90 doors


Product Description


The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. Magnetic lock are widely used in the important places such as airports, subways, banks, prisons,intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
