- Place of Origin:GUA
- Brand Name:VIANS
- Lock Size:210L*42W*28.5H(mm)
- Armature Plate Dimension:185L*38W*12H(mm)
- Holding Force:280kg(600Lbs)
- Signal output:NO
- Lock signal:Yes
- Working Current:12V/460mA 24V/220mA
- Door Type:Wooden door , Glass door ,Metal door , Fireproof door
- Security Type:Power off to open
- Weight:2.3kg
- Input Voltage:DC12V or DC24V

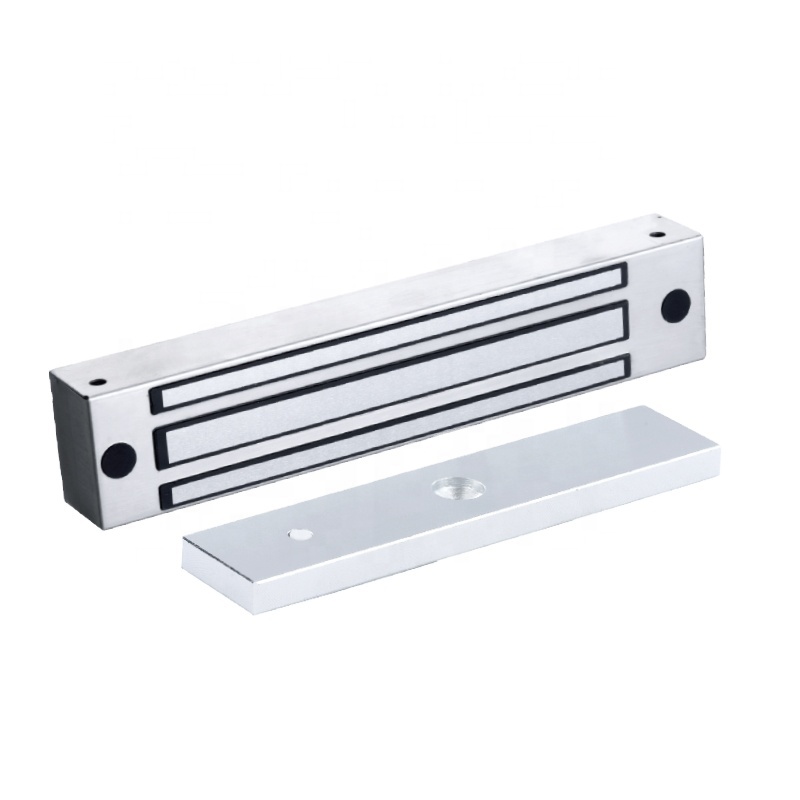

IP67 High Quality Outdoors Waterproof 600lbs Single Door Electric Magnetic Lock
Specification
item | value |
Place of Origin | GUA |
Brand Name | VIANS |
Certification | CE/FCC/ROHS |

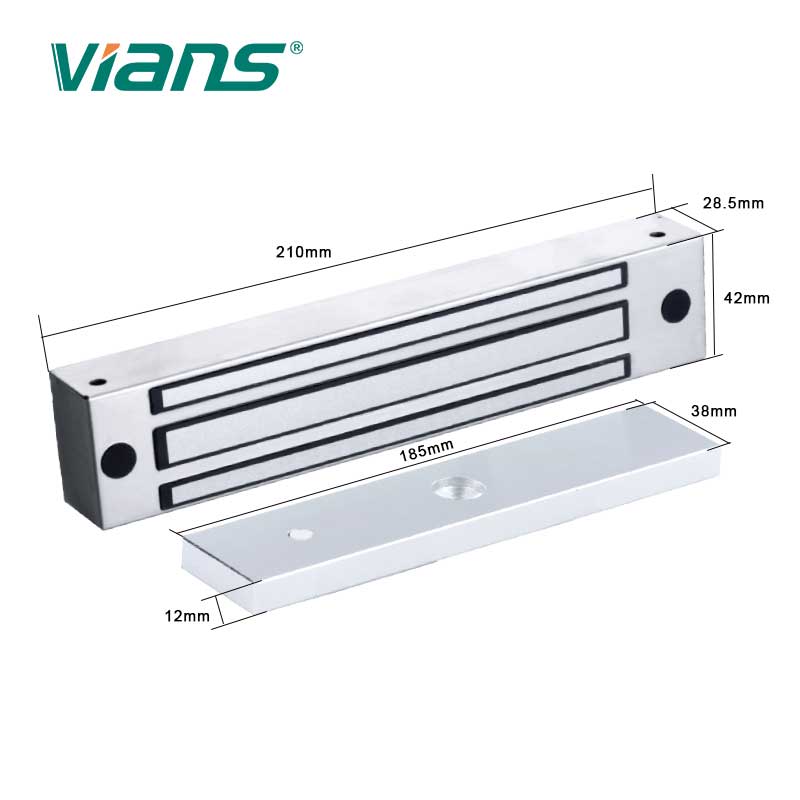

Lock Size | 210L*42W*28.5H(mm) |
Armature Plate Dimension | 185L*38W*12H(mm) |
Holding Force | 280kg(600Lbs) |
Signal output | NO |
Lock signal | Yes |
Working Current | 12V/460mA 24V/220mA |
Door Type | Wooden door , Glass door ,Metal door , Fireproof door |
Security Type | Power off to open |
Weight | 2.3kg |
Input Voltage | DC12V or DC24V |
Product Description

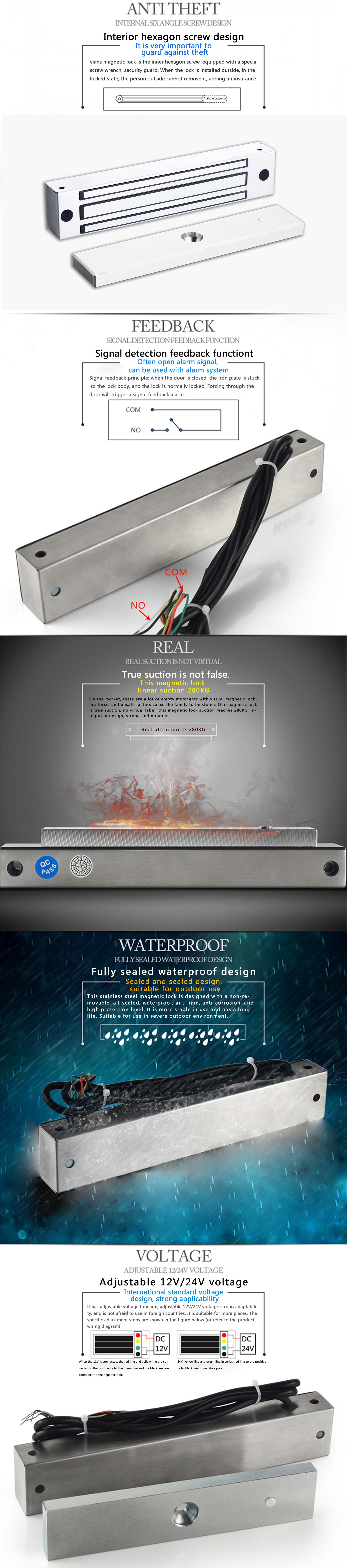

Feature
1, Strong waterproof property, which makes it suitable for some special situations.
2, The most popular holding force of 280kgs/ 600Lbs.
3, Lock signal feedback for the purpose of a higher level of access physical control security.
4, Hign quality with certifications of CE/ROHS/FCC/MA.
5, A very simple device to avoid risidual magnetism.
6, High-strength alluminum housing of anodizing finish.
7, Unlocked and locked purely by the attraction of magnet, causing no mechanical failure.
8, Weather resistant for exterior use
9, No moving parts---low maintainance
1, Strong waterproof property, which makes it suitable for some special situations.
2, The most popular holding force of 280kgs/ 600Lbs.
3, Lock signal feedback for the purpose of a higher level of access physical control security.
4, Hign quality with certifications of CE/ROHS/FCC/MA.
5, A very simple device to avoid risidual magnetism.
6, High-strength alluminum housing of anodizing finish.
7, Unlocked and locked purely by the attraction of magnet, causing no mechanical failure.
8, Weather resistant for exterior use
9, No moving parts---low maintainance
