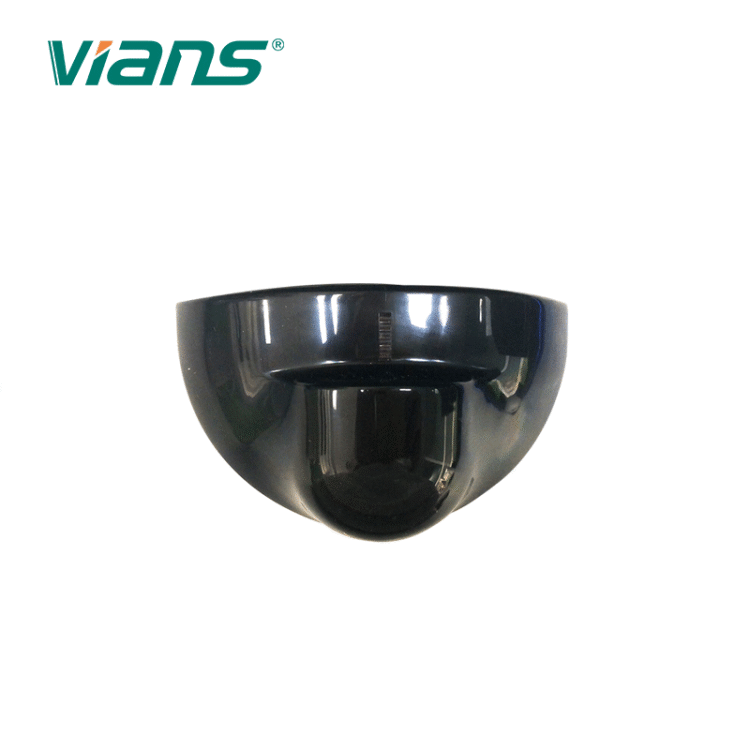

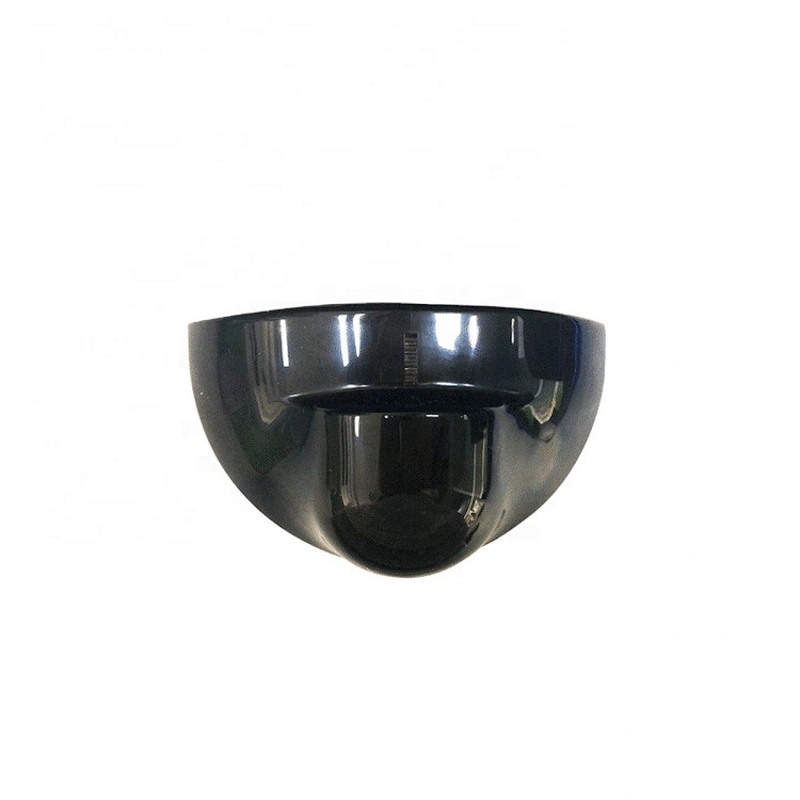

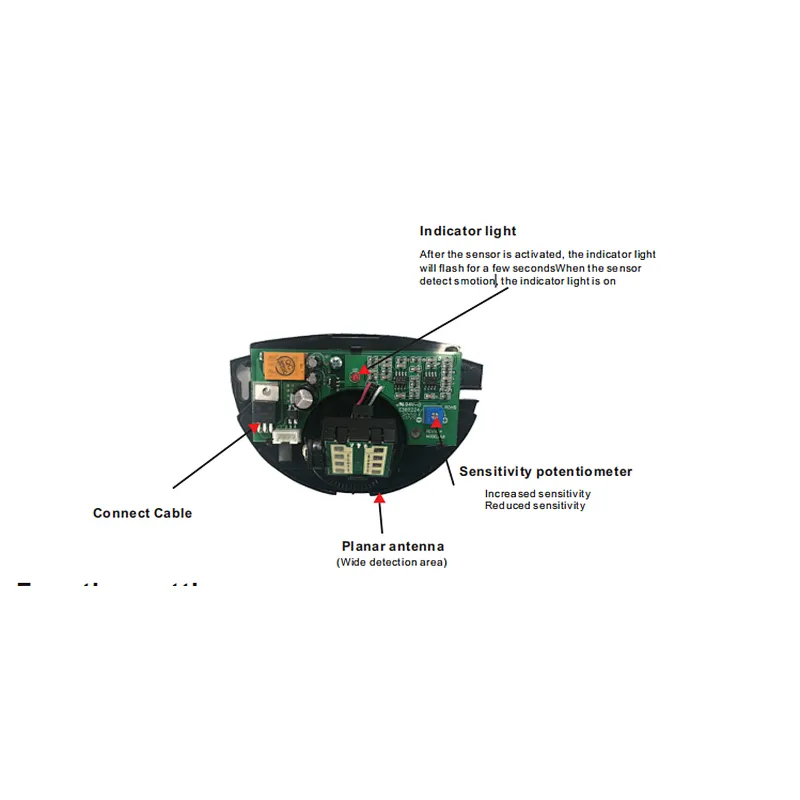

Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch
Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch
Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch
Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch
Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch

Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch

Model NO.
TK-HW10
Minimum order quantity
1 piece
Quantity:
  • Certification:CE/ROHS
  • Whether the smart:Yes
  • Place of Origin:Guangdong, China
  • Brand Name:Vians
  • Model Number:TK-HW10
  • Protection Level:IP52
  • Max. Current:1A
  • Max. Voltage:DC12V to 24V
  • LED:Yes

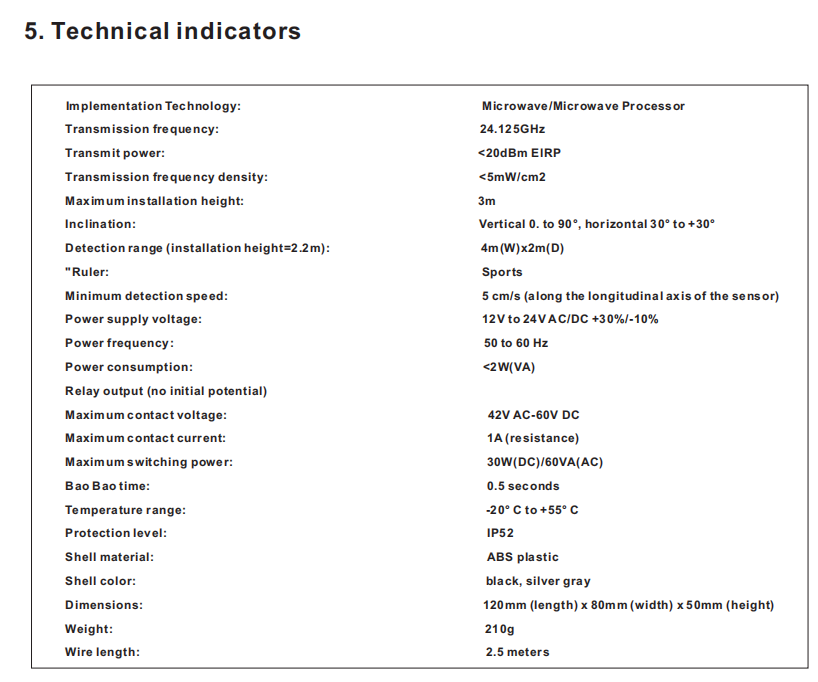

  • Implementation Technology::Microwave/Microwave Processor
  • Transmission frequency::24.125GHz
  • Transmit power::<20dBm ElRP
  • Transmission frequency density::<5mW/cm2
  • Maximum installation height::3m

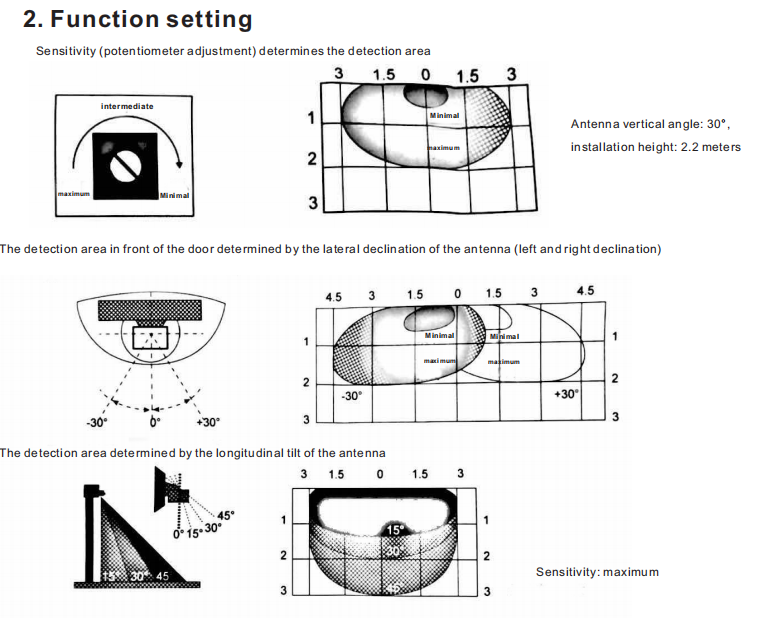

  • Inclination::Vertical 0. to 90°, horizontal 30° to +30°
  • Detection range:4m(W)x2m(D)
  • "Ruler::Sports
  • Minimum detection speed::5 cm/s (along the longitudinal axis of the sensor)
  • Power supply voltage::12V to 24V AC/DC +30%/-10%
Automatic Door Exit Infrared Sensor IR type No Touch Exit Switch
Infrared Sensoris necessary products for No Touch access control system; it could use together with electric lock series.It also could use together with Automatic door operator. we could help you OEM your brand.
Product Description
Recommend Products
About Vians
Our Advantages
Packing & Delivery
FAQ

Send Message

* clear input
* clear input
* clear input
* clear input
* clear input
*
* clear input
*

Related Products

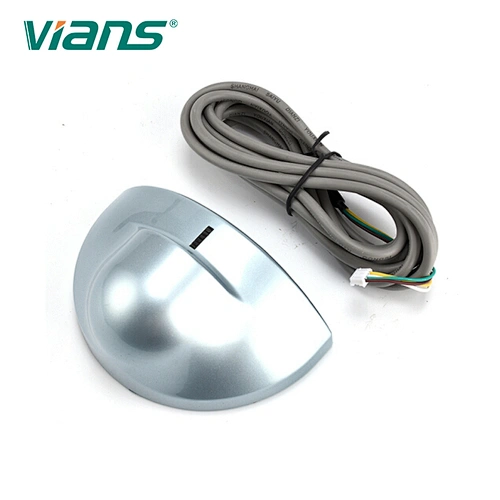

OEM Silver Automatic Sliding Door Microwave Sensor Swing Door
OEM Silver Automatic Sliding Door Microwave Sensor Swing Door
Model NO. TK-HW10, TK-HW10
Swing Door Opener Concealed Door Operator for Glass Door
Swing Door Opener Concealed Door Operator for Glass Door
Model NO. TK-PD180
High Performance 80Nm Remote Control Automatic Swing Gate Opener For Factory Community Gate
High Performance 80Nm Remote Control Automatic Swing Gate Opener For Factory Community Gate
Model NO. TK-PW180

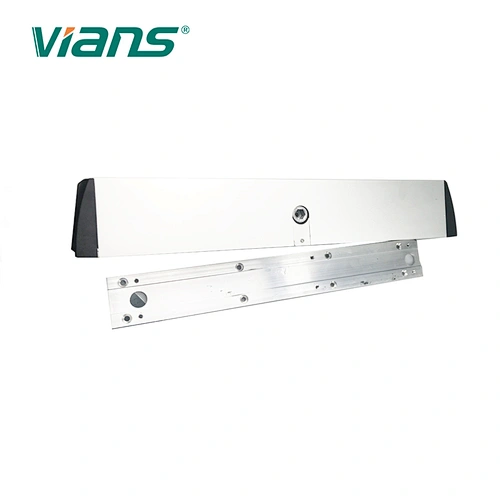

Vians Indoor Automatic Gate Opener for single-door or double-door Swing Door
