- Place of Origin:Guangdong, China
- Brand Name:Vians
- Model Number:YK-280AS
- Certification:CE/FCC/ROHS
- Lock Size:250L*47W*26H(mm)
- Armature Plate Dimension:180L*38W*11H(mm)
- Holding Force:280kg(600Lbs)
- Input Voltage:DC12V or DC24V
- Working Current:12V/480mA 24V/240mA
- Door Type Applicable:Wooden door , Glass door ,Metal door , Fireproof door
- Security Type:Power off to open
- Signal output:YES
- LED:YES

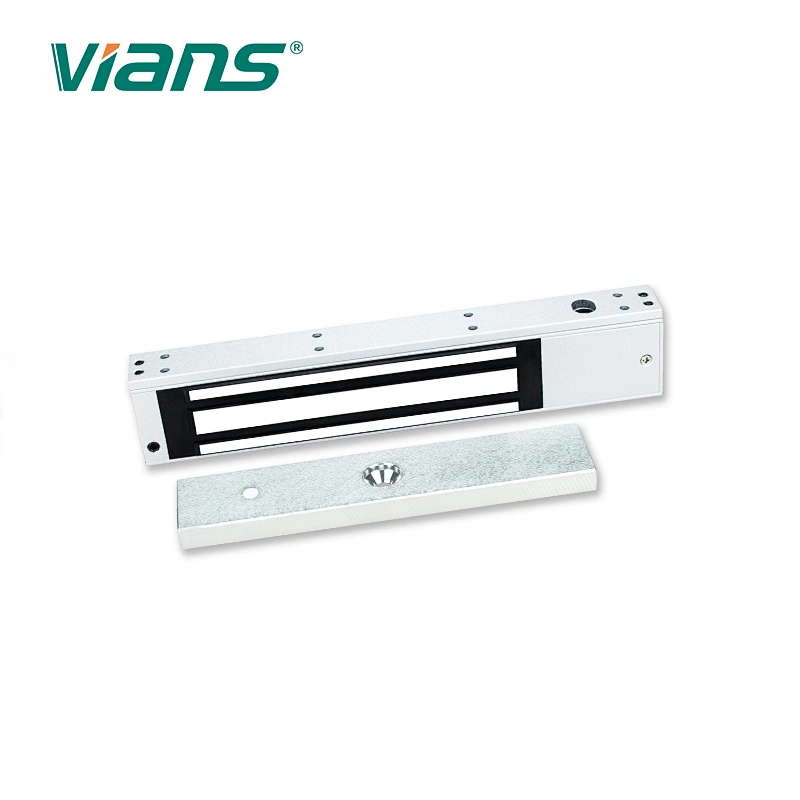

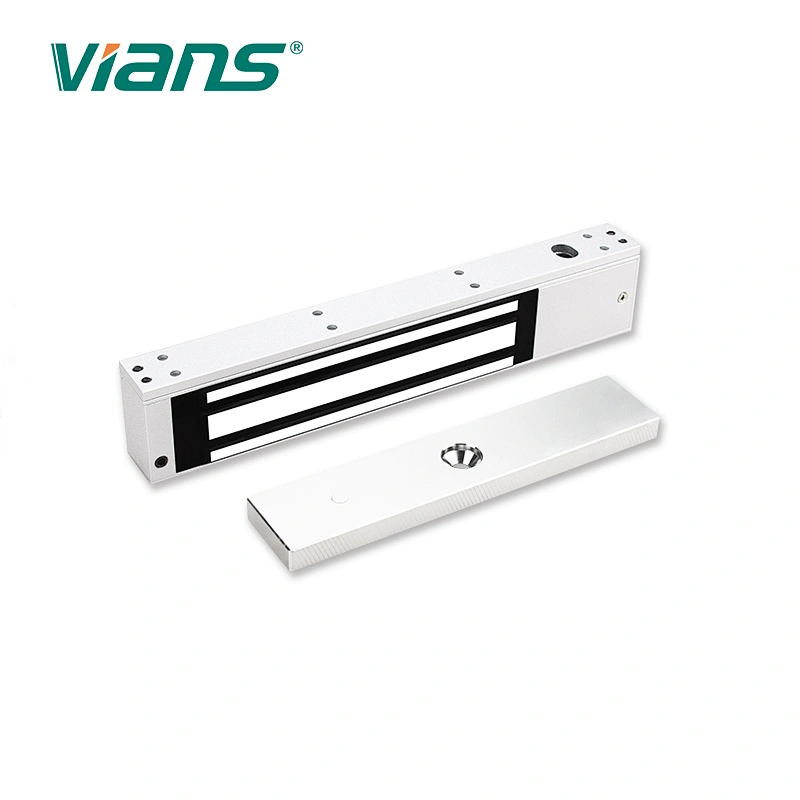

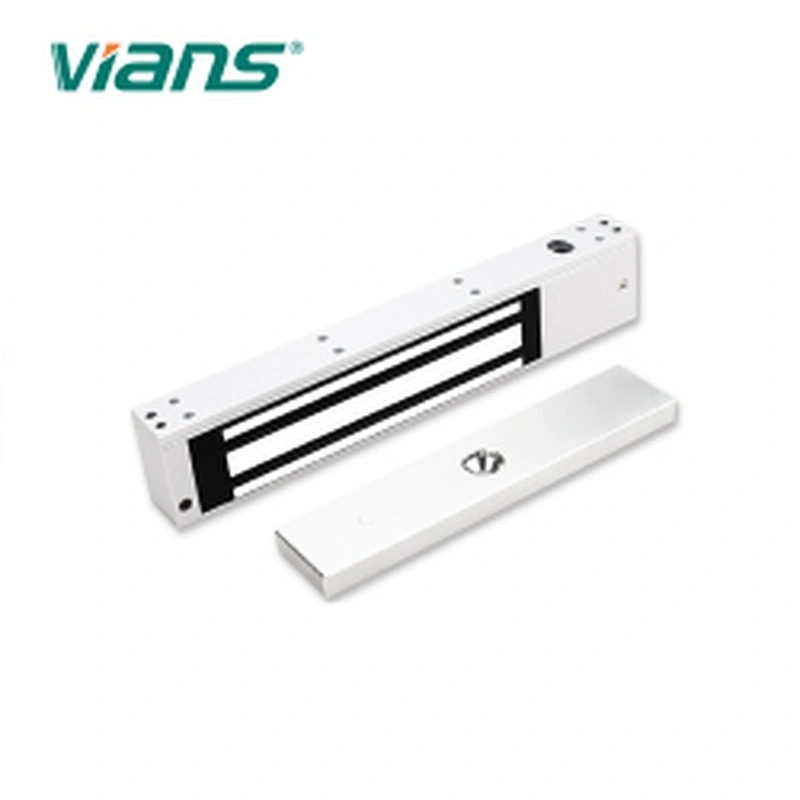

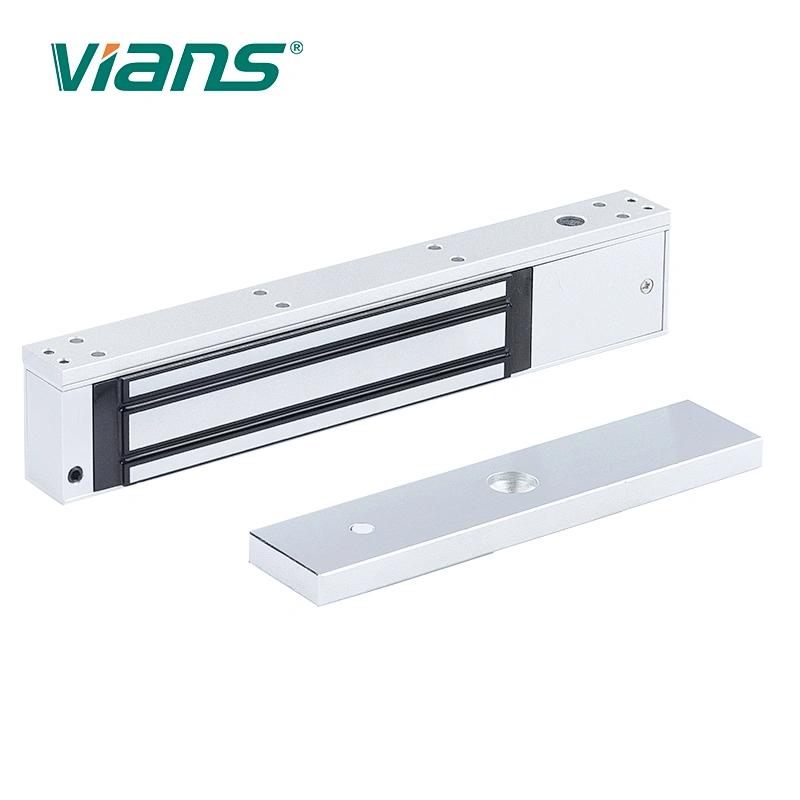

Em lock 280KG 600lbs magnetic lock for access control system
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic,when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. magnetic lock are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become
convenient, fast and intelligent tool for global users, gain good reputation from the customers.
convenient, fast and intelligent tool for global users, gain good reputation from the customers.
Advantage of the products
Shell is made of high-strength aluminum alloy, Anodized.
◆ Increase the holding Force, Dual Insulative Hosing.
◆ MA certified products of China / CE certification of EU.
◆ Complete electromagnetic suction working no mechanical failure.
◆ Collinear Load Test 280KG(600Lbs).
◆ Dual Voltage 12 or 24 VDC(optional).
◆ Built-in reverse current protection device (MOV).
◆ Anti residual magnetism design, anti-wear manufacturing materials.
Shell is made of high-strength aluminum alloy, Anodized.
◆ Increase the holding Force, Dual Insulative Hosing.
◆ MA certified products of China / CE certification of EU.
◆ Complete electromagnetic suction working no mechanical failure.
◆ Collinear Load Test 280KG(600Lbs).
◆ Dual Voltage 12 or 24 VDC(optional).
◆ Built-in reverse current protection device (MOV).
◆ Anti residual magnetism design, anti-wear manufacturing materials.

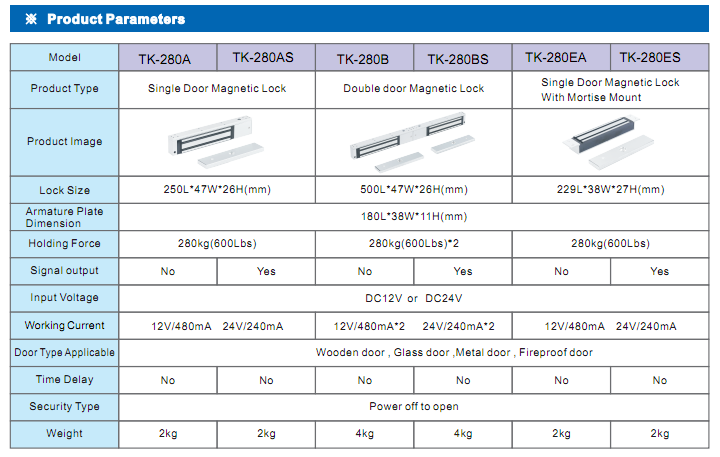

Specification
Product Parameter | Parameter Description |

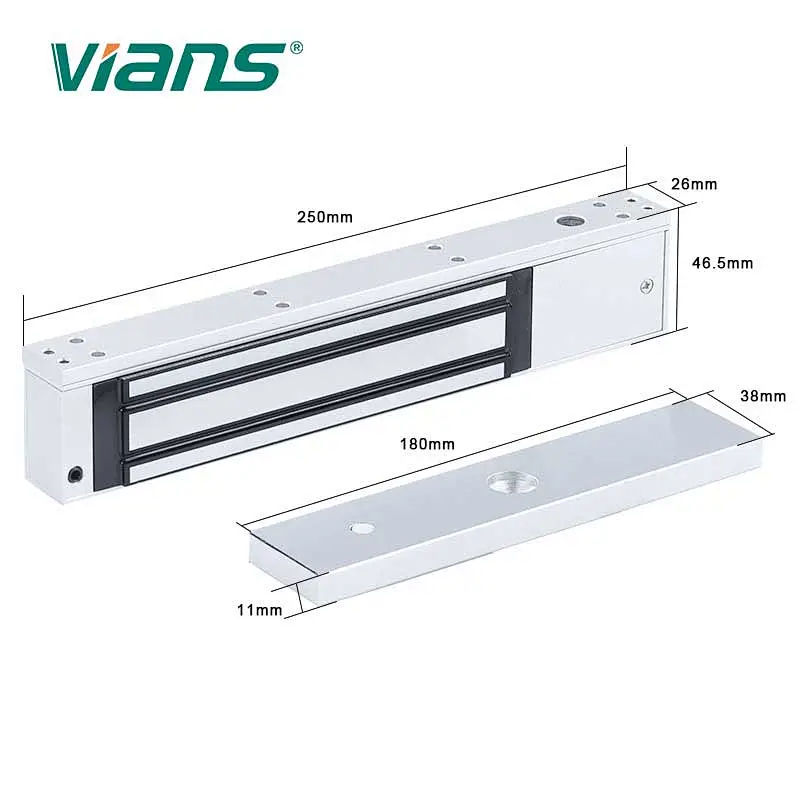

Lock Size | 250L*47W*26H(mm) |
Armature Plate Dimension | 180L*38W*11H(mm) |
Holding Force | 280kg(600Lbs) |
Signal output | LOCK signal + Door signal output |
Input Voltage | DC12V or DC24V |
Working Current | 12V/480mA 24V/240mA |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | YES or NO for option |
Security Type | Power off to open |
Weight | 2kg |
