- Place of Origin:Guangdong
- Brand Name:VIANS
- Model Number:VI-702SD
- Lock size:124*43.6*30.7
- Holding force:800KG
- Lock structure:Stainless steel
- Input voltage:DC12V/24V
- Working current:150mA
- Door type applicable:Wooden door/metal door/PVC door
- Signal output:YES
- Security type:Lock when power off/UnLock when power off
- Warranty:1 YEAR
- Weight:0.4kgs

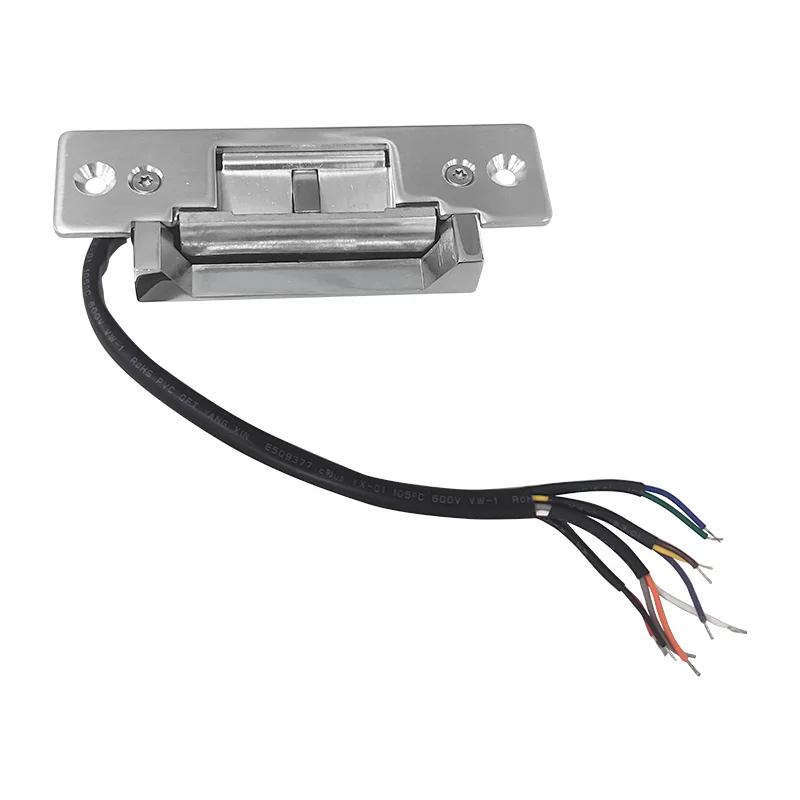

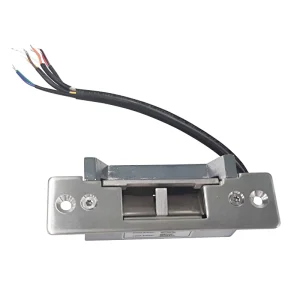

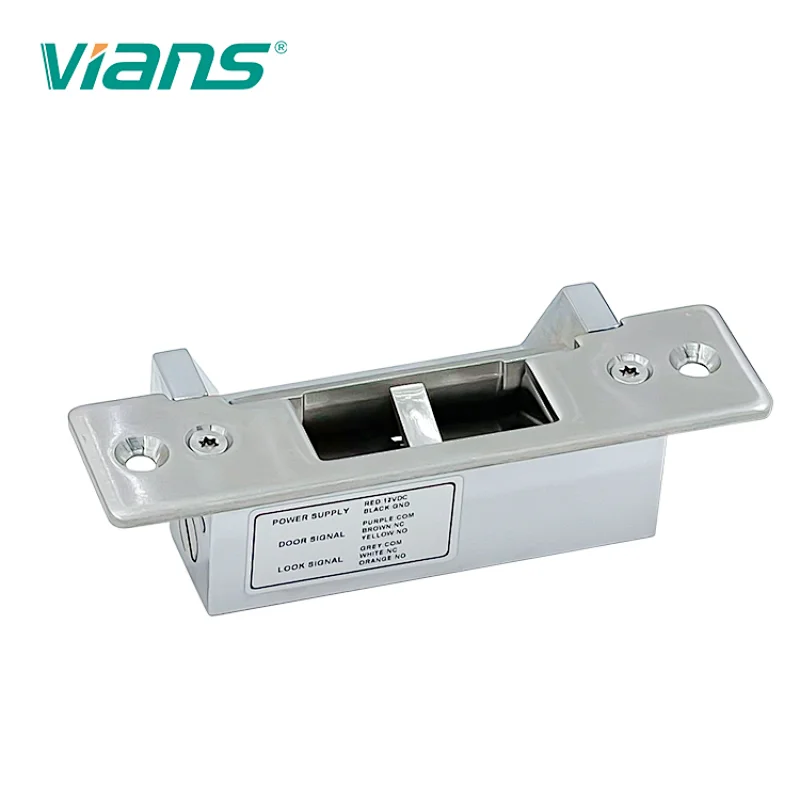

DC12/24V and Fail safe/Fail Secure Adjustable Electric strike lock with Monitored
Specification
Product Parameter | Parameter Description |
Lock Size | 124Lx43.6Wx30.7H(mm) |
Certificate | CE/FCC/ROHS |
Input Voltage | DC12V/24V |
Working Current | 150mA |
Opening Mode | 90 Degree Swing Door |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Signal output | Yes |
Security Type | Locked when energized / open when energized |
Contact | Dry contact |
Surface Temperature | Within +20°C |
Material of Housing | Stainless steel |
Weight | 0.4kgs |
Main advantage Feature
1. Bear 800kg impact pressure.
2. Special design, the lock bolt can adjust the distance.
3. It is especially suitable for the metal frame with hole for directly installation.
4. Pass the 500 000 times of aging test.
5.Fire Test Report.
1. Bear 800kg impact pressure.
2. Special design, the lock bolt can adjust the distance.
3. It is especially suitable for the metal frame with hole for directly installation.
4. Pass the 500 000 times of aging test.
5.Fire Test Report.

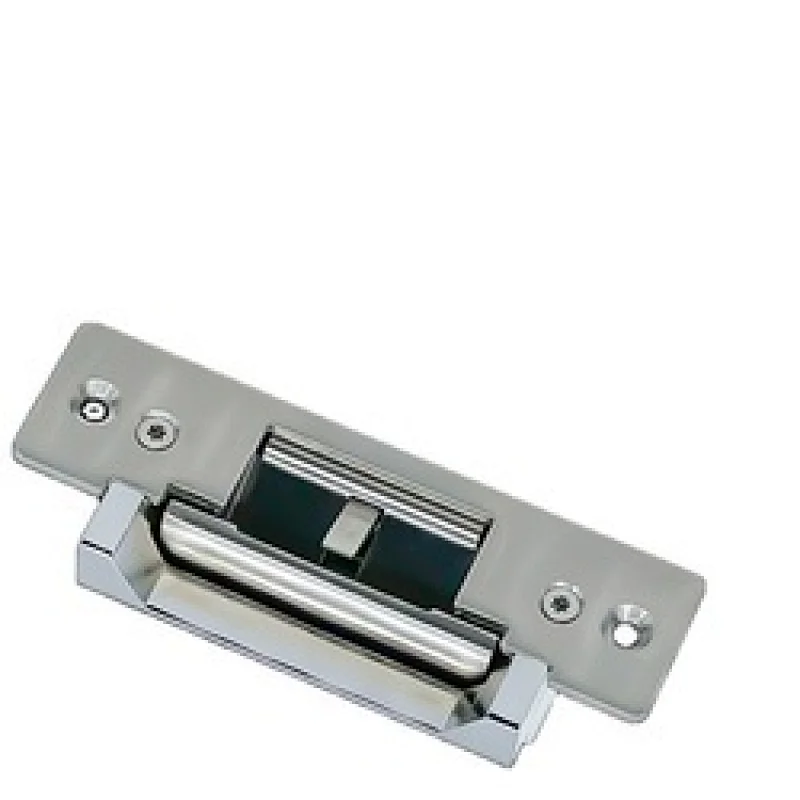

12v or 24v Voltage Door Strike Lock Fail Secure Electric Strike for mortise lock
The electric strike lock has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so
the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of
door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long timeworking, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last,with hardness stainless steel material, our stike can bear 800kg impact pressure.
the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of
door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long timeworking, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last,with hardness stainless steel material, our stike can bear 800kg impact pressure.

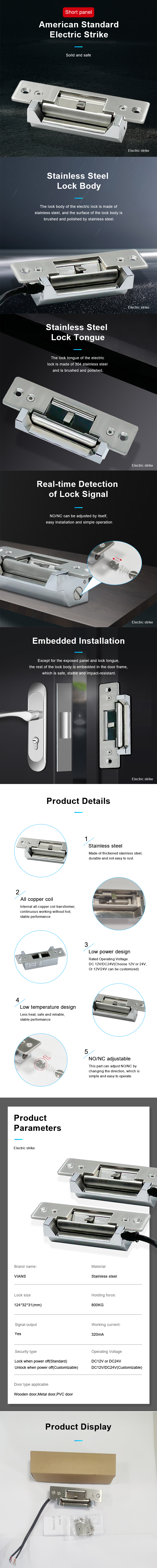

Product Description
