- Place of Origin:China
- Brand Name:TK
- Model Number:TK-300W
- Certification:CE/ROHS

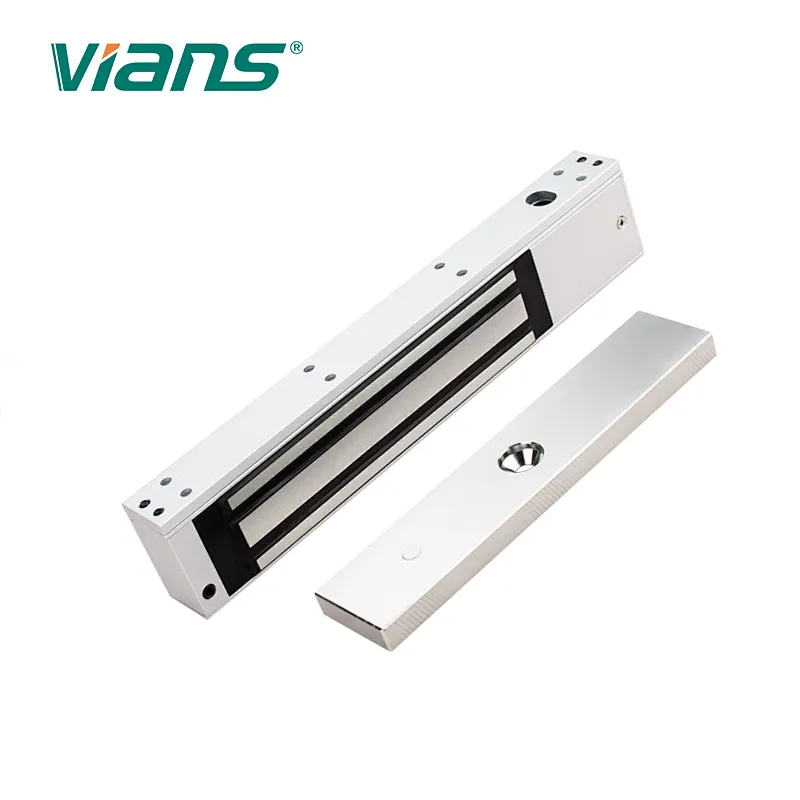

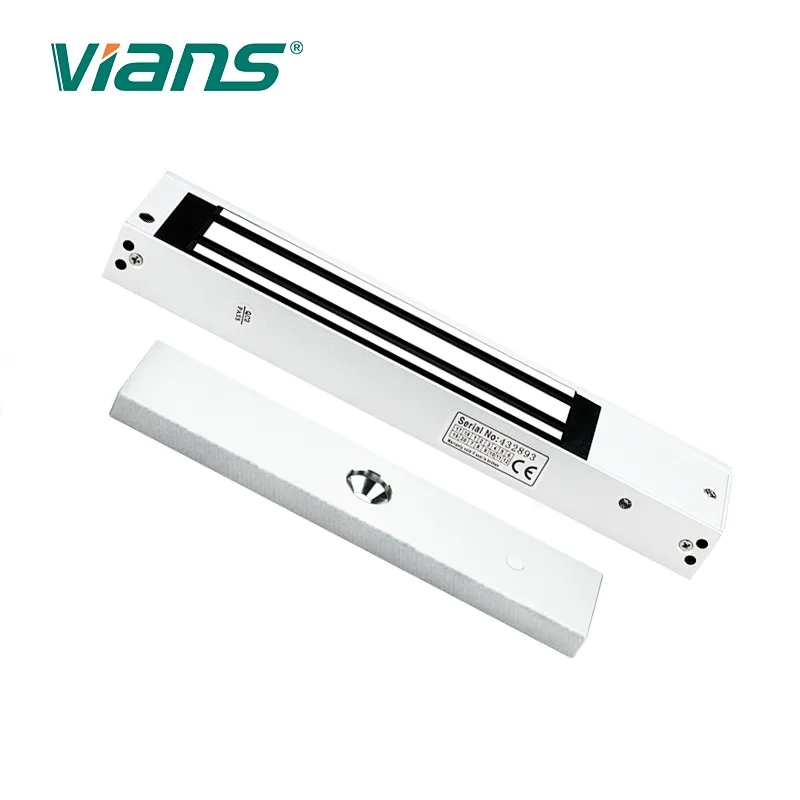

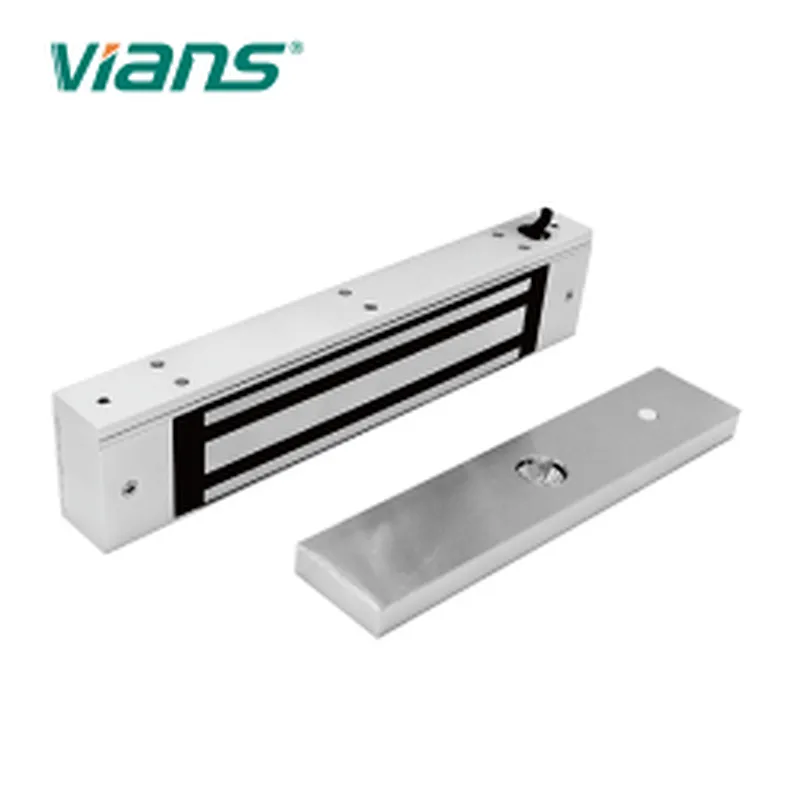

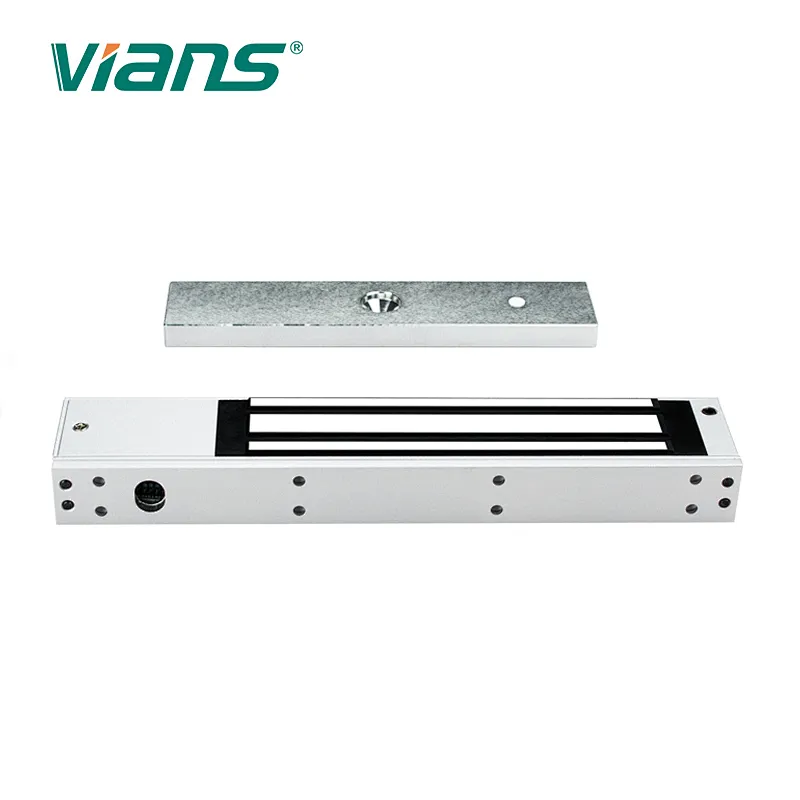

- Product Name:300KG(600LBS) Waterproof Electric Magnetic Door Lock
- Lock Size:230L*48W*26H(mm)
- Armature Plate Dimension:180L*38W*12H(mm)
- Holding Force:300kg(600lbs)
- Door Signal:No
- Time Delay:No
- Input Voltage:DC12V or DC24V
- Working Current:12V/460mA or 24V/220mA
- Door Type Applicable:Wooden/Glass/Metal/Fireproof Door
- Weight:2KG
Product Description
Product Feartures:
1. Powerful static linear holding force.2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
Specification
Model Number | TK-300ASW |
Certification | UL/CE/ROHS/FCC/MA |
Lock Size | 230L*48W*26H(mm) |
Armature Plate Dimension | 180L*38W*12H(mm) |
Holding Force | 300kg (600lbs) |
Door Signal | No |
Time Delay | No |
Input Voltage | DC12V or DC24V |
Working Current | 12V/460mA or 24V/220mA |
Application Door | Metal doors, wooden doors, fireproof doors, glass door |
Weight | 2KG |
