- Place of Origin:China
- Brand Name:TK
- Model Number:TK-280B
- Certification:UL/CE/ROHS/FCC

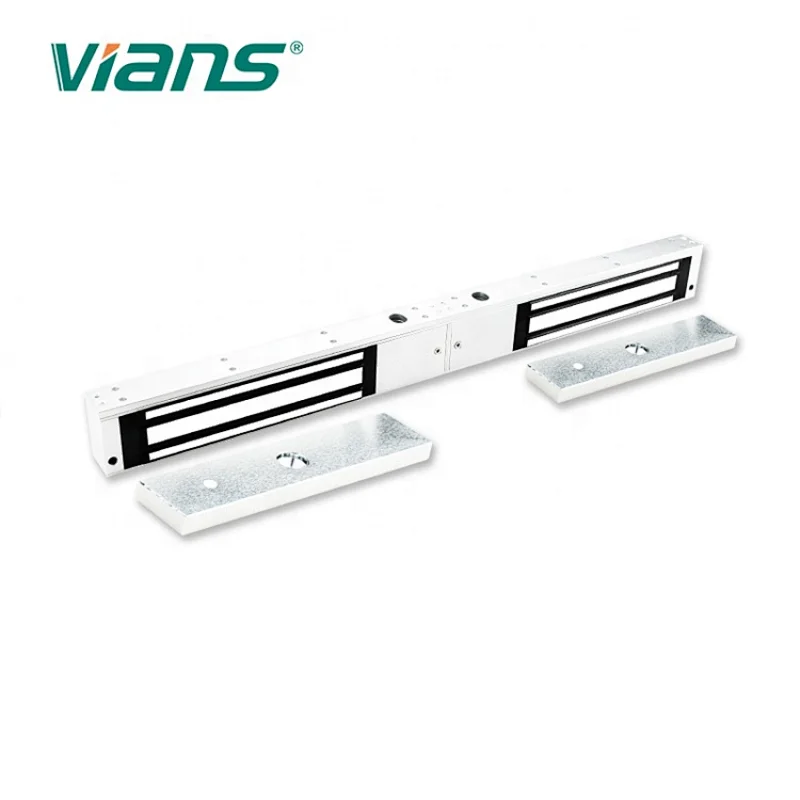

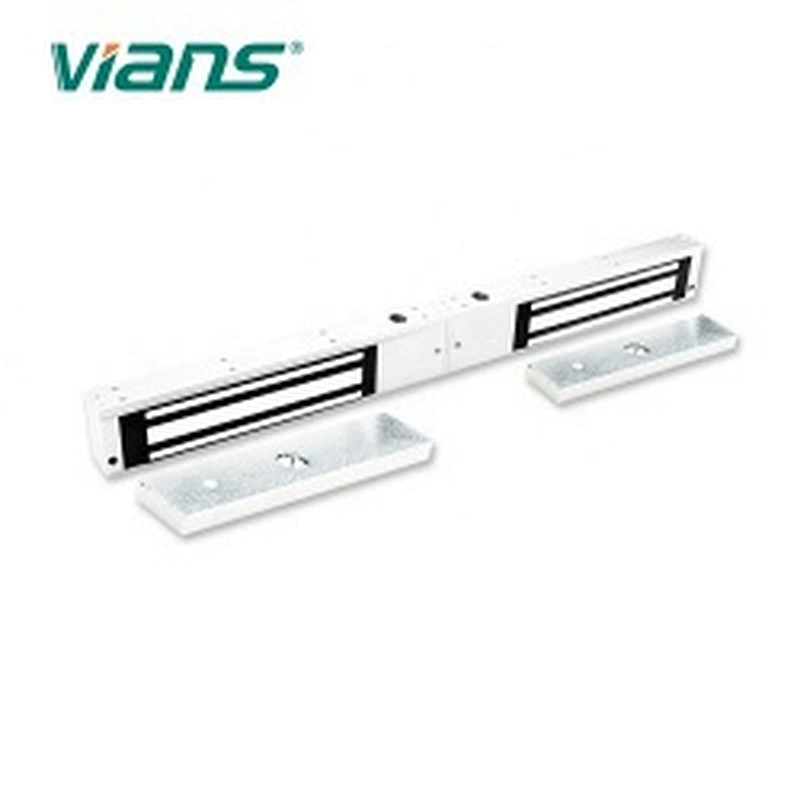

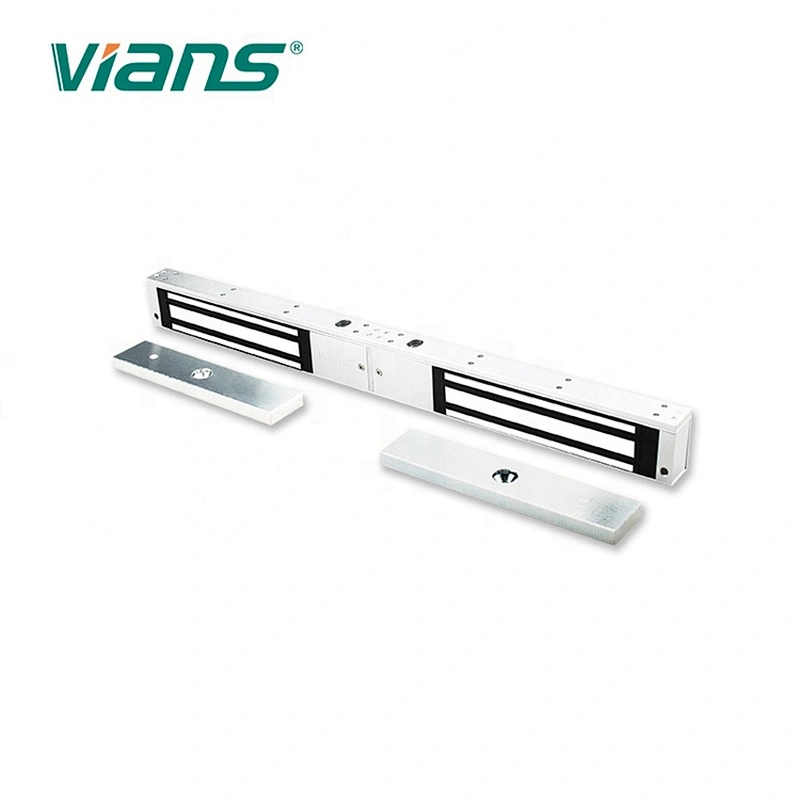

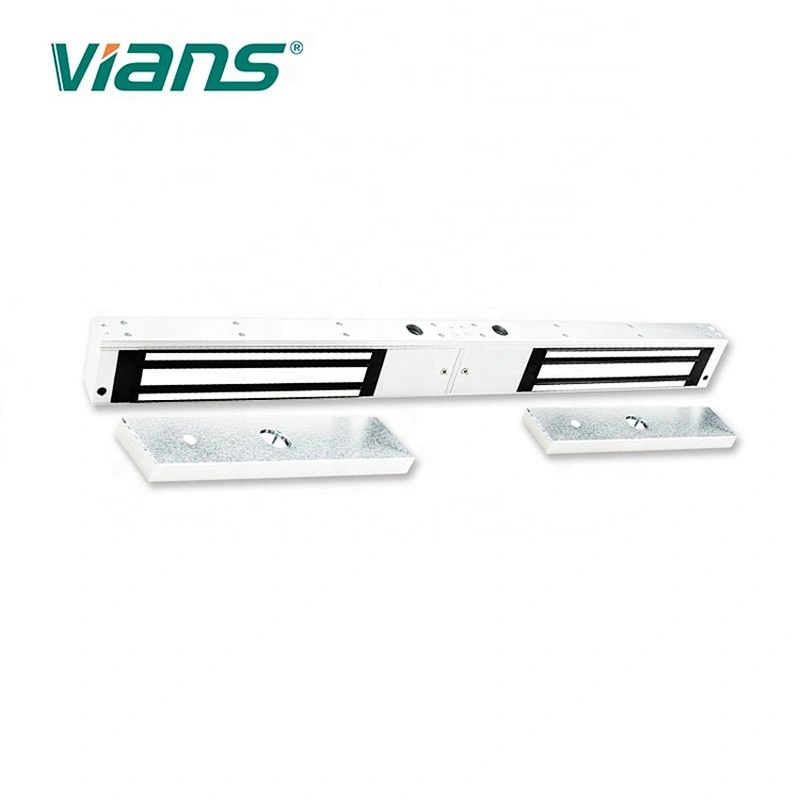

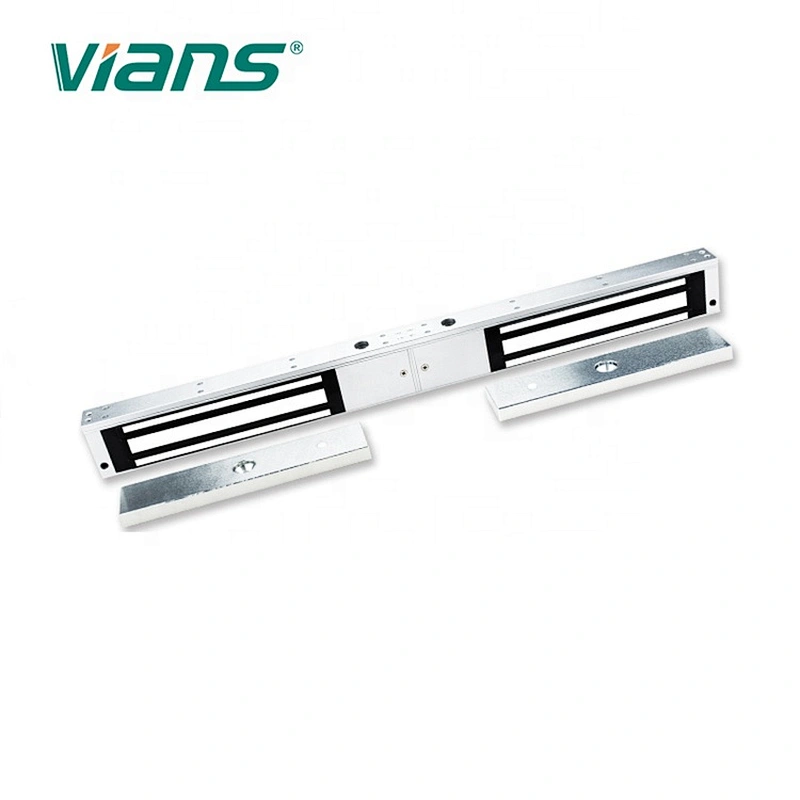

- Product Name:Double Door Magnetic Lock for Access Control System
- Lock Size:500L*47W*26H(mm)
- Armature Plate Dimension:180L*38W*11H(mm)
- Holding Force:280kg (600lbs)
- Input Voltage:DC12V
- Working Current:12V/480mA
- Surface Temp:≤+20℃
- Operating Temp:-10~+55℃
- Application Door:Metal doors, wooden doors, fireproof doors, glass door
- Weight:4KG
Product Description
Product Feartures:
1. With Strong holding force.
2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.

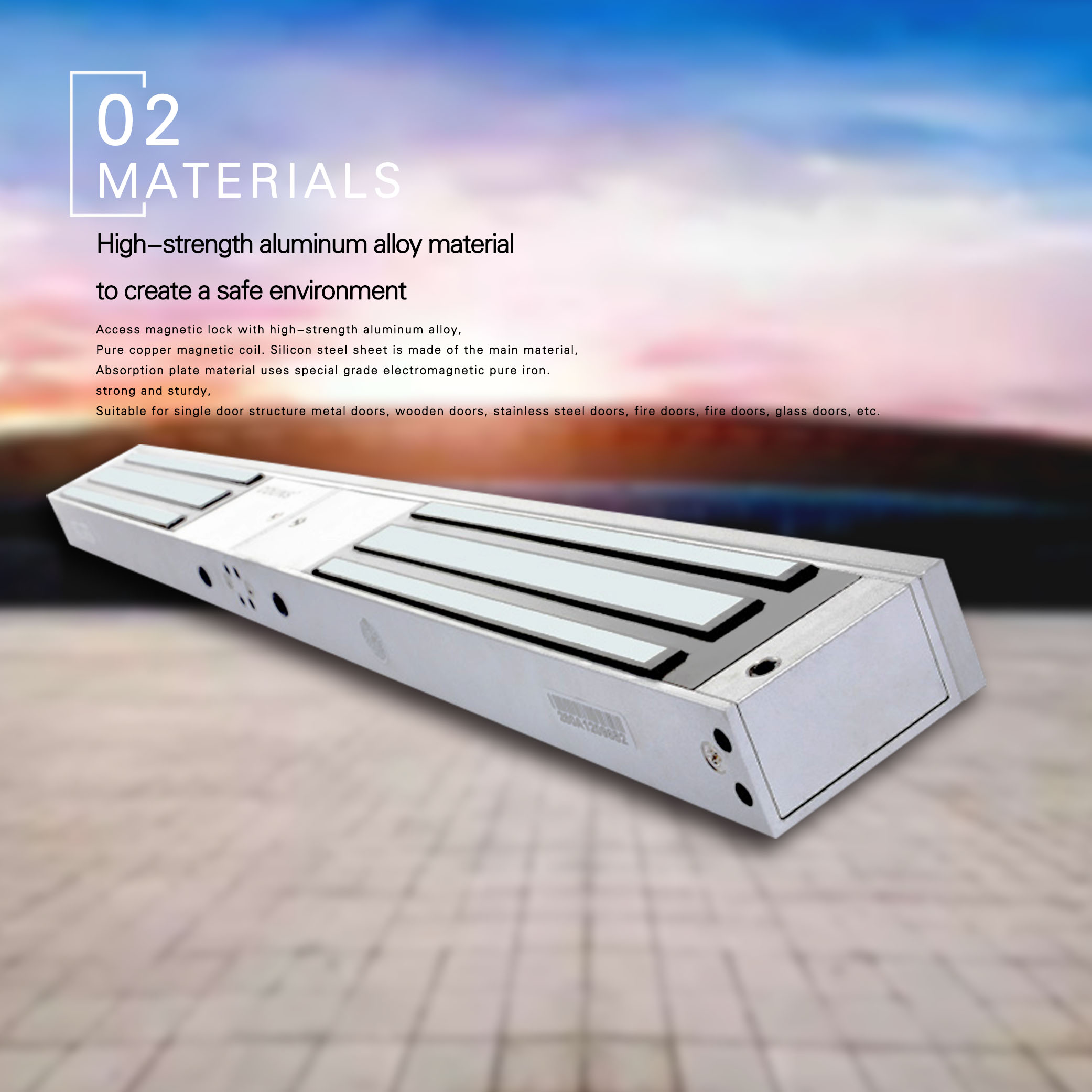

5. Shell is made of high-strength aluminum alloy, Anodized.
6. MA certified products of China / ce CERTIFICATION OF eu.
7. UL/CE/FCC/ROHS certification.
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. MA certified products of China / ce CERTIFICATION OF eu.
7. UL/CE/FCC/ROHS certification.
Specification
Model Number | TK-280D |
Certification | UL/CE/ROHS/FCC/MA |
Product Name | 280KG Electromagnetic Lock for Access Control System |
Lock Size | 500L*47W*26H(mm) |
Armature Plate Dimension | 180L*38W*11H(mm) |
Holding Force | 280kg (600lbs) |
Input Voltage | DC12V |
Working Current | 12V/480mA |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃ |
Application Door | Metal doors, wooden doors, fireproof doors, glass door |
Weight | 4KG |
Recommend Products
About Vians
Our Advantages
Packing & Delivery
FAQ
Send Message
Related Products
Model NO. VI-500A

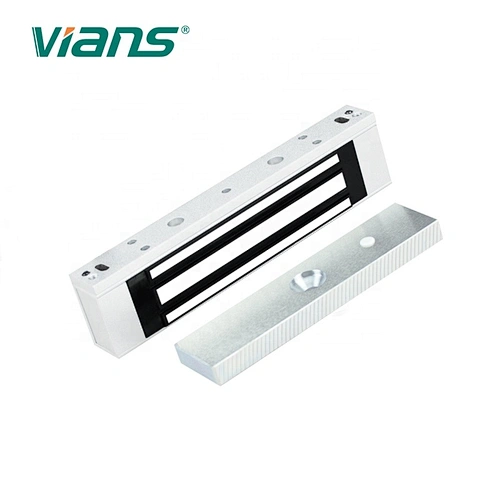

Model NO. TK-180A/180AS
