- Place of Origin:China
- Brand Name:TK
- Model Number:TK-280EA
- Certification:CE/ROHS/FCC
- Product Name:280KG/600LBS Remote Control Single Door Magnetic Lock
- Lock Size:229L*38W*27H(mm)
- Armature Plate Dimension:180L*38W*11H(mm)
- Holding Force:280kg (600lbs)
- Input Voltage:DC12V or DC24V
- Working Current:12V/480mA 24V/240mA
- Surface Temp:≤+20℃
- Operating Temp:-10~+55℃
- Application Door:Metal doors, wooden doors, fireproof doors, glass door
- Weight:2KG

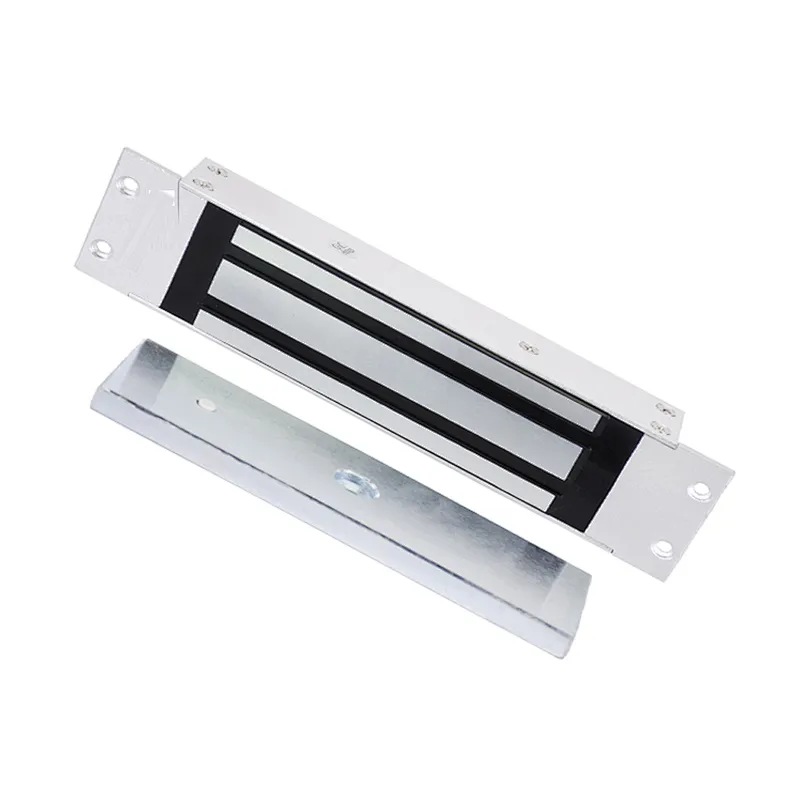

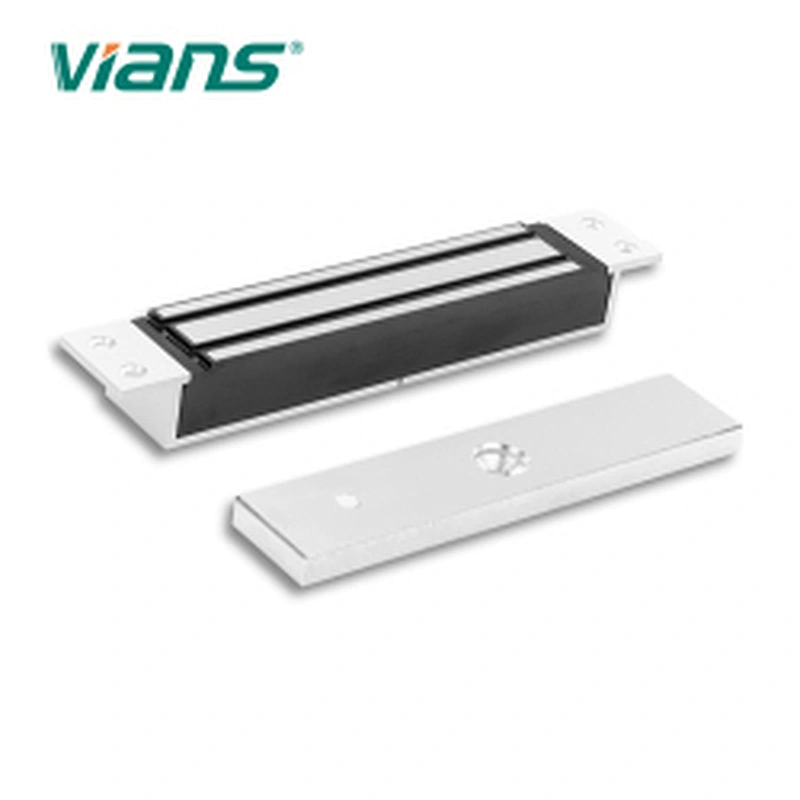

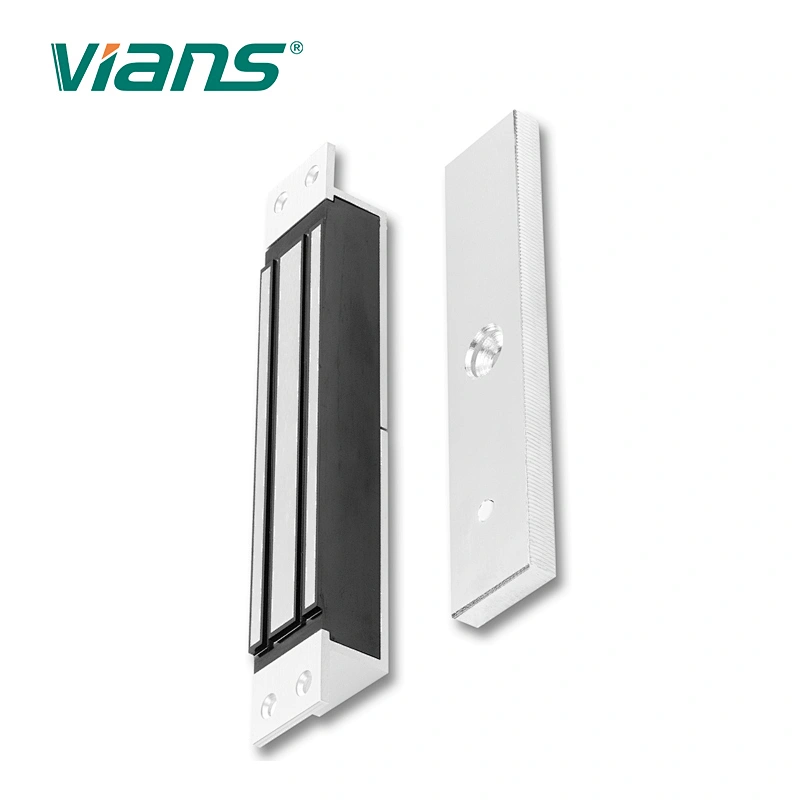

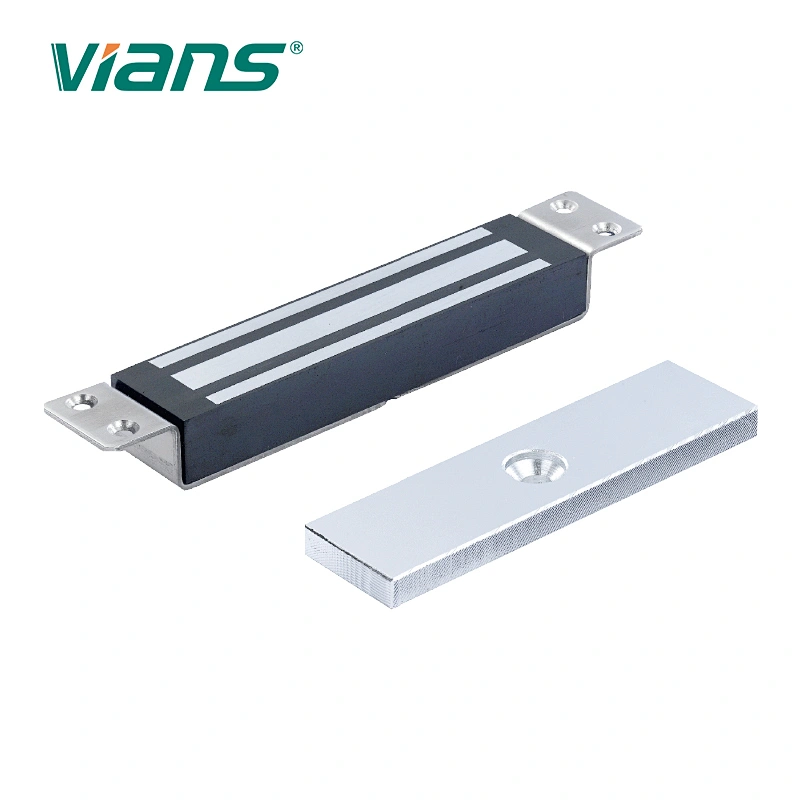

280KG/600LBS Remote Control Single Door Magnetic Lock
Product Description
Product Feartures:
1. Powerful static linear holding force.
2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
Specification
Model Number | TK-280EA |
Certification | UL/CE/ROHS/FCC/MA |
Product Name | 280KG Concealed Electromagnetic Lock for Single Door |
Lock Size | 229L*38W*27H(mm) |
Armature Plate Dimension | 180L*38W*11H(mm) |
Holding Force | 280kg (600lbs) |
Input Voltage | DC12V or DC24V |
Working Current | 12V/480mA 24V/240mA |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃ |
Application Door | Metal doors, wooden doors, fireproof doors, glass door |
Weight | 2KG |
