- Place of Origin:Guangdong, China
- Brand Name:VIANS
- Certification:CE/FCC/ROHS
- Lock Size:210L*42W*28.5H(mm)
- Armature Plate Dimension:185L*38W*12H(mm)
- Holding Force:280kg(600Lbs)
- Signal output:NO
- Input Voltage:DC12V or DC24V
- Working Current:12V/460mA 24V/220mA
- Door Type Applicable:Wooden door , Glass door ,Metal door , Fireproof door
- Security Type:Power off to open
- Weight:2.3kg

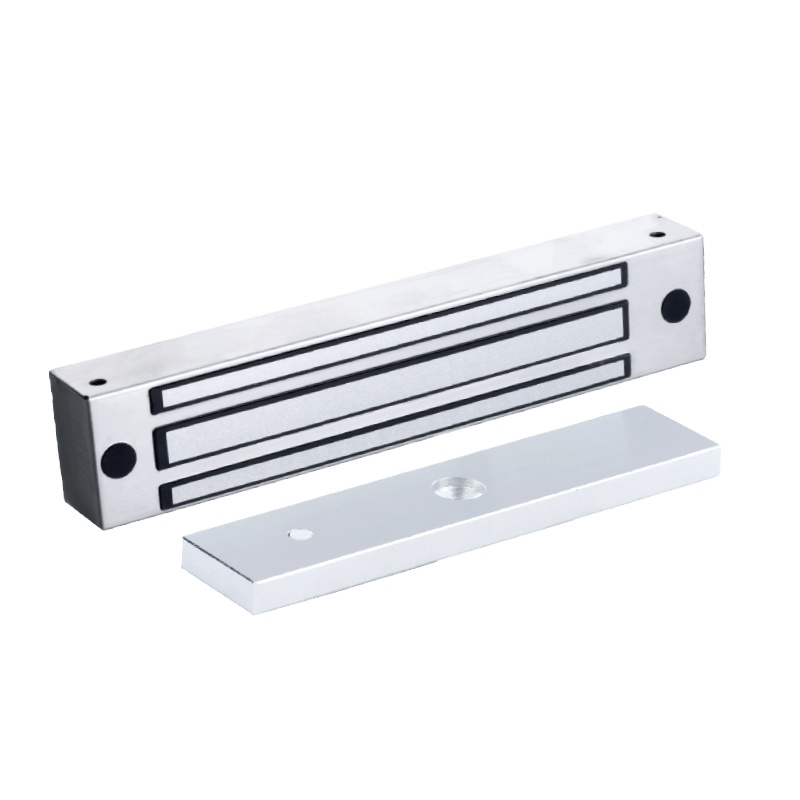

280KG 600Lbs Sigle Door Magnetic Lock waterproof
The VIANS Electromagnetic lock is using the leading production equipment and packaging technology of the international. Produced the electromagnetic lock is not only higher than similar products by more than 20% of the lock holding force, but also the antioxidant capacity of the surface of magnetic lock is reached the international advanced level. Which are widely used in airports, subways, banks, prisons, intelligent buildings
Advantage of the products
Shell is made of high-strength aluminum alloy, Anodized.
◆ Increase the holding Force, Dual Insulative Hosing.
◆ MA certified products of China / CE certification of EU.
◆ Complete electromagnetic suction working no mechanical failure.
◆ Collinear Load Test 280KG(600Lbs).
◆ Dual Voltage 12 or 24 VDC(optional).
◆ Built-in reverse current protection device (MOV).
◆ Anti residual magnetism design, anti-wear manufacturing materials.
Shell is made of high-strength aluminum alloy, Anodized.
◆ Increase the holding Force, Dual Insulative Hosing.
◆ MA certified products of China / CE certification of EU.
◆ Complete electromagnetic suction working no mechanical failure.
◆ Collinear Load Test 280KG(600Lbs).
◆ Dual Voltage 12 or 24 VDC(optional).
◆ Built-in reverse current protection device (MOV).
◆ Anti residual magnetism design, anti-wear manufacturing materials.
Products Parameter
Product Parameter | Parameter Description |

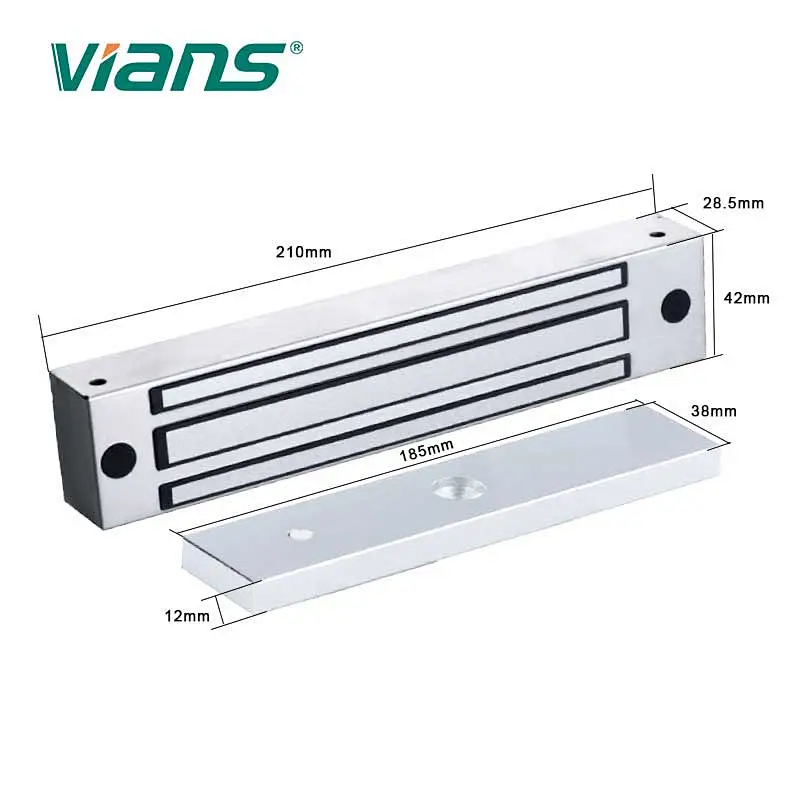

Lock Size | 210L*42W*28.5H(mm) |
Armature Plate Dimension | 185L*38W*12H(mm) |
Holding Force | 280kg(600Lbs) |
Signal output | NO |
Input Voltage | DC12V or DC24V |
Working Current | 12V/460mA 24V/220mA |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | NO |
Security Type | Power off to open |
Weight | 2.3kg |
