- Place of Origin:Guangdong, China
- Brand Name:Vians
- Certification:CE/ROHS/FCC

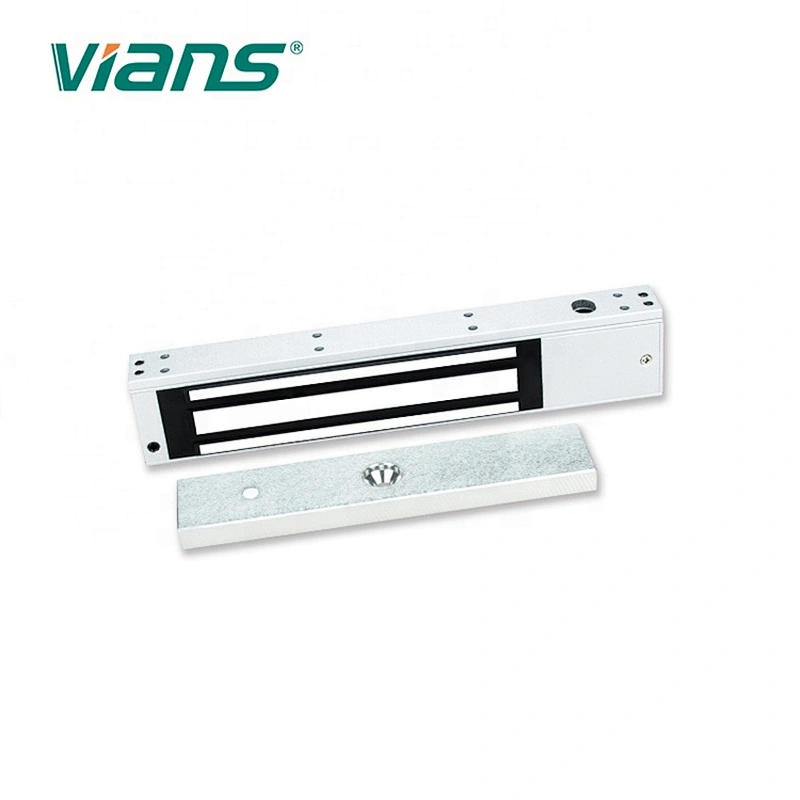

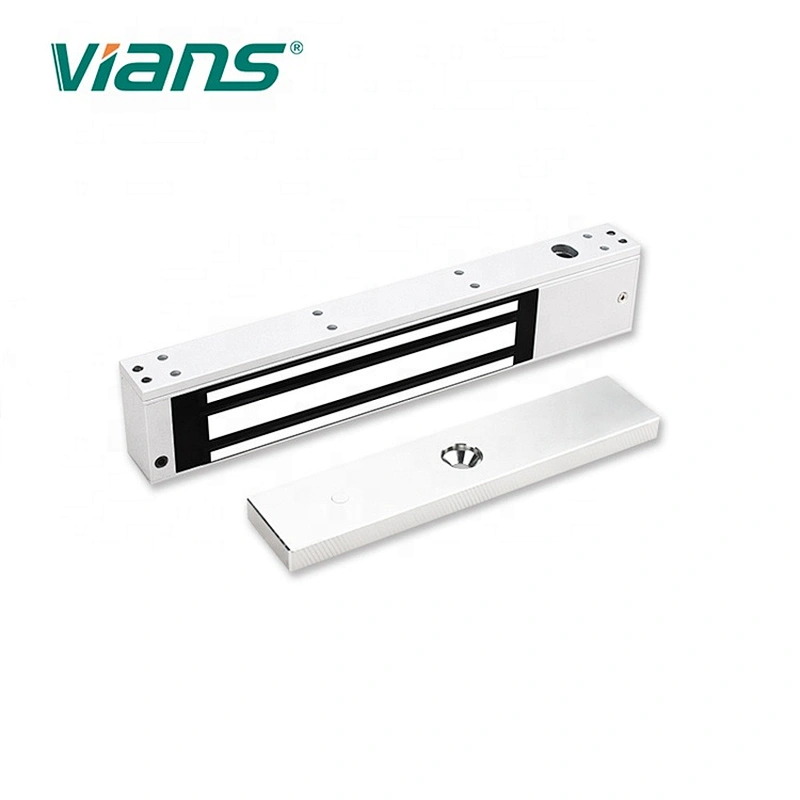

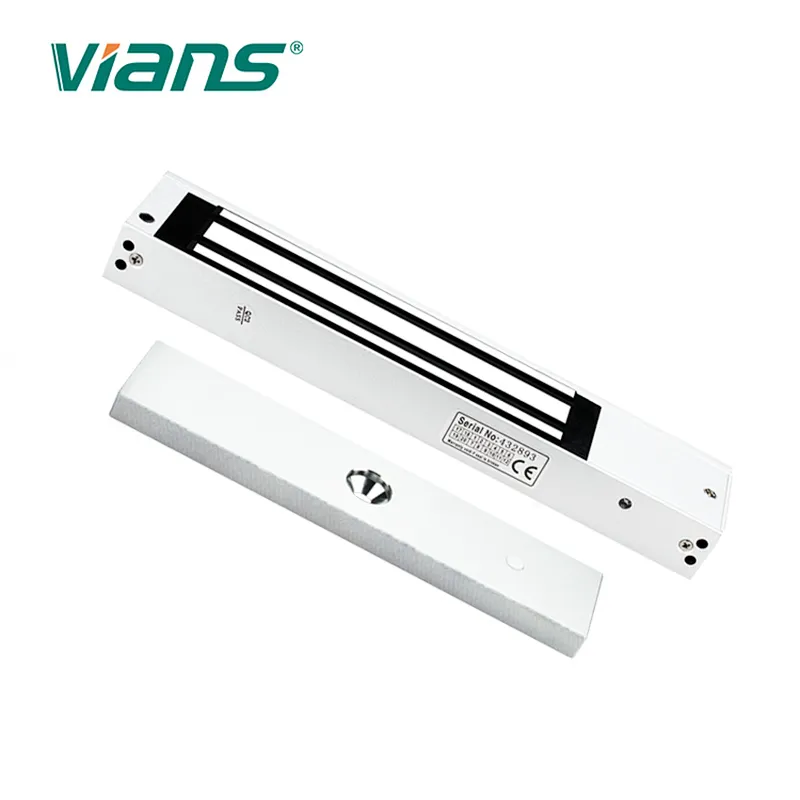

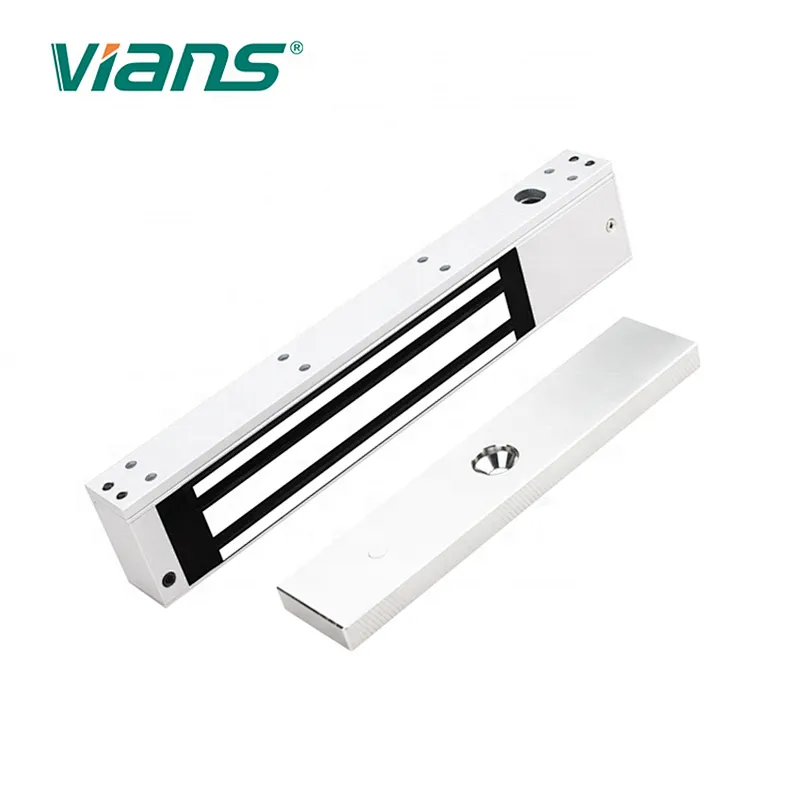

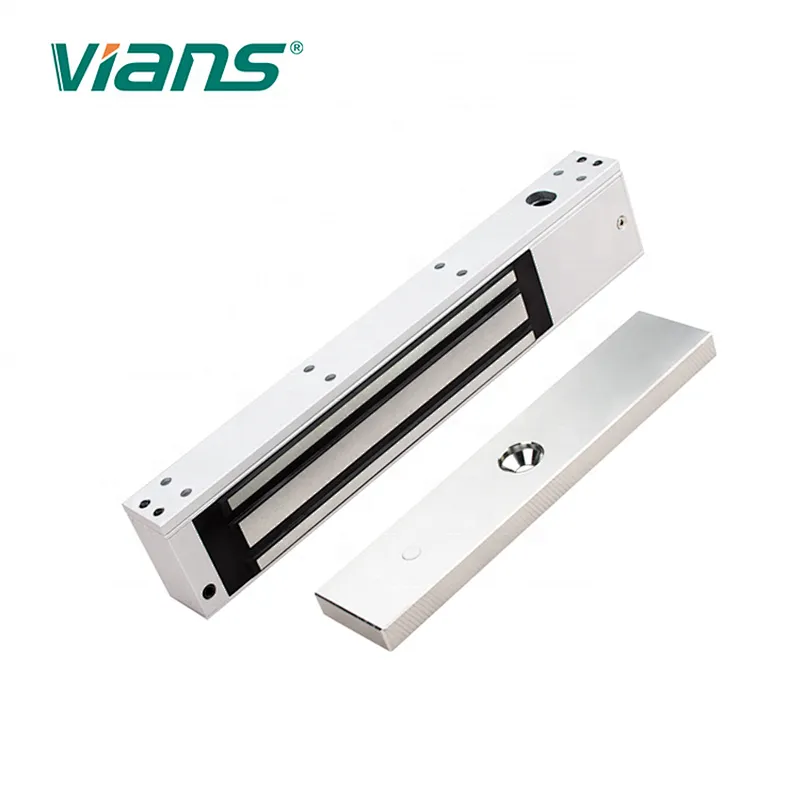

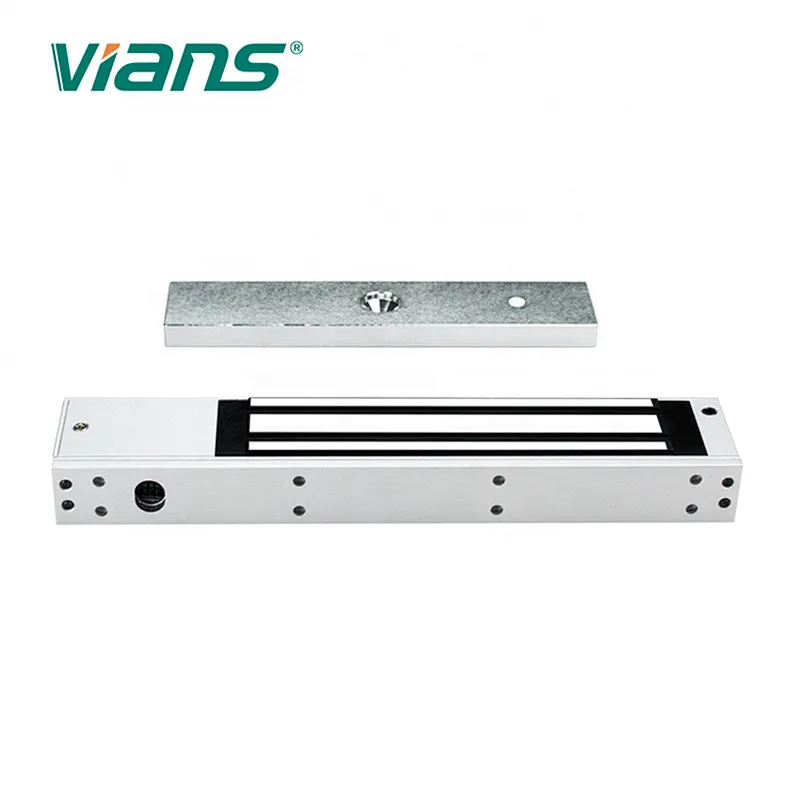

- Product Name:Single Door Magnetic Lock
- Lock Size:250L*47W*26H(mm)
- Armature Plate Dimension:180L*38W*11H(mm)
- Holding Force:280kg(600Lbs)
- Input Voltage:DC12V or DC24V
- Working Current:12V/480mA 24V/240mA
- Door Type Applicable:Wooden door , Glass door ,Metal door , Fireproof door
- Time Delay:NO
- Security Type:Power off to open
- Weight:2kg
Product Description
Product Feartures:
1. Powerful static linear holding force.2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
1. Powerful static linear holding force.2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
Specification
Lock Size | 250L*47W*26H(mm) |
Armature Plate Dimension | 180L*38W*11H(mm) |
Holding Force | 280kg(600Lbs) |
Signal output | YES |
Input Voltage | DC12V or DC24V |
Working Current | 12V/480mA 24V/240mA |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | NO |
Security Type | Power off to open |
Weight | 2kg |
Certification | UL/CE/FCC/ROHS |
