- Place of Origin:GUA
- Brand Name:VIANS
- Model Number:TK-60A
- Certification:CE/FCC/ROHS

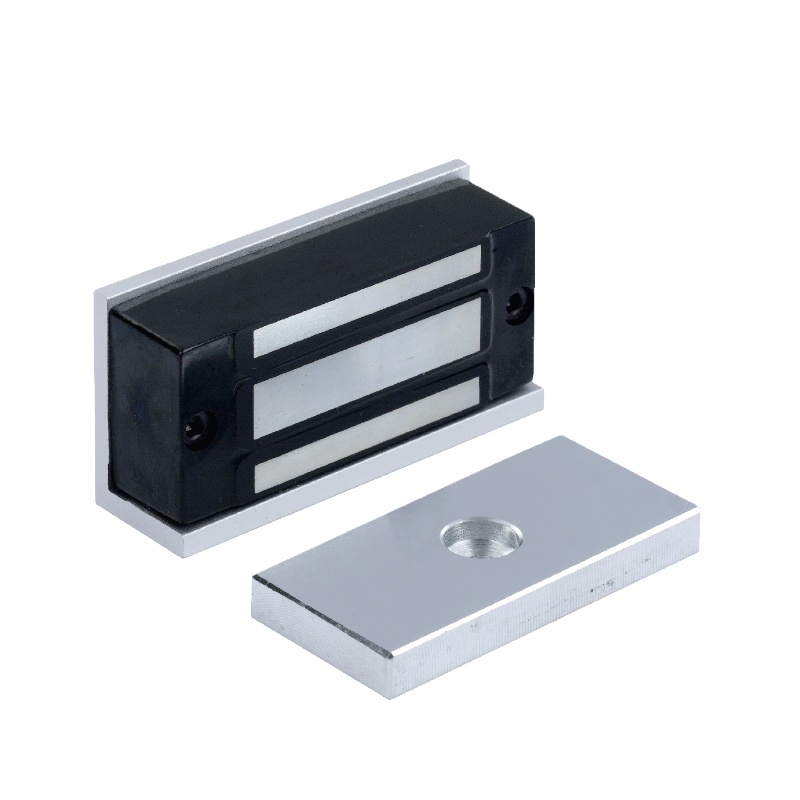

- Product Name:Mini Magnetic Lock
- Lock Size:80Lx41Wx25H(mm)
- Armature Plate Dimension:70Lx33Wx9H(mm)
- Holding Force:60kg(132Lbs)
- Input Voltage:DC12V±10%
- Current Draw:110mA
- Surface Temp:≤+20℃
- Operating Temp:-10~+55℃

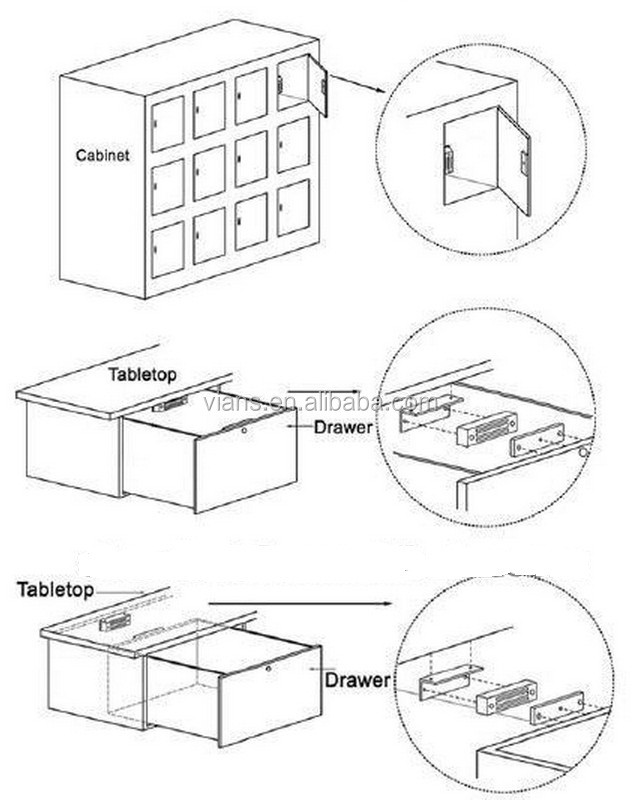

- Application Door:File Cabinet ,Disply Cabinet
- Weight:0.5KG
Product Description
Mini Electromagnetic Lock for Cabinets, Lockers, Showcases
- Input voltage: 12V DC
- Holding Force: 60 kg (132 lbs)
- Suitable for: showcases, cabinet doors, etc.
- Finishes for Shell: Anodized aluminum
- Finishes for Magnetic Component(s): Zinc
- Finishes for Armature: Zinc
Smooth Surface,Full Holding Force,Avoid Sucking Uncompletely ,Anti-rust,Salt Spray Test for 1000 hours,longer service life.Internal six angle screw design,anti theft.
1.Passed 100 lb linear static tension tests.
2.Anti-residual magnetic designs keeps constant tension.
3.Built-in reverse current protection device (MOV) allows for performance stability and a high factor of safety.
4.Made from wear-resistant, durable materials.
5.Electromagnetic locking force is strong enough to ensure no mechanical failure during use.
6.Shell is constructed from a high-strength alloy material that has undergone anode hardening treatment.
7.Lock body features double insulation treatment.
- Input voltage: 12V DC
- Holding Force: 60 kg (132 lbs)
- Suitable for: showcases, cabinet doors, etc.
- Finishes for Shell: Anodized aluminum
- Finishes for Magnetic Component(s): Zinc
- Finishes for Armature: Zinc
Smooth Surface,Full Holding Force,Avoid Sucking Uncompletely ,Anti-rust,Salt Spray Test for 1000 hours,longer service life.Internal six angle screw design,anti theft.
1.Passed 100 lb linear static tension tests.
2.Anti-residual magnetic designs keeps constant tension.
3.Built-in reverse current protection device (MOV) allows for performance stability and a high factor of safety.
4.Made from wear-resistant, durable materials.
5.Electromagnetic locking force is strong enough to ensure no mechanical failure during use.
6.Shell is constructed from a high-strength alloy material that has undergone anode hardening treatment.
7.Lock body features double insulation treatment.
Specification
item | value |
Place of Origin | GUA |
Brand Name | VIANS |
Model Number | TK-60A |
Certification | CE/FCC/ROHS |
Product Name | Mini Magnetic Lock |
Lock Size | 80Lx41Wx25H(mm) |
Armature Plate Dimension | 70Lx33Wx9H(mm) |
Holding Force | 60kg(132Lbs) |
Input Voltage | DC12V±10% |
Current Draw | 110mA |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃ |
Application Door | File Cabinet ,Disply Cabinet |
Weight | 0.5KG |
Packing & Delivery
12PCS/CARTON
Company Profile
Shenzhen VIANS Technology Co., Ltd. is specialized in R&D and production of access control Products, including SMART cylinder,Smart Handle lock and Electirc locks Automatic door opener, other access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our workers are well trained and can provide very professional work.QC staffs make piece-by-piece checks for all products, our electric locks passed UL certification. our quality can be ensured to meet international Standards. We are proud of our high quality products and first-rate services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for smart AIOT home and access control products in security sector! Vians will be always devoted to offer good quality and new design products, and brings moreconvenient, more secure complete electric locks to the project application to create much morevalue to our customers. We are commit to produce convenient installation, safety and reliableproducts, this is our product conceptions and also commitment to our customers
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Mid East(16.00%),South America(15.00%),North America(12.00%),Southeast Asia(12.00%),Oceania(7.00%),Eastern Asia(7.00%),Western Europe(6.00%),Eastern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(2.00%),Domestic Market(2.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smart Home Iot Service,Elelctric Lock,Automatic Door Operator,Access Control,Accessories
4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2020,sell to Mid East(16.00%),South America(15.00%),North America(12.00%),Southeast Asia(12.00%),Oceania(7.00%),Eastern Asia(7.00%),Western Europe(6.00%),Eastern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(2.00%),Domestic Market(2.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smart Home Iot Service,Elelctric Lock,Automatic Door Operator,Access Control,Accessories
4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Send Message
Related Products

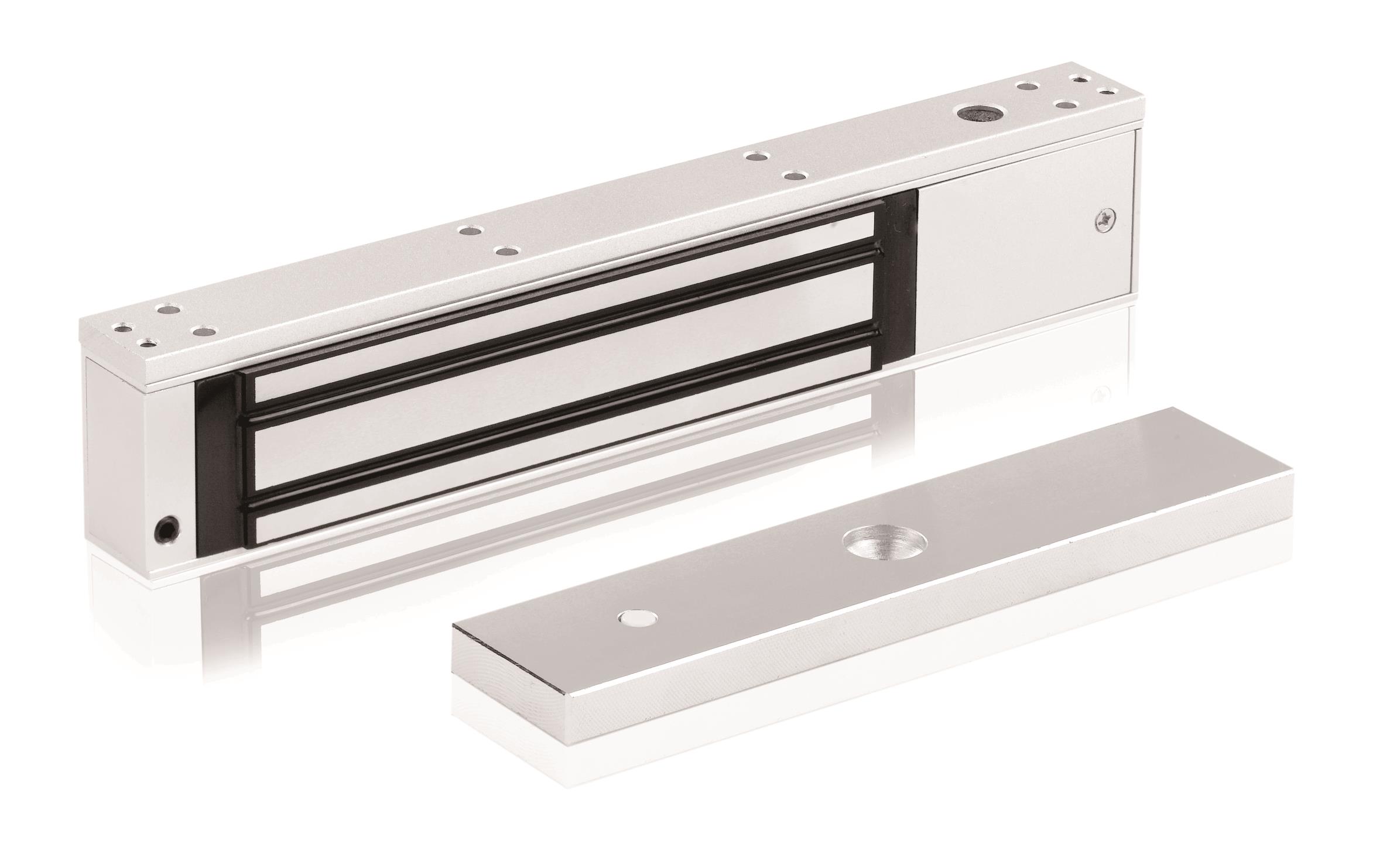

Model NO. VI-500A
