- Place of Origin:Guangzhou
- Brand Name:Vians
- Model Number:TK-180
- Certification:CE/FCC/Rohs

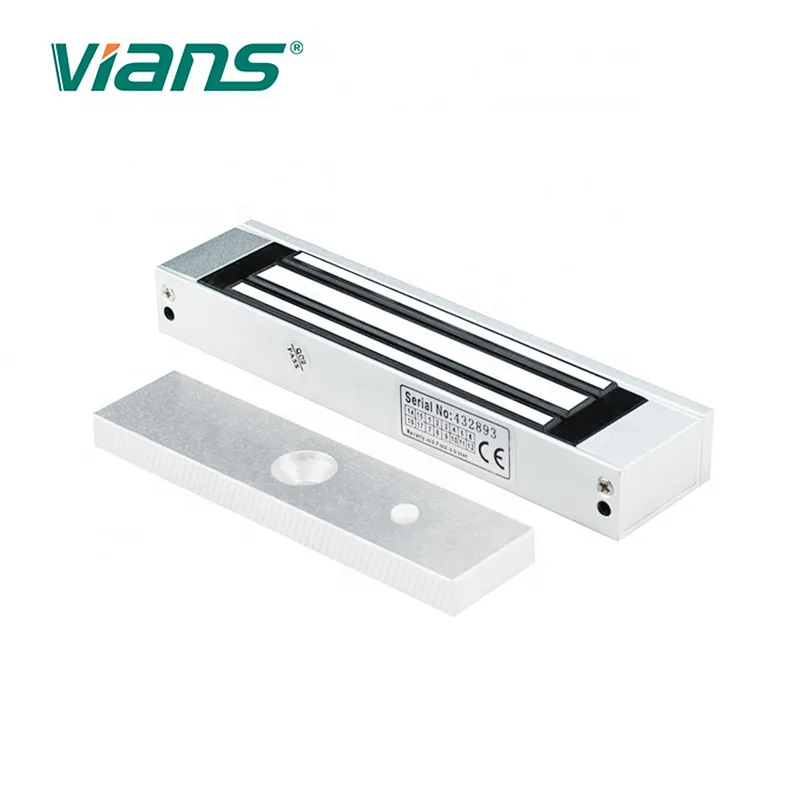

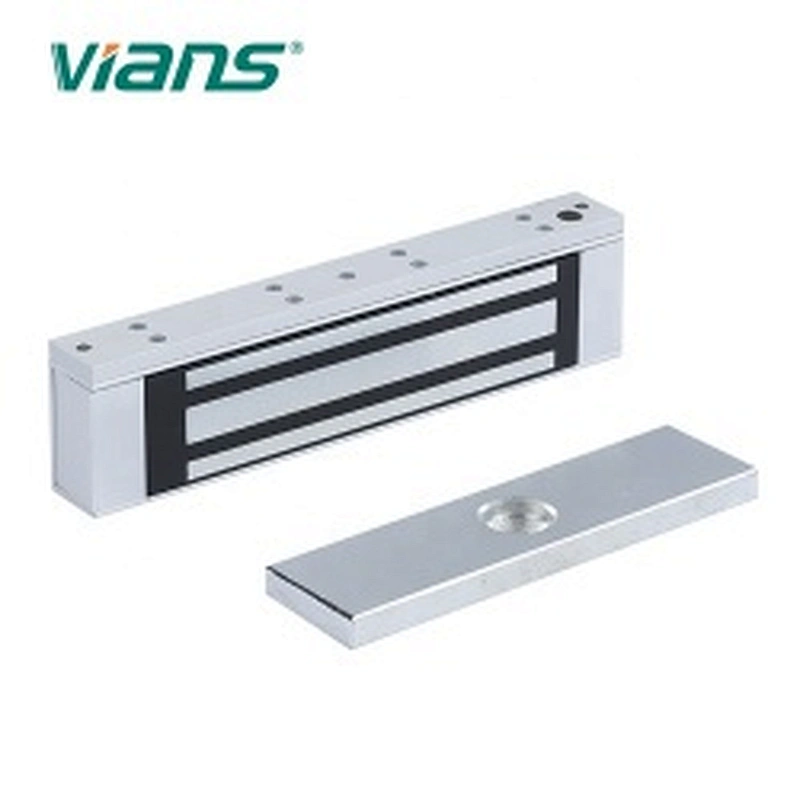

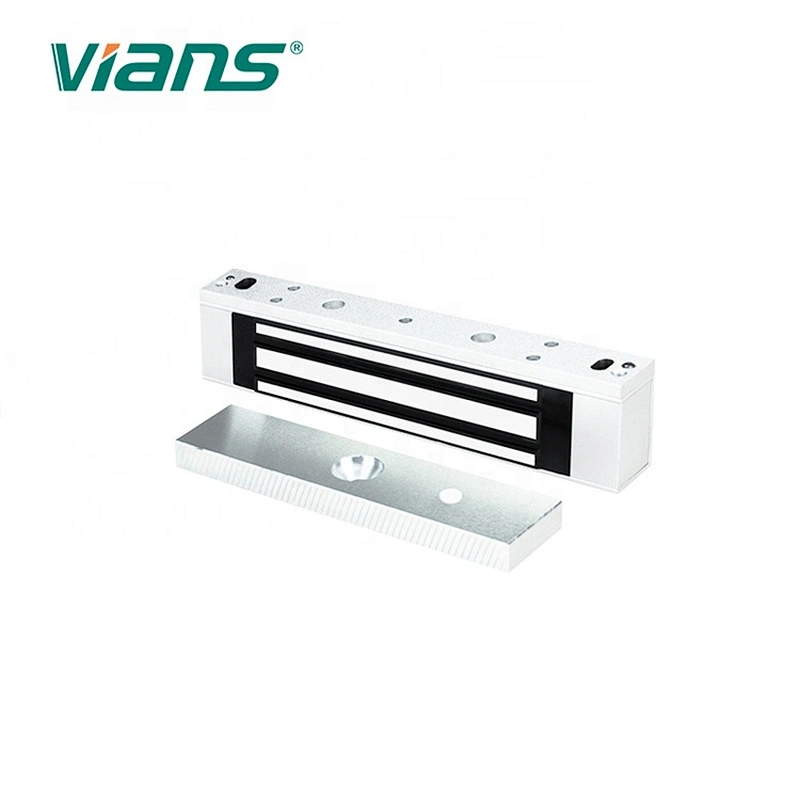

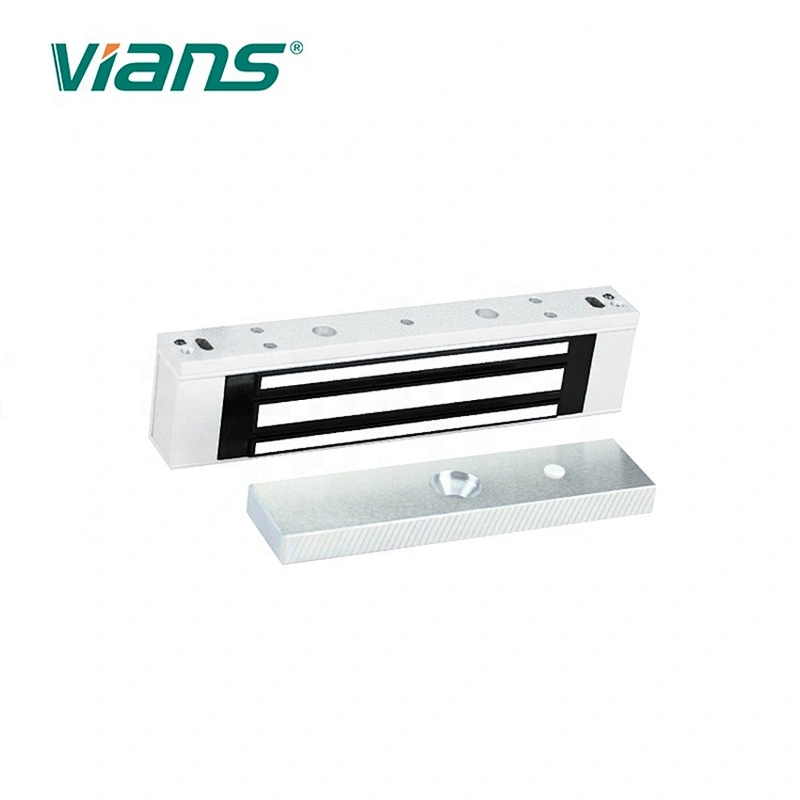

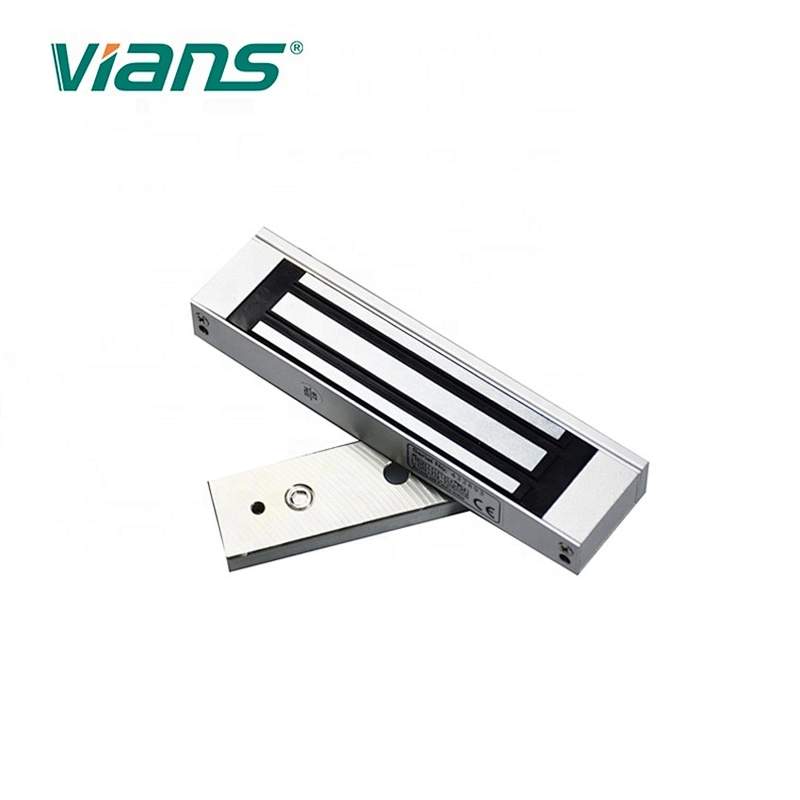

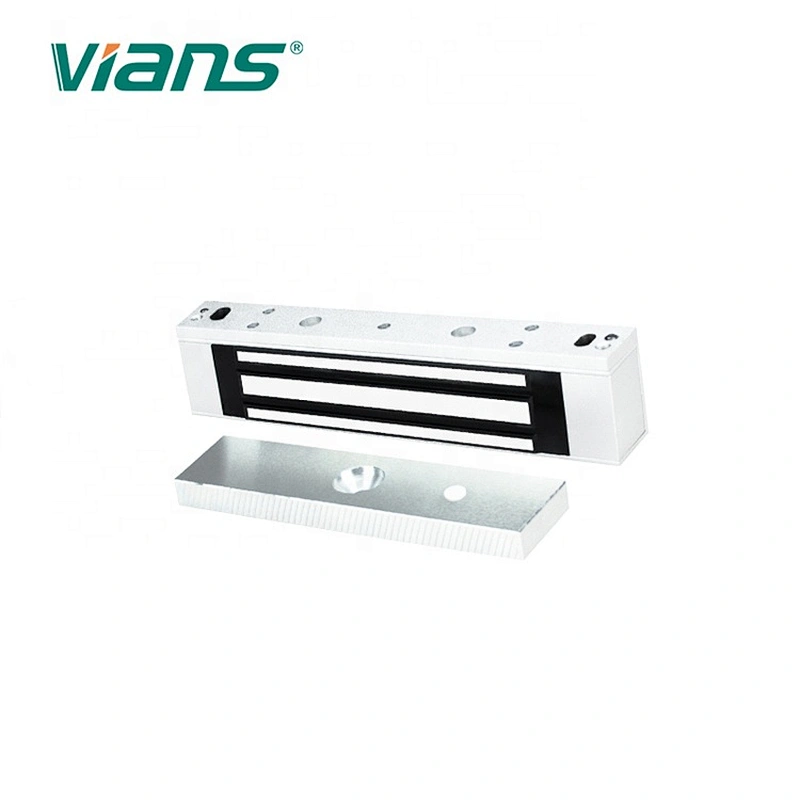

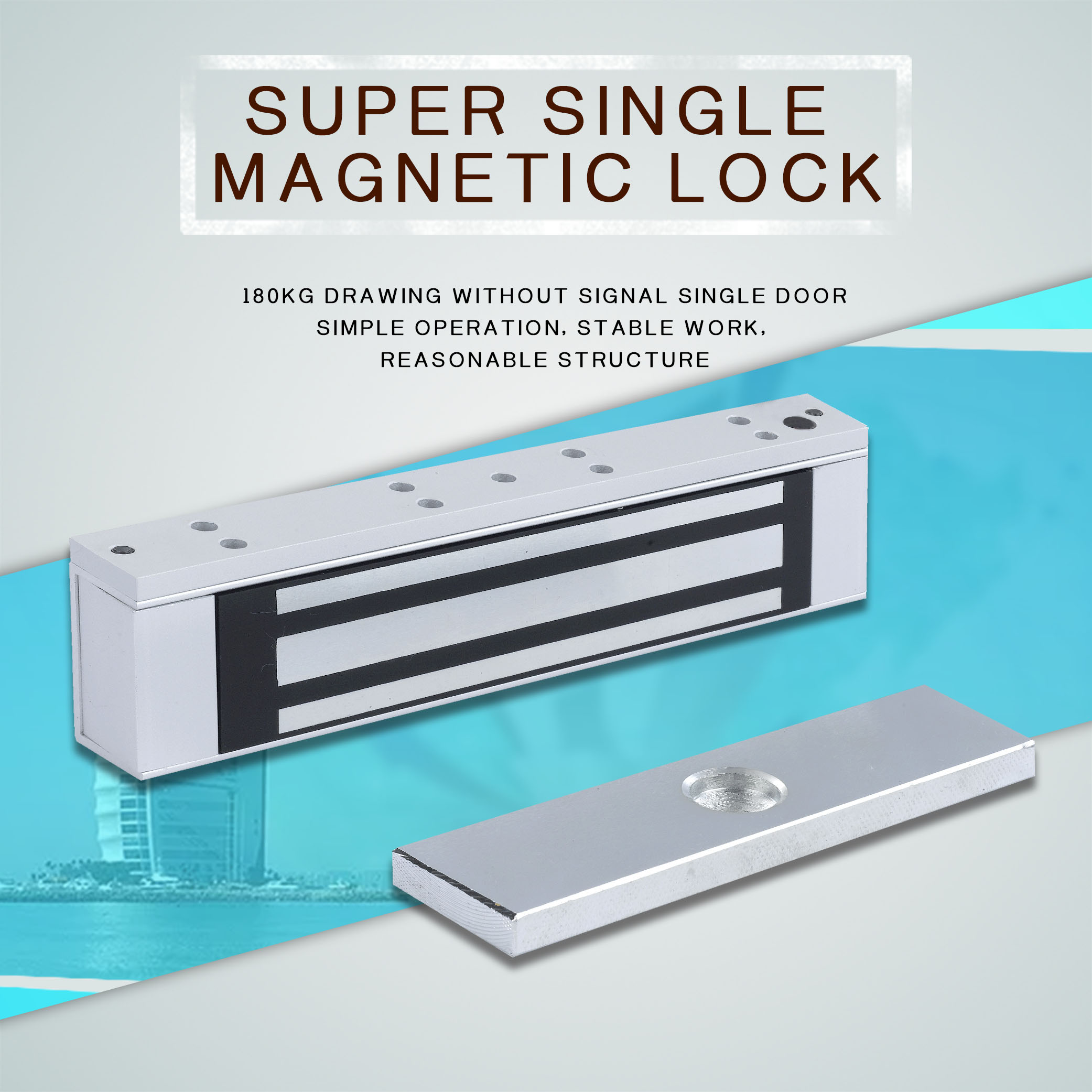

- Product Name:Single Door Magnetic Lock for magnetic lock for interior doors

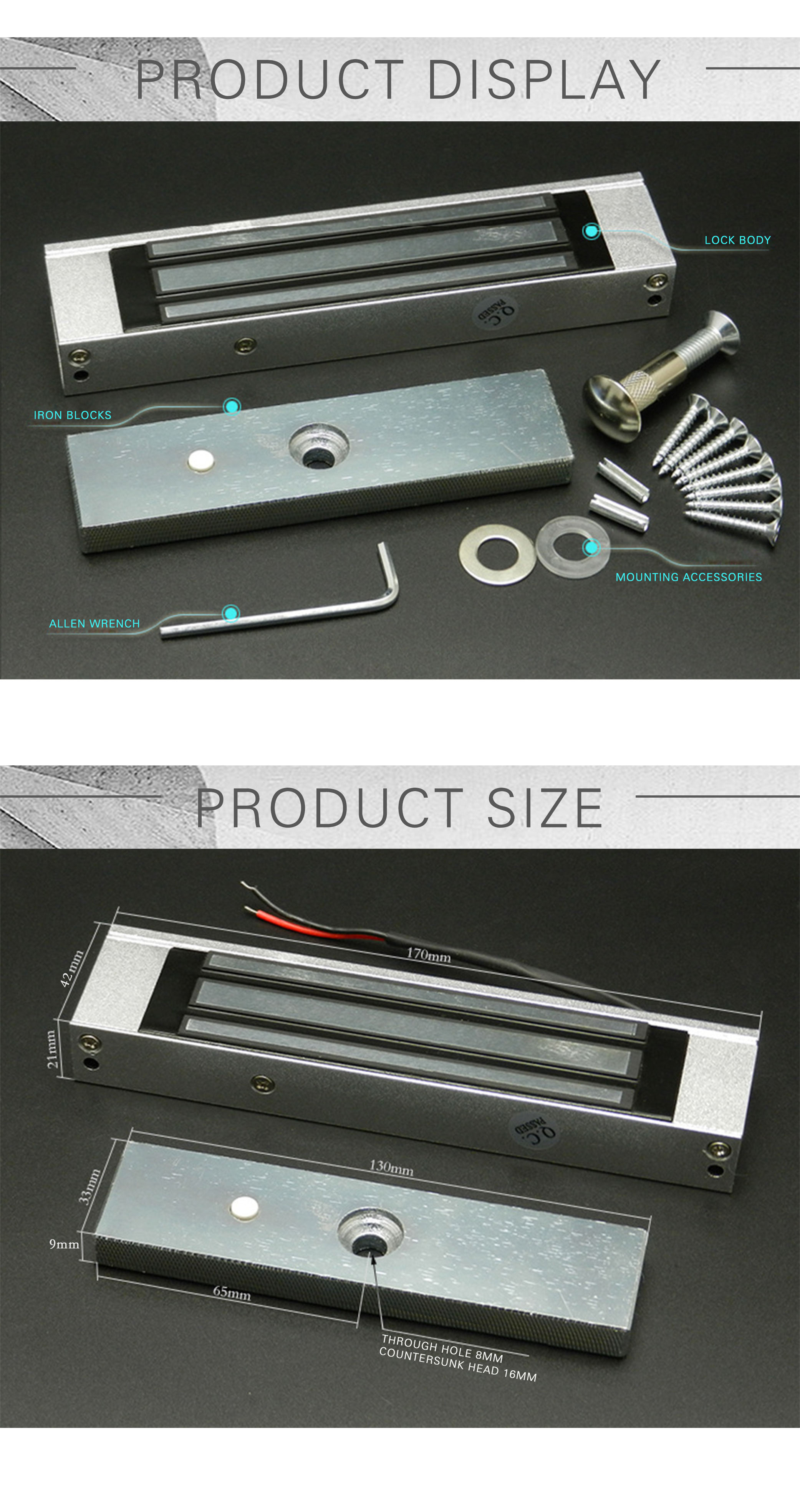

- Lock Size:170L*42W*21H(mm)
- Armature Plate Dimension:130L*33W*9H(mm)
- Holding Force:180kg(350Lbs)
- Input Voltage:DC12V or DC24V
- Working Current:12V/300mA 24V/150mA
- Door Type Applicable:Wooden door , Glass door ,Metal door , Fireproof door
- Time Delay:NO
- Security Type:Power off to open
- Weight:1.2kg
Product Description
Why Choose Vians ?
1, we are 100% factory , our magnetic lock offer 5 years warranty.
2, FREE OEM don't have MOQ requires;
,our 180Kg 350lbs single door small electromagnetic lock,specially used to normal glass door,wodden door,metal door,fire doors, small doors.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Specification
Lock Size | 170L*42W*21H(mm) |
Armature Plate Dimension | 130L*33W*9H(mm) |
Holding Force | 180kg(350Lbs) |
Signal output | Yes |
Input Voltage | DC12V or DC24V |
Working Current | 12V/300mA 24V/150mA |
Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay | NO |
Security Type | Power off to open |
Weight | 1.2kg |
Certification | CE/FCC/ROHS |
