- Special Features:Waterproof / Weatherproof, Touch Screen
- Place of Origin:Guangdong, China
- Brand Name:Vians
- Model Number:TK-TW02-P
- Name:Tuya APP wifi Access Control keypad
- User Capacity:100 APP users ( Card, PIN users)
- IP Rate::IP66 Waterproof
- Card Type::125KHz EM Cards
- Access Mode::FP, Card, Code, Multi Users
- Operating Voltage::-20℃~60℃
- Identification Time::<1s
- Wiring Connections:Relay output, exit button, alarm, door contact
- Warranty:1 Year
- Resolution:1920 x 1080
- Certification:ce
- Data Storage Options:Memory Card
- Application:Outdoor

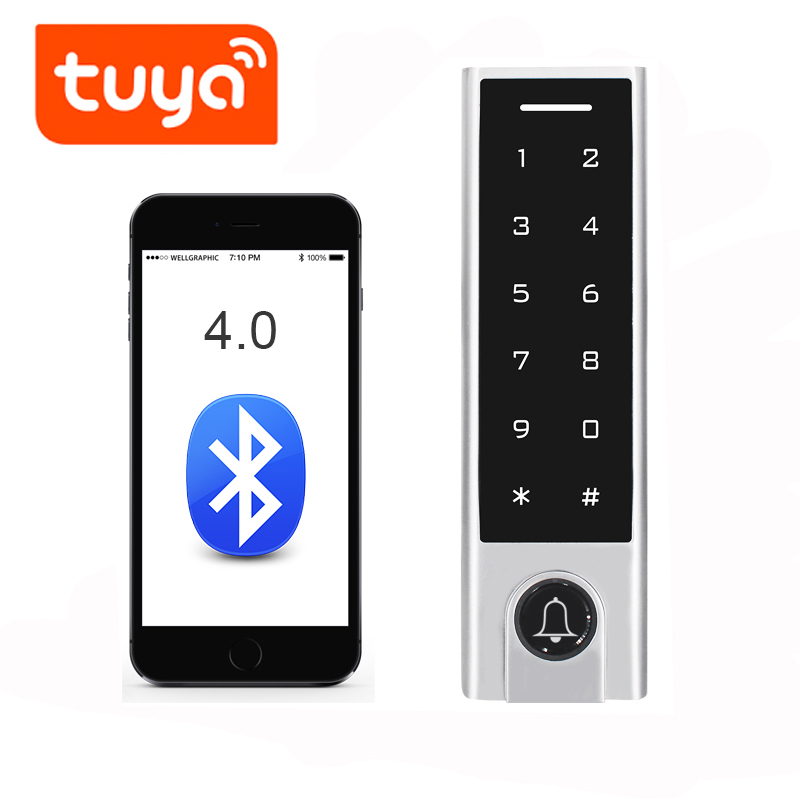

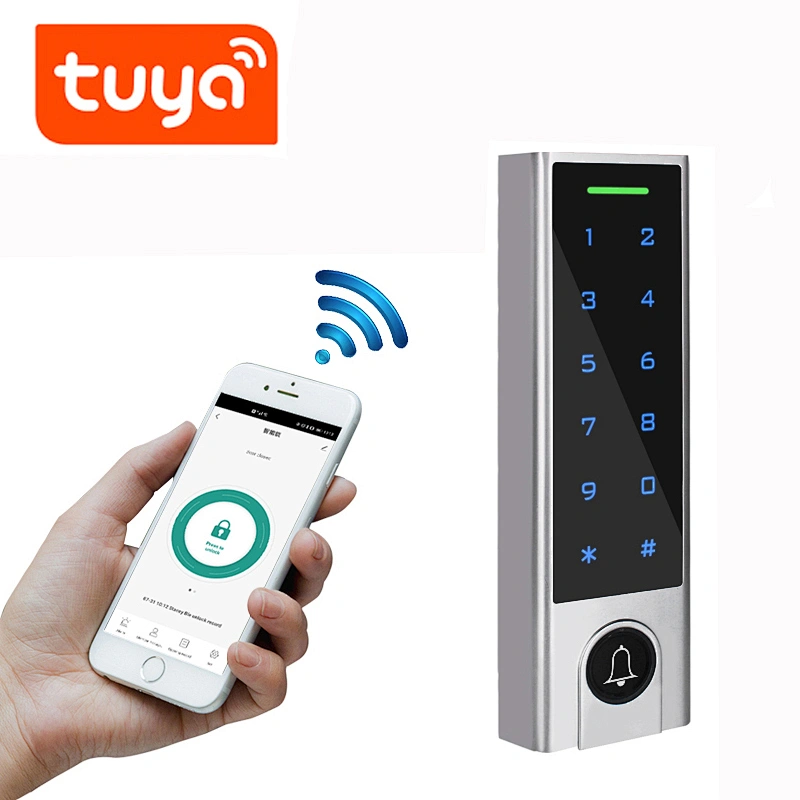

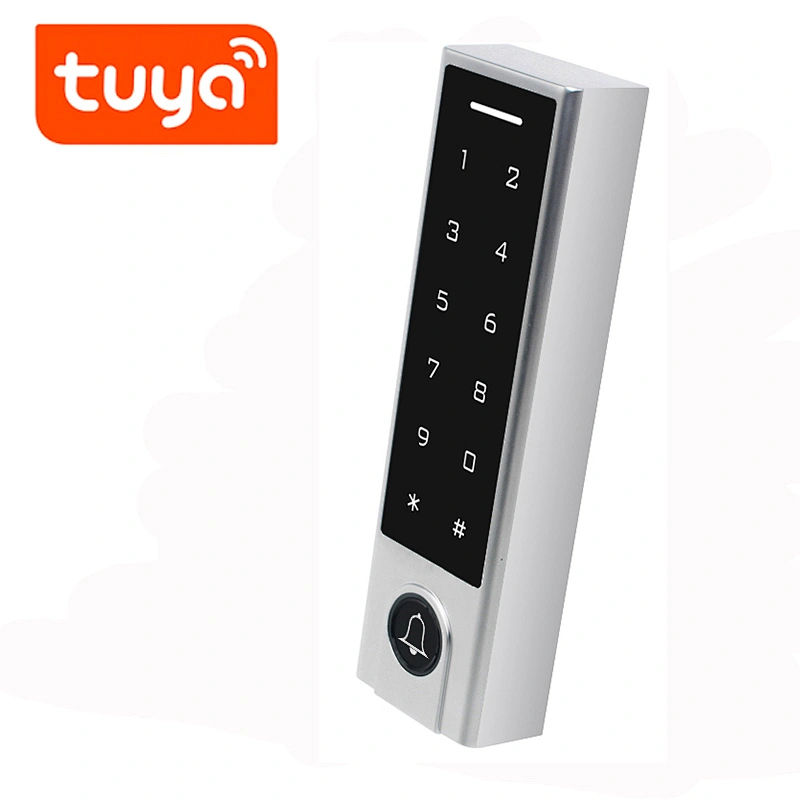

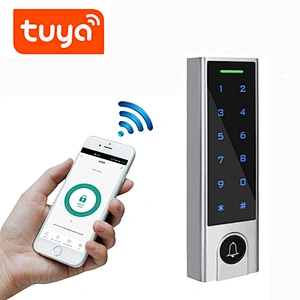

Smart Home System RFID Access Control Keypad with Tuya APP
This kindly of access controller keypad is built in the blue-tooth PCB board and make it smart. It can be controlled by APP.More ways and more easy to access.

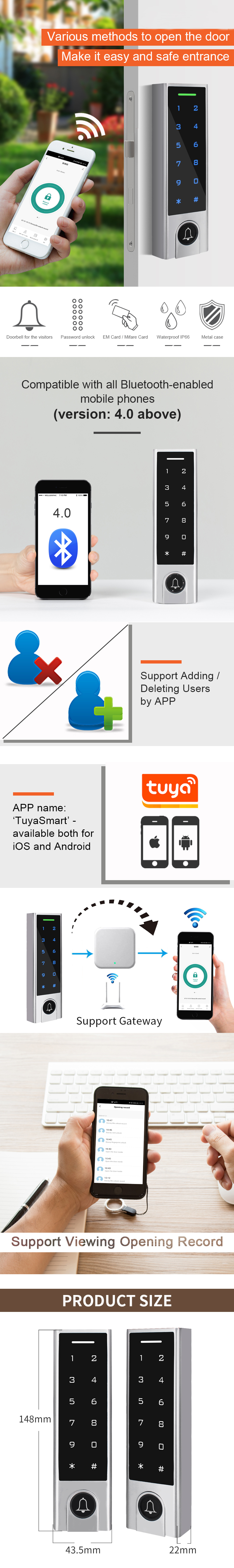

Product Description
Product Description
Tuya WIFI Access control
> Capacitive Fingerprint Sensor,touch keypad
> Waterproof, conforms to IP66
> Metal housing, anti-vandal
> Card type: EM Card or Mifare Card
> iOS and Android available
> Add / Delete users by APP
> Support checking Opening Record
> Support Gateway
> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
Tuya WIFI Access control
> Capacitive Fingerprint Sensor,touch keypad
> Waterproof, conforms to IP66
> Metal housing, anti-vandal
> Card type: EM Card or Mifare Card
> iOS and Android available
> Add / Delete users by APP
> Support checking Opening Record
> Support Gateway
> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
Specification
User Capacity Common User Visitor User Panic User | Hardware User: 1000 APP User: 100 (including 255 fingerprint / card/ PIN users) 988 (100 Fingerprint Users + 888 PIN/Card Users) 10 2 |
PIN Length | 4~6 digits |
Operating Voltage Idle Current Active Current | 12~18V DC ≤ 60mA ≤ 150mA |
Proximity Card Reader Radio Technlogy Read Range | EM or Mifare 125KHz/13.56MHz 2~6cm |
Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
Relay Adjustable Relay Output Time Lock Output Load | One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
Wiegand Interface PIN Output | EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
Environment Operating Temperature Operating Humidity | Meets IP66 -30°C ~ 60°C (-22°F ~ 140°F) 0%RH ~ 98%RH |
Physical Color Dimensions Unit Weight Shipping Weight | Zinc-Alloy Sliver & Black L148 x W43.5 x H22 (mm) 330g 405g |
Company Profile
Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Domestic Market(52.00%),Mid East(20.00%),South America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Africa(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smart cylinder,Electric locks,Access Control,Automatid door operator,RFID readers
4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2020,sell to Domestic Market(52.00%),Mid East(20.00%),South America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Africa(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Smart cylinder,Electric locks,Access Control,Automatid door operator,RFID readers
4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
