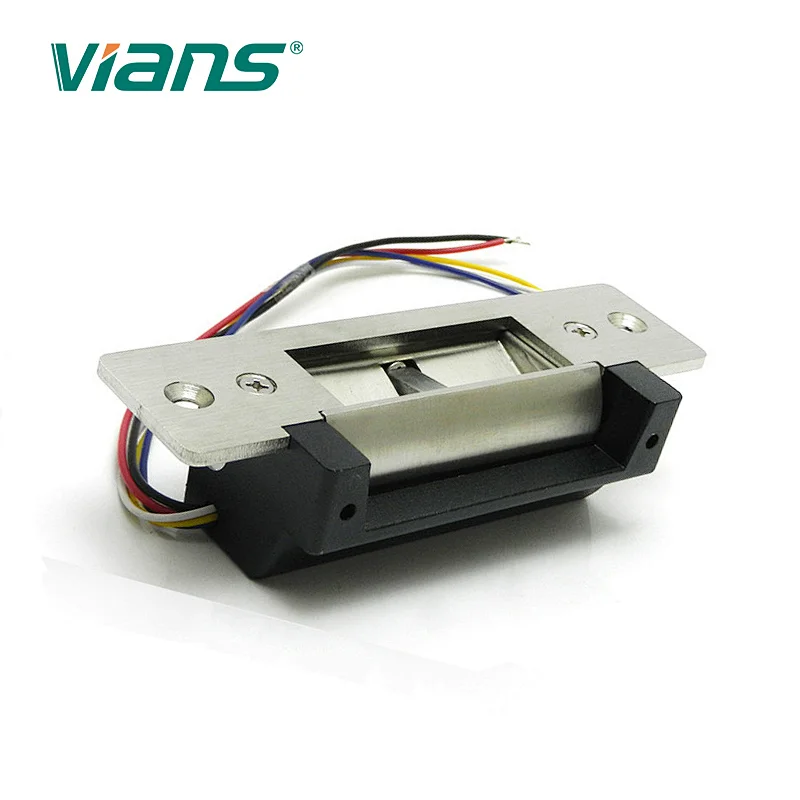

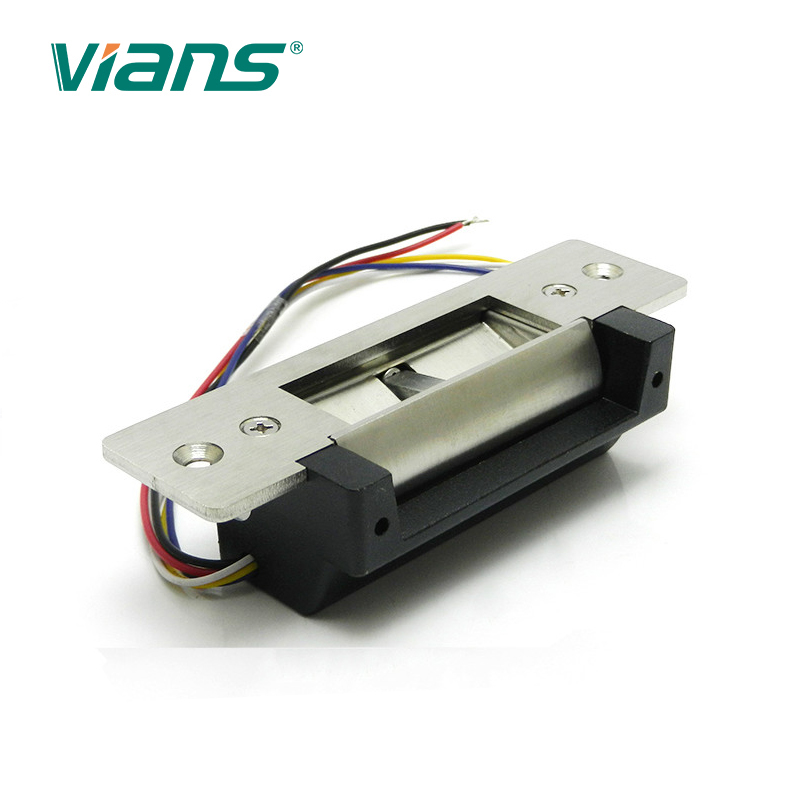

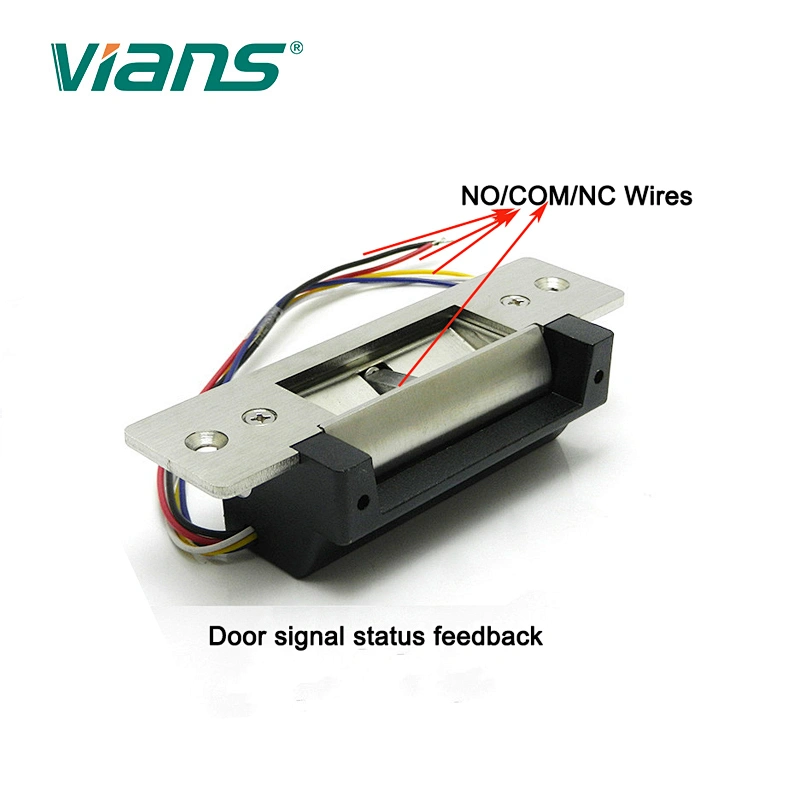

DC12V Stainless Steel Panel Electric Strike Door Lock with Signal Fail safe or Fail Secure

DC12V Stainless Steel Panel Electric Strike Door Lock with Signal Fail safe or Fail Secure

Model NO.: TK-702S
Price:: $ 18.00-20.00 / piece
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:GUA
Brand Name:VIANS
Lock size:150*40*28
Holding force:800KG
Lock structure:Stainless steel
Input voltage:DC12V+-10%
Working current:200mA
Door type applicable:Wooden door/metal door/PVC door

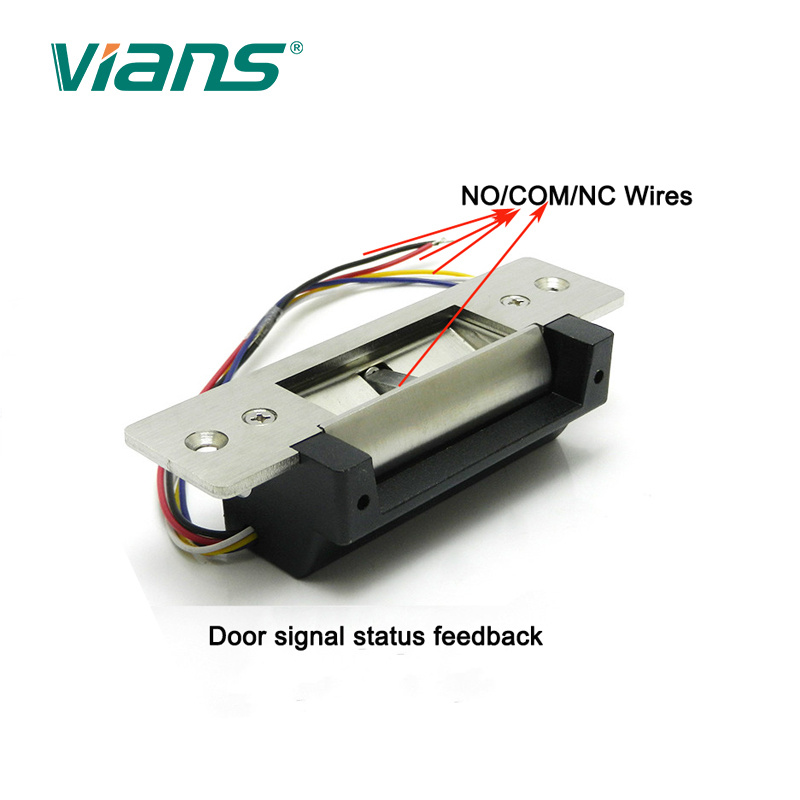

Signal output:Yes
Security type:Lock when power off
Certificate:CE/FCC/ROHS
Warranty:3 Years
Certification:CE,ROHS,FCC

DC12V Stainless Steel Panel Electric Strike Door Lock with Signal Fail safe or Fail Secure

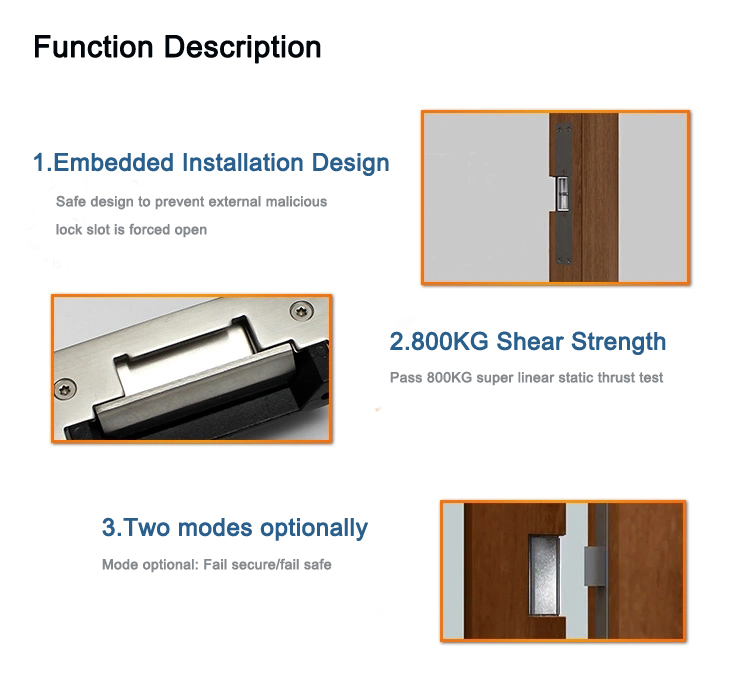

The electric strike lock has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so
the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of
door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long timeworking, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last,with hardness stainless steel material, our stike can bear 800kg impact pressure.

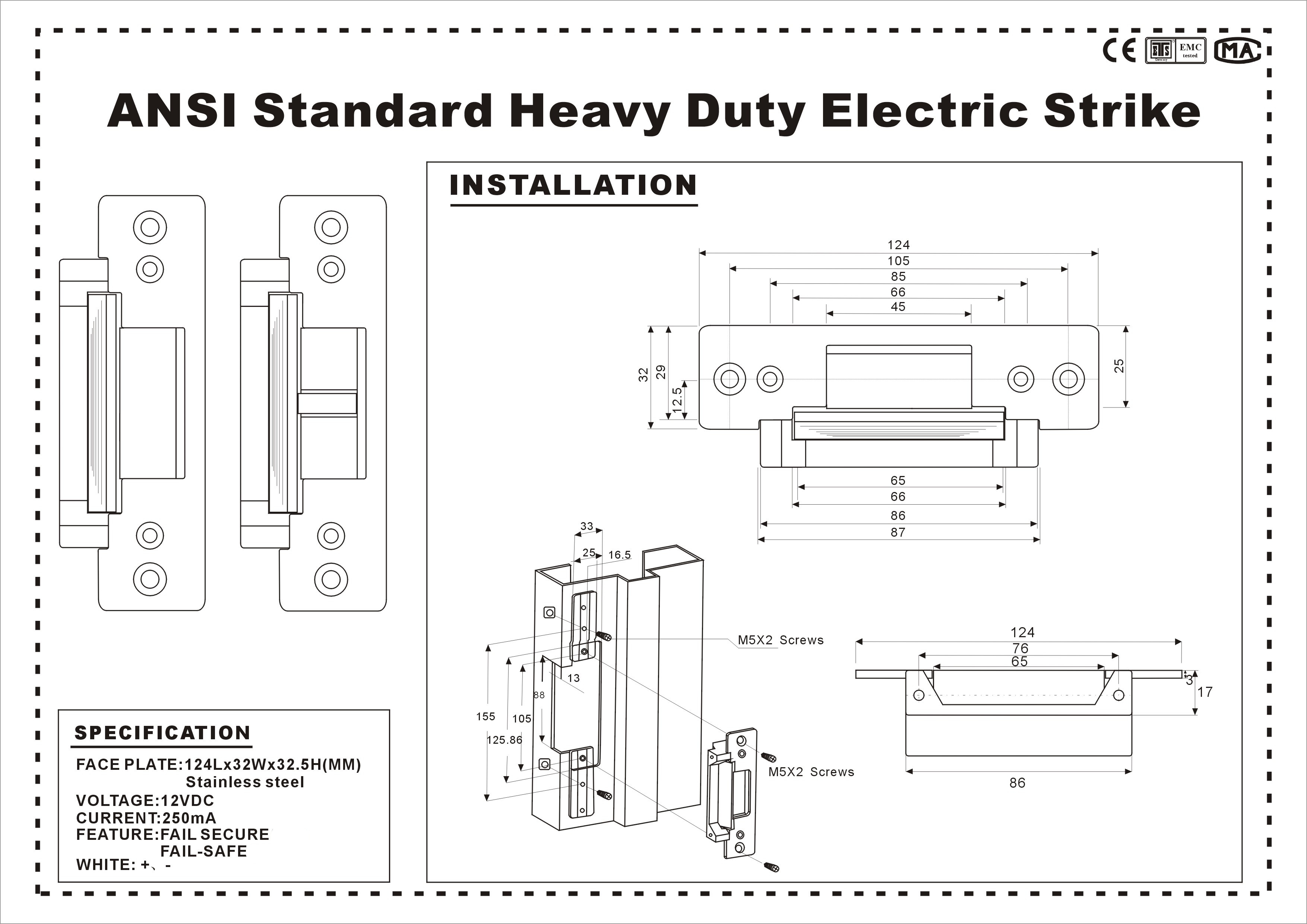

Specification

Product Parameter	Parameter Description
Lock Size	124Lx32Wx33H(mm)
Certificate	CE/FCC/ROHS
Input Voltage	DC12V±10%
Working Current	320mA
Opening Mode	90 Degree Swing Door
Door Type Applicable	Wooden door , Glass door ,Metal door , Fireproof door
Signal output	Yes
Security Type	Fail Safe or Fail secure(Locked when energized / open when energized)
Contact	Dry contact
Surface Temperature	Within +20°C
Material of Housing	Stainless steel
Weight	0.34kg

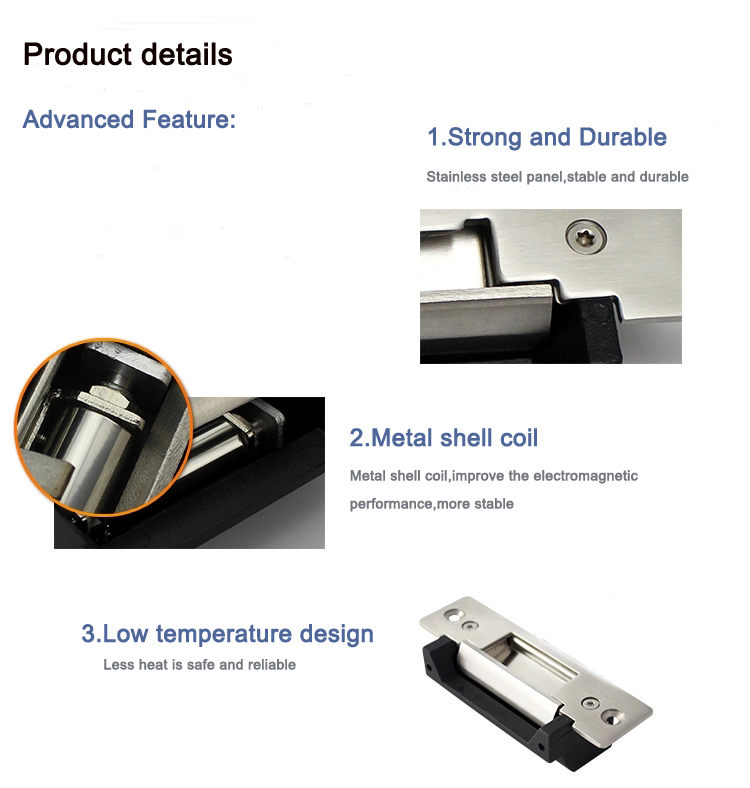

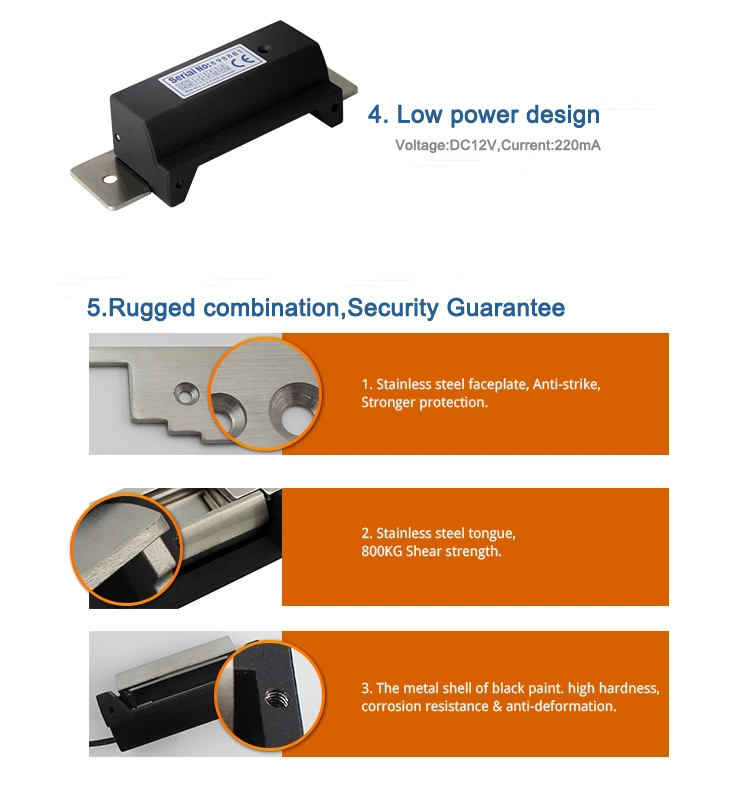

Main advantage Feature

1. Bear 800kg impact pressure.

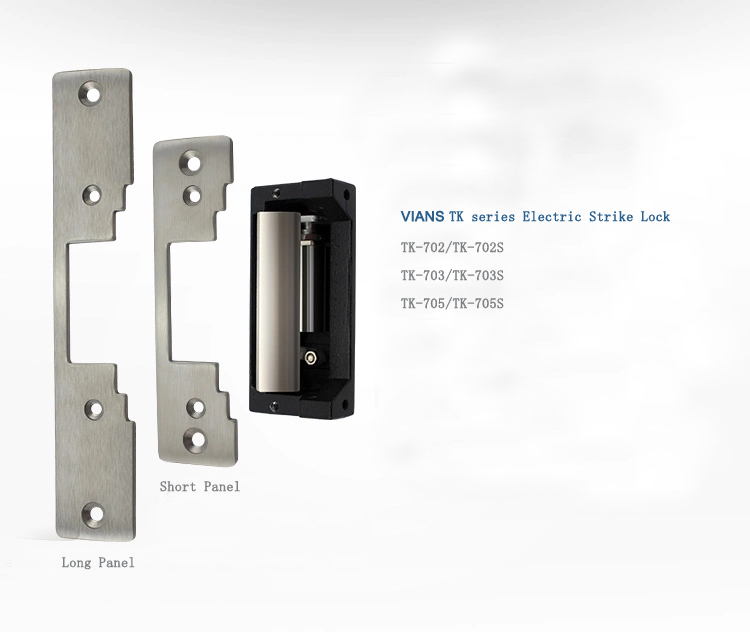

2. Special design, the lock bolt can adjust the distance.

3. It is especially suitable for the metal frame with hole for directly installation.

4. Pass the 500 000 times of aging test.

5. Products pass the CE, FCC and ROHS certification.

6. Fire Test Report.

Product Description

Packing & Delivery

60PCS/CARTON

Company Profile

Shenzhen VIANS Technology Co., Ltd. is specialized in R&D and production of access control Products, including SMART cylinder,Smart Handle lock and Electirc locks Automatic door opener, other access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our workers are well trained and can provide very professional work.QC staffs make piece-by-piece checks for all products, our electric locks passed UL certification. our quality can be ensured to meet international Standards. We are proud of our high quality products and first-rate services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for smart AIOT home and access control products in security sector! Vians will be always devoted to offer good quality and new design products, and brings moreconvenient, more secure complete electric locks to the project application to create much morevalue to our customers. We are commit to produce convenient installation, safety and reliableproducts, this is our product conceptions and also commitment to our customers

FAQ

1. who are we?
We are based in Guangdong, China, start from 2020,sell to Domestic Market(52.00%),Mid East(20.00%),Eastern Europe(10.00%),South America(10.00%),South Asia(5.00%),Africa(3.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Smart cylinder,Electric locks,Access Control,Automatid door operator,RFID readers

4. why should you buy from us not from other suppliers?
We have more than 14 years design and producing experience in the field of electric locks

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
