- Place of Origin:Guangdong, China
- Brand Name:TK
- Model Number:TK-280S
- Certification:UL/CE/MA/FCC

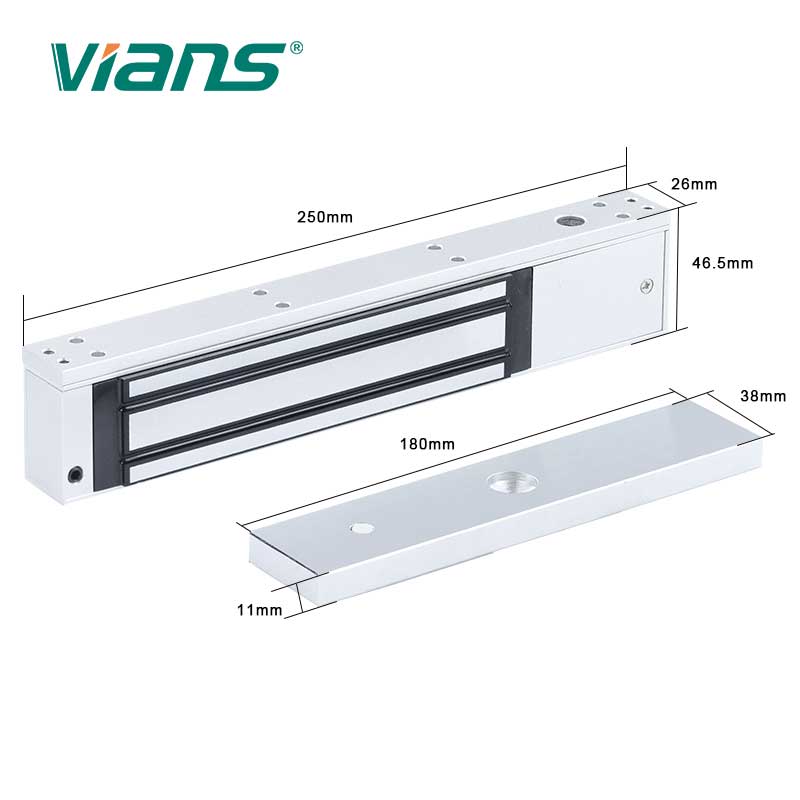

- Lock Size:250L*47W*26H(mm)
- Armature Plate Dimension:180L*38W*11H(mm)
- Holding Force:280kg (600lbs)
- Input Voltage:DC12V or DC24V
- Working Current:12V/480mA 24V/240mA
- Signal:YES
- LED:YES
- Operating Temp:-10~+55℃
- Application Door:Metal doors, wooden doors, fireproof doors, glass door
- Weight:2KG
Product Description
Product Feartures:
1. Powerful static linear holding force.
2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
Specification
Model Number | TK-280 |
Certification | UL/CE/ROHS/FCC/MA |
Product Name | Factory Direct Sale 280KG 600LBS Electromagnetic Door Lock |
Lock Size | 250L*47W*26H(mm) |
Armature Plate Dimension | 180L*38W*11H(mm) |
Holding Force | 280kg (600lbs) |
Input Voltage | DC12V or DC24V |
Working Current | 12V/480mA 24V/240mA |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃ |
Application Door | Metal doors, wooden doors, fireproof doors, glass door |
Weight | 2KG |
