- Place of Origin:China
- Brand Name:TK
- Model Number:TK-500AS
- Lock Size:265L*71W*40H(mm)
- Armature Plate Dimension:185L*60W*13H(mm)
- Holding Force:500kg(1200Lbs)

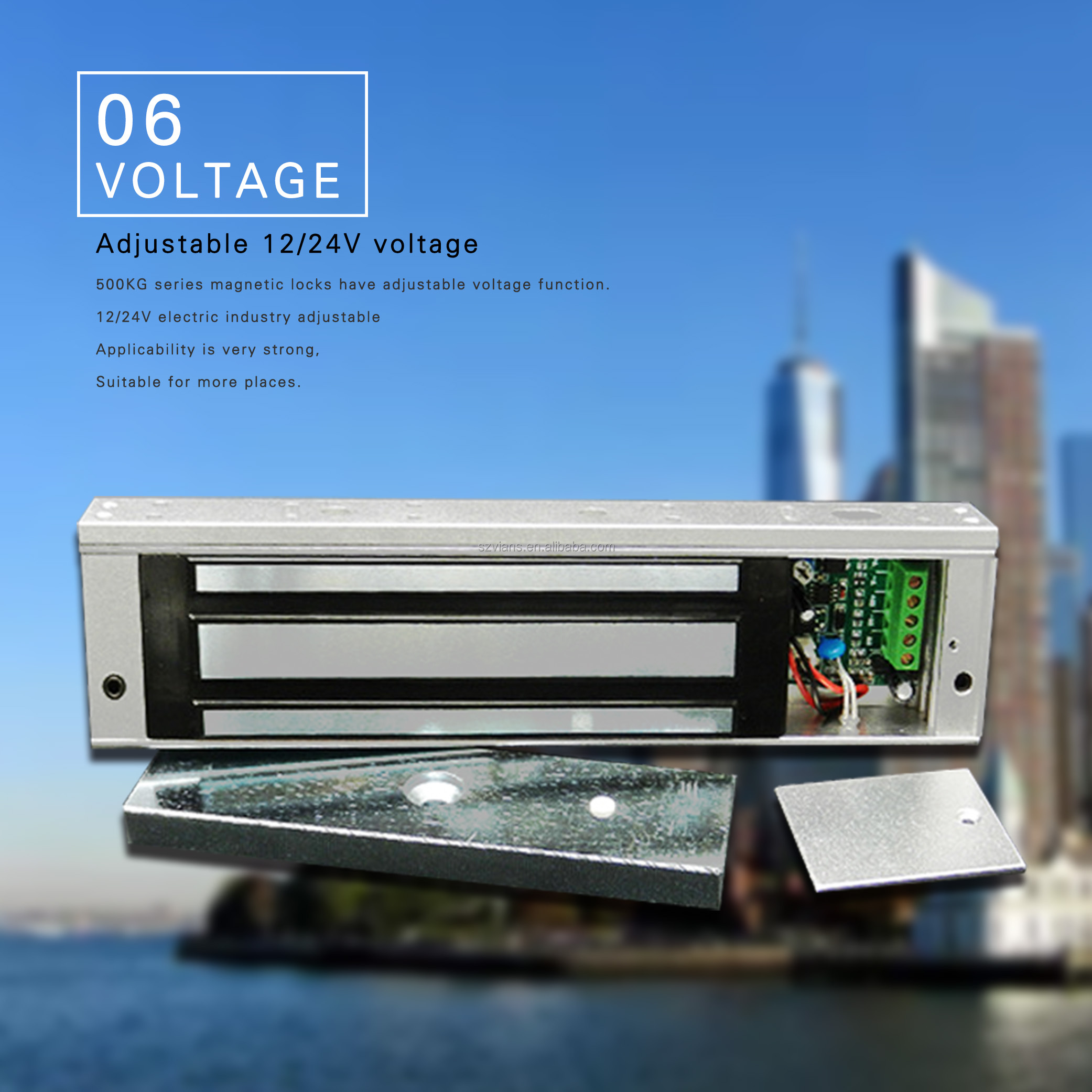

- Input Voltage:DC12V or DC24V
- Working Current:12V/500mA 24V/250mA
- Surface Temp:≤+20℃
- Operating Temp:-10~+55℃
- Application Door:Metal doors, wooden doors, fireproof doors, glass door
- Weight:4.5KG
- Signal:YES
Product Description
Product Feartures:
1. Powerful static linear holding force.
2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.

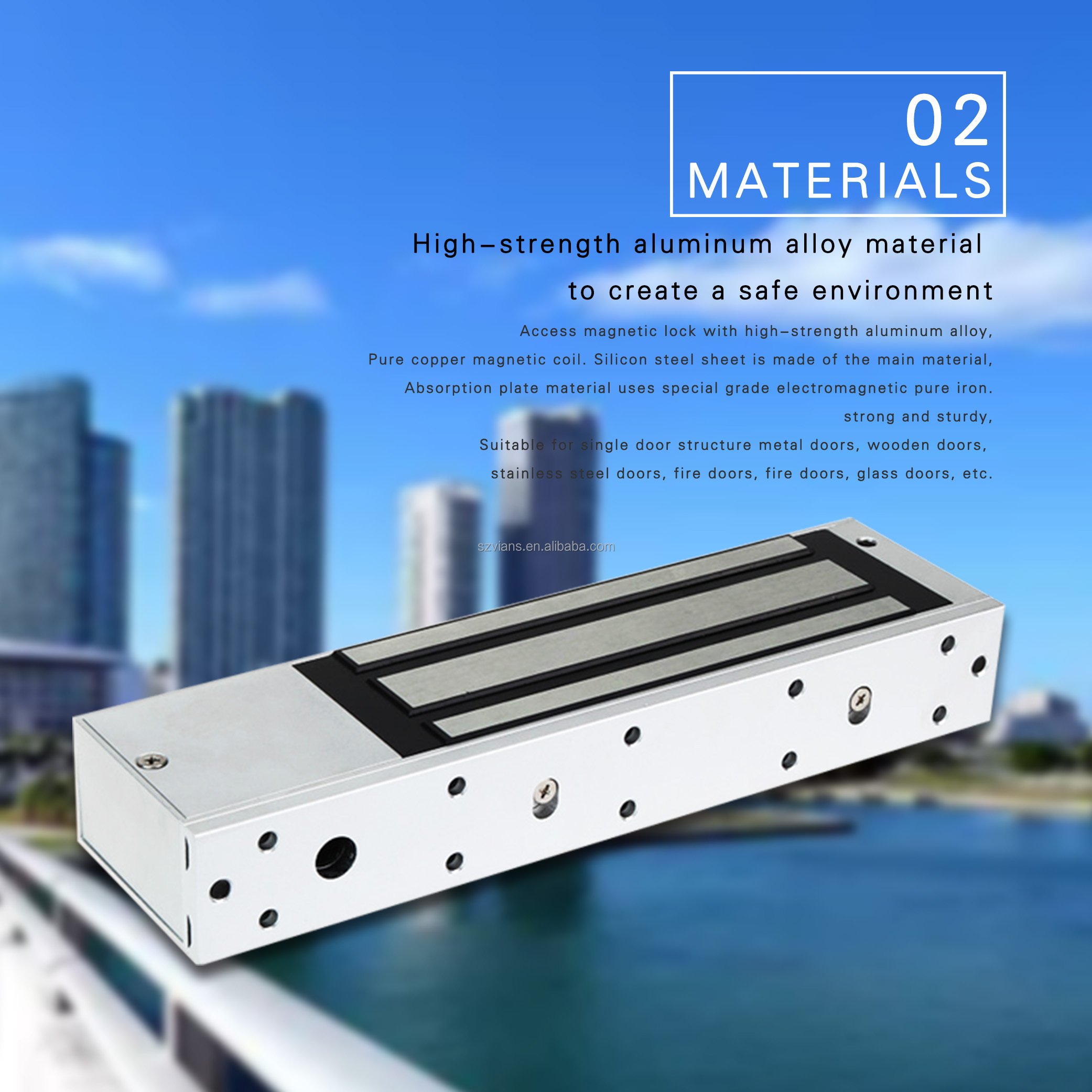

5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
Specification
Model Number | TK-500AS |
Certification | UL/CE/ROHS/FCC/MA |
Product Name | Good Quality Access Control System 500KG/1200LBS Electromagnateic Lock |
Lock Size | 265L*71W*40H(mm) |
Armature Plate Dimension | 185L*60W*13H(mm) |
Holding Force | 500kg(1200Lbs) |
Input Voltage | DC12V or DC24V |
Working Current | 12V/500mA 24V/250mA |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃ |
Application Door | Metal doors, wooden doors, fireproof doors, glass door |
Weight | 4.5KG |
