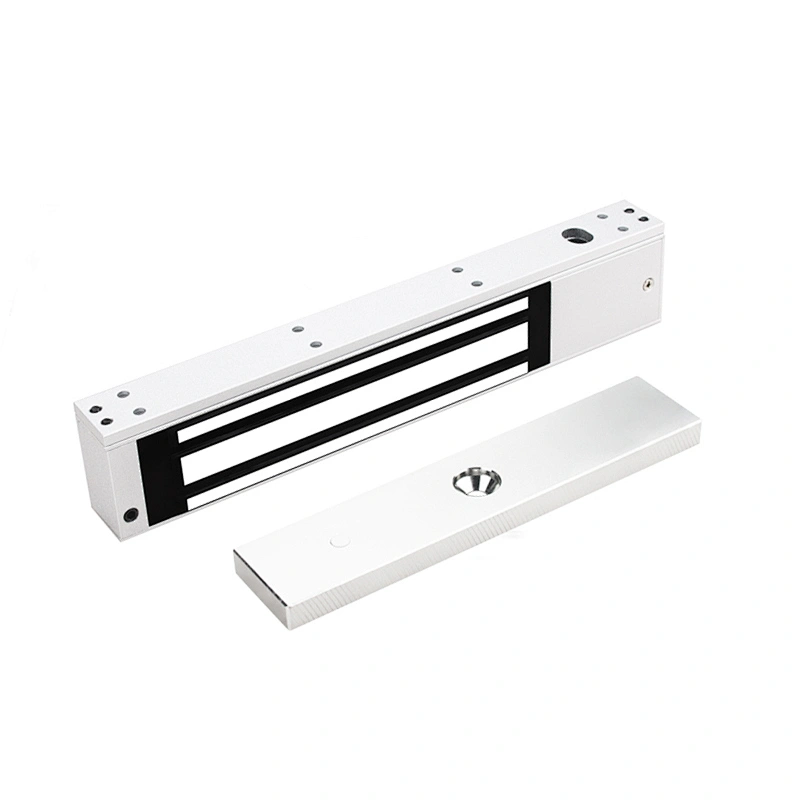

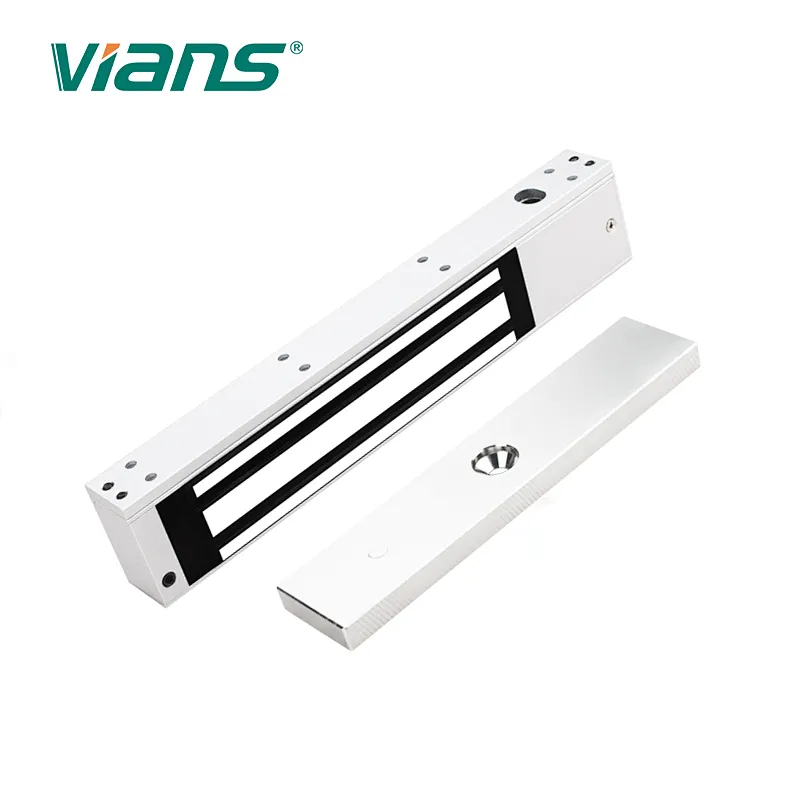

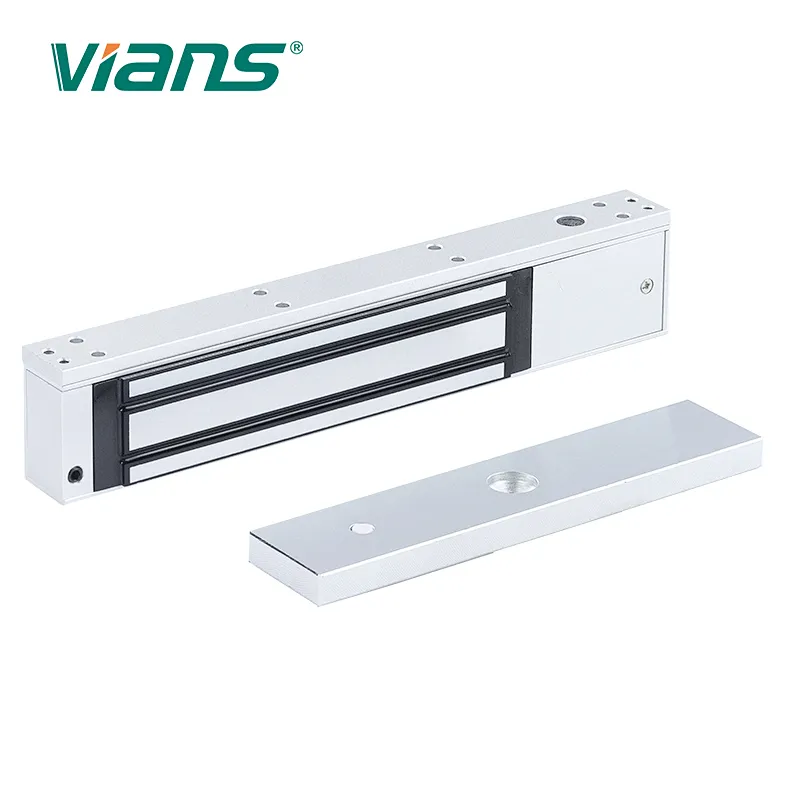

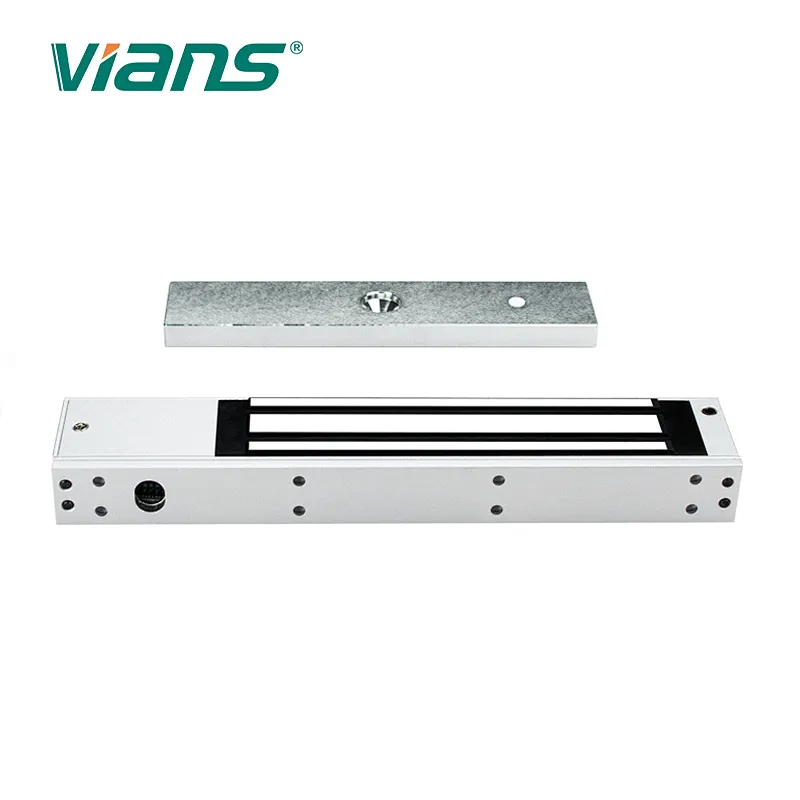

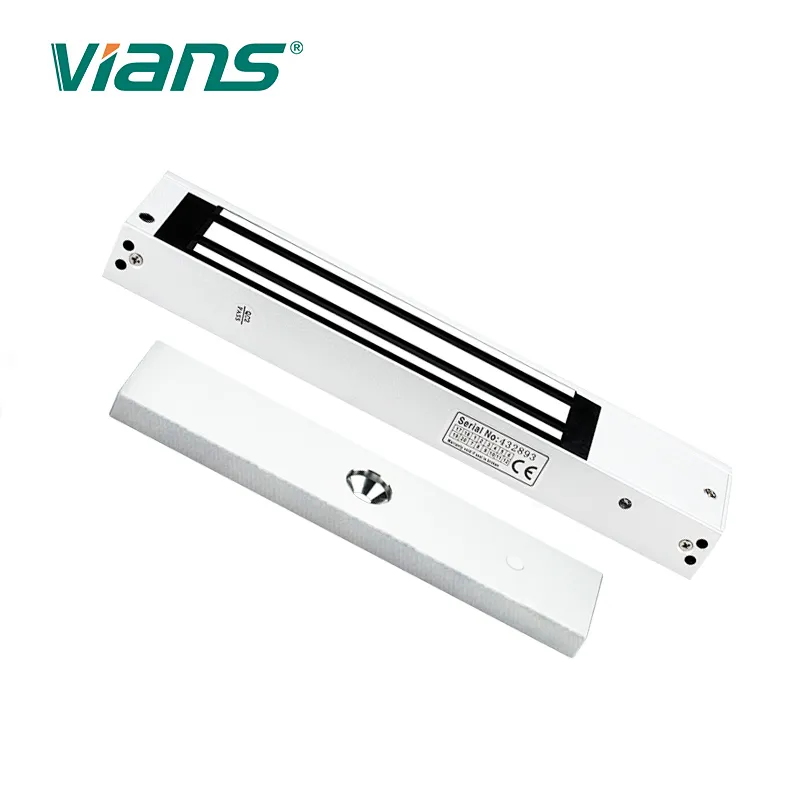

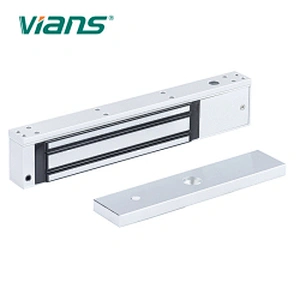

280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock
280KG 600LBS Single door Electromagnetic Door Lock

280KG 600LBS Single door Electromagnetic Door Lock

Model NO.
TK-280A
Minimum order quantity
1 piece
Quantity:
  • Place of Origin:China
  • Brand Name:Vians
  • Model Number:TK-280
  • Certification:CE/ROHS/FCC
  • Product Name:Factory Direct Sale 280KG 600LBS Electromagnetic Door Lock
  • Lock Size:250L*47W*26H(mm)
  • Armature Plate Dimension:180L*38W*11H(mm)
  • Holding Force:280kg (600lbs)
  • Input Voltage:DC12V or DC24V
  • Working Current:12V/480mA 24V/240mA
  • Surface Temp:≤+20℃
  • Operating Temp:-10~+55℃
  • Application Door:Metal doors, wooden doors, fireproof doors, glass door
  • Weight:2KG

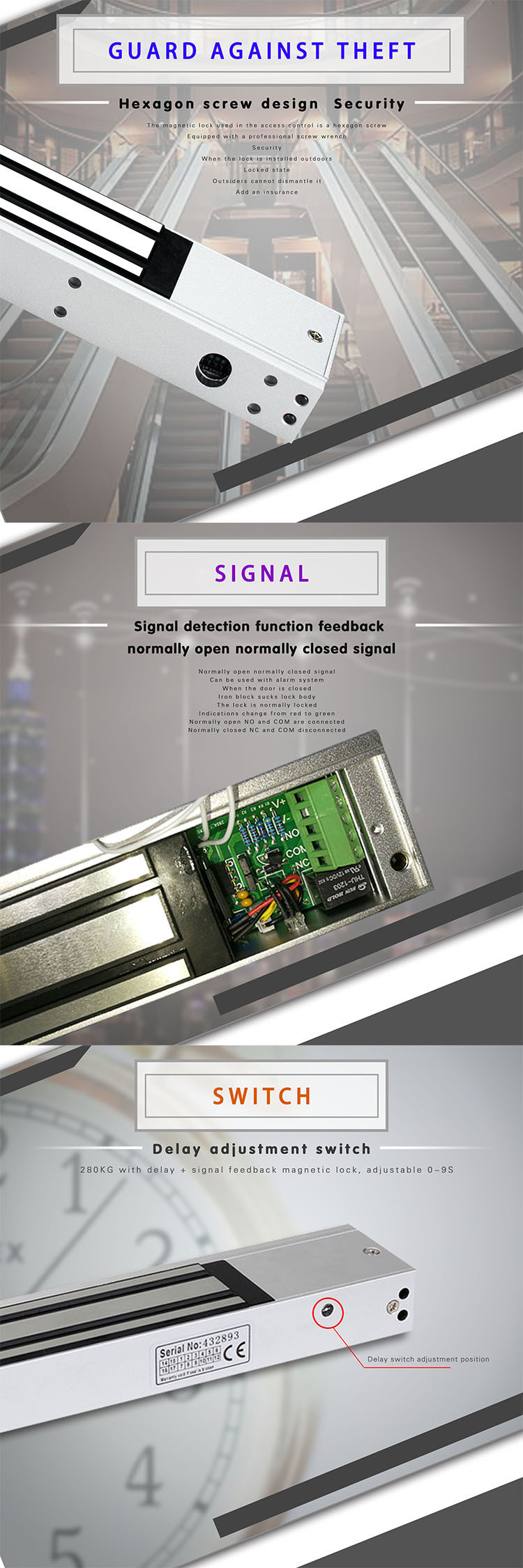

Product Description

Product Feartures:

1. Powerful static linear holding force.2. Dual voltage 12 or 24 VDC(optional).
3. Built-in reverse current protection device (Mov).
4. Anti residual magnetism design, anti-wear manufacturing materials.
5. Shell is made of high-strength aluminum alloy, Anodized.
6. Increase the holding force, dual insulative hosing.
7. MA certified products of China / ce CERTIFICATION OF eu.
8. Complete electromagnetic suction working no mechanical failure.
Specification
Model Number
TK-280
Certification
UL/CE/ROHS/FCC/MA
Product Name
Factory Direct Sale 280KG 600LBS Electromagnetic Door Lock
Lock Size
250L*47W*26H(mm)
Armature Plate Dimension
180L*38W*11H(mm)
Holding Force
280kg (600lbs)
Input Voltage
DC12V or DC24V
Working Current
12V/480mA 24V/240mA
Surface Temp
≤+20℃
Operating Temp
-10~+55℃
Application Door
Metal doors, wooden doors, fireproof doors, glass door
Weight
2KG
